alternator and GR6 regulator connexions

2 pictures on this page - scroll down to see the rest


alternator and regulator wiring

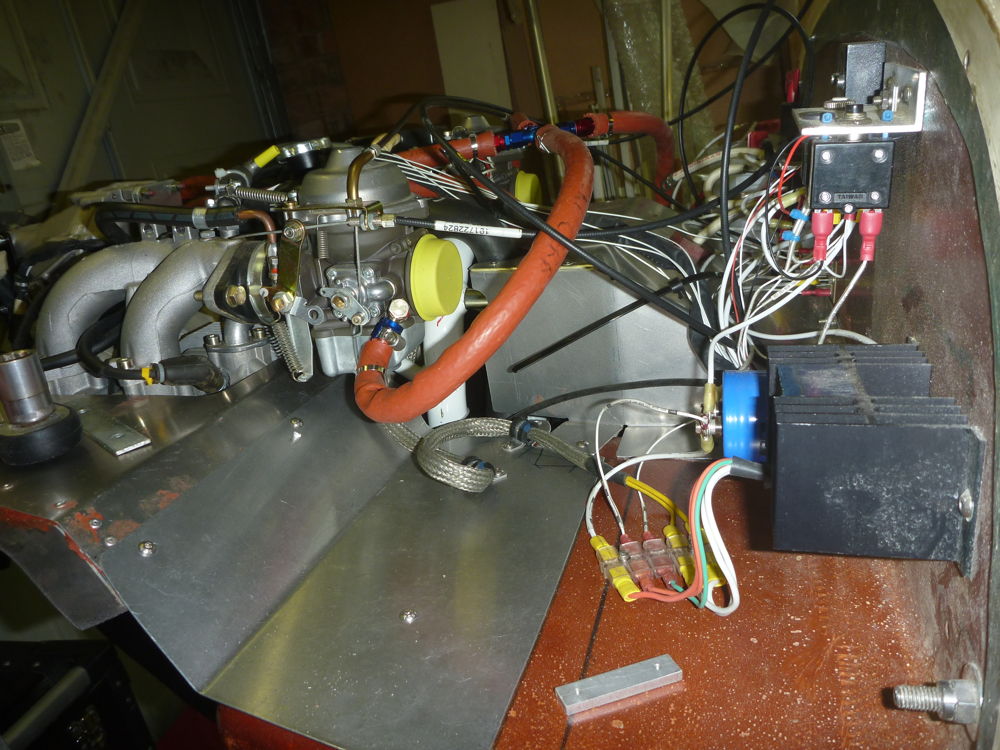

alternator and regulator wiring: 2020-04-29 Panasonic DMC-FT1

The alternator cable and other wires connected to the GR6 regulator terminal block. The blade-connector terminal block is in position to be screwed down, but the nutplate (lying on the footwell) has yet to be fitted inside the footwell. The alternator cable is secured to the footwell in 2 places with cushion clamps.


alternator and regulator wiring

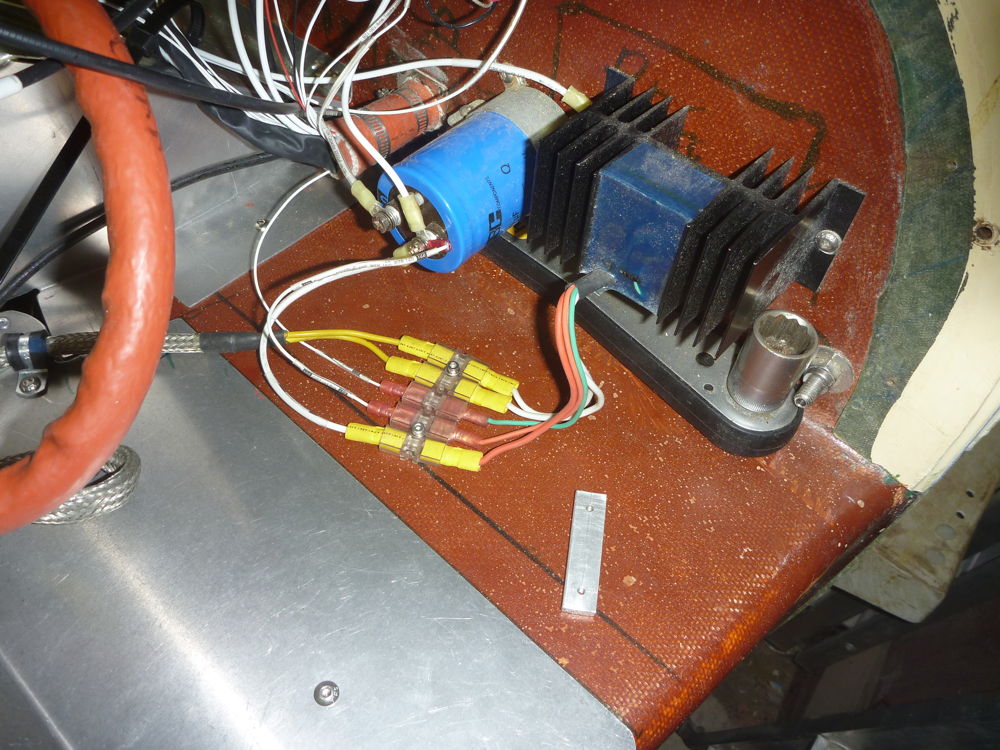

alternator and regulator wiring: 2020-04-29 Panasonic DMC-FT1

The alternator cable and other wires connected to the GR6 regulator terminal block. The blade-connector terminal block is in position to be screwed down, but the nutplate (lying on the footwell in the foreground) has yet to be fitted inside the footwell. The alternator cable was rather long, but rather than shorten it, I looped it and secured to the footwell in 2 places with cushion clamps.
