port aileron balance after sanding underside

3 pictures on this page - scroll down to see the rest


port aileron balancing

port aileron balancing: 2017-11-28 Panasonic DMC-FT1

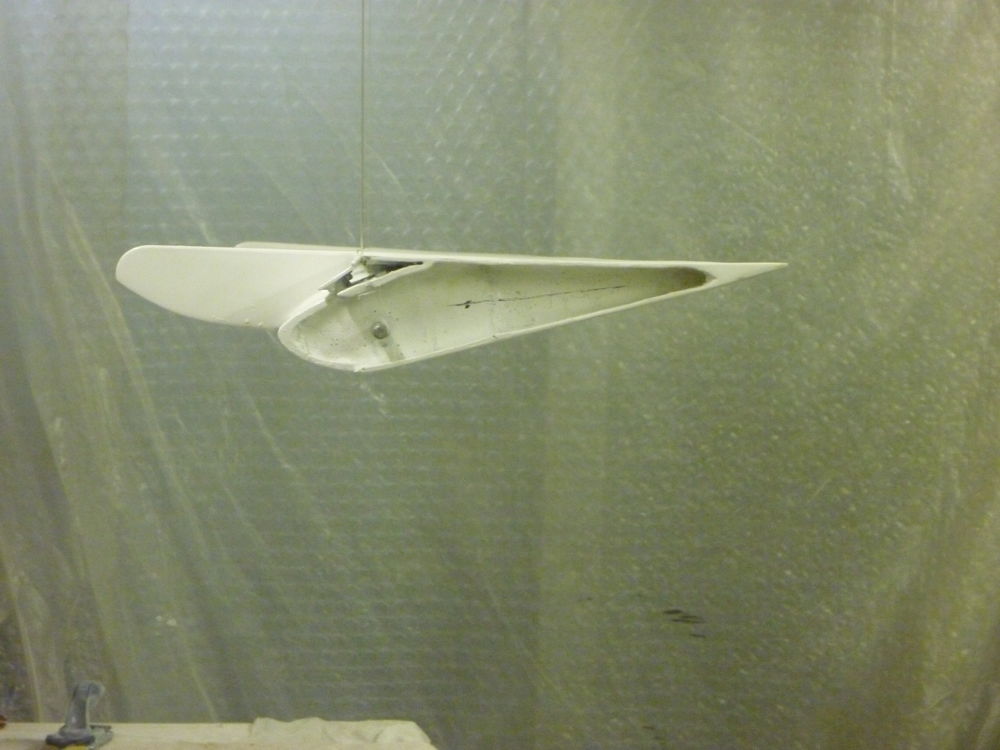

The port aileron hung by the hinge-pins to check its balance after sanding off most of the paint and filler on the undersurface. I've drawn a line on the root to mark as well as I can the centreline between the upper & lower surfaces, which needs to be horizontal for proper balance.


port aileron balancing

port aileron balancing: 2017-11-28 Panasonic DMC-FT1

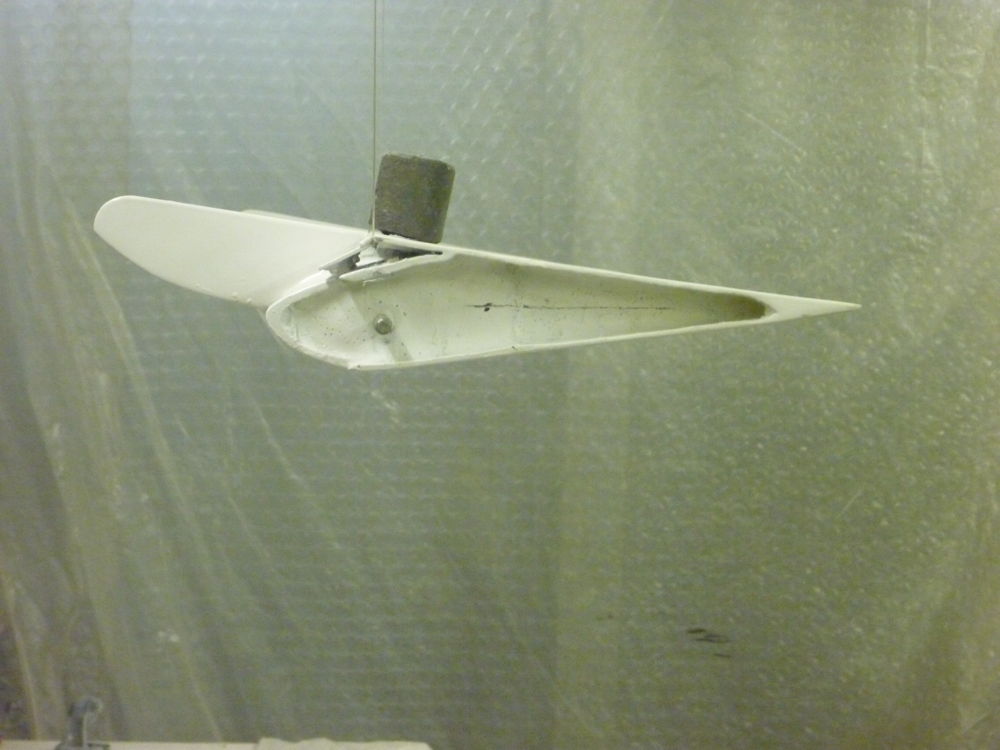

The port aileron hung by the hinge-pins to check its balance after sanding off most of the paint and filler on the undersurface. I've added a lead weight aft of the hinge line to bring the line drawn on the root horizontal - the condition of proper balance.


port aileron balancing

port aileron balancing: 2017-11-28 Panasonic DMC-FT1

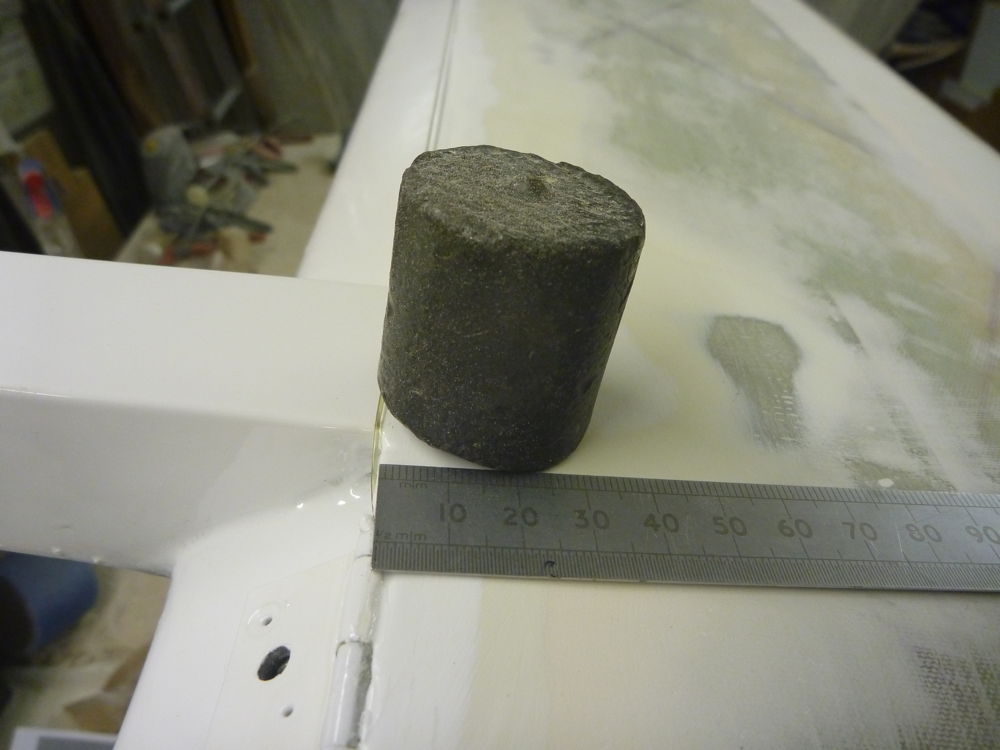

The location of the lead weight required to bring the port aileron into proper balance after sanding off the underside paint and filler.
