XTW15 magnetic retainer
|
|
XTW15 magnetic retainer |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest

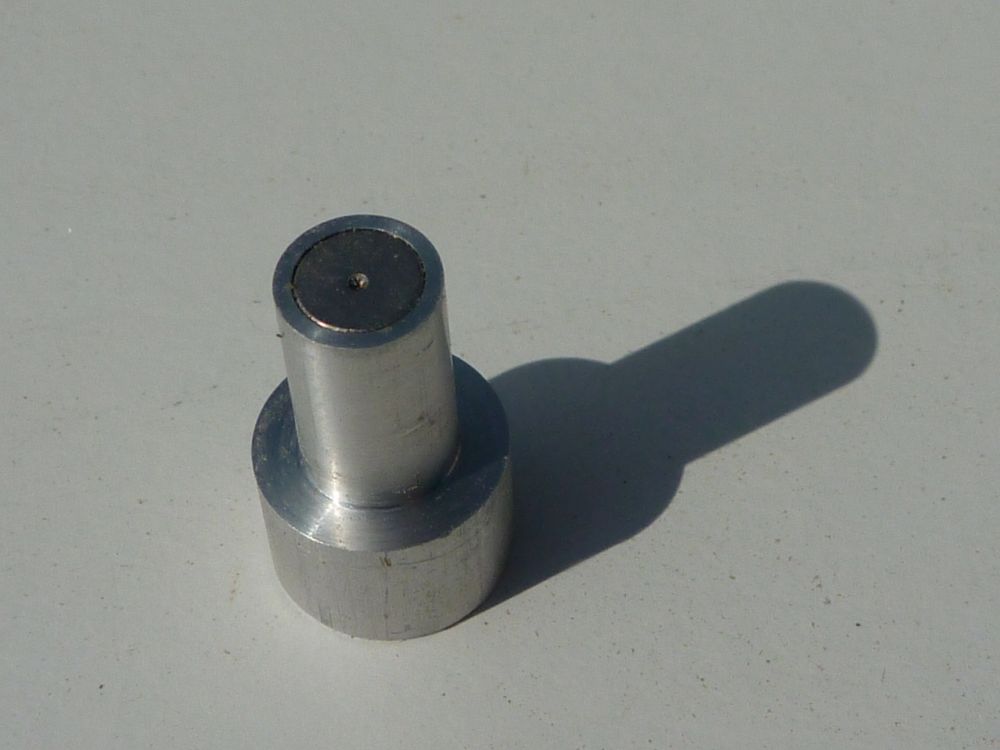

XTW15 magnetic retainer: 2013-09-05
Panasonic Lumix DMC-FT1
A piece of aluminium round bar machined to accept a small magnet, to retain the XTW15 plate against the XTW06 arm while bonding XTW15 to the composite mounting pad. The bar is turned down to fit the hole in XTW06, and a recess is bored in the end to fit the button magnet.

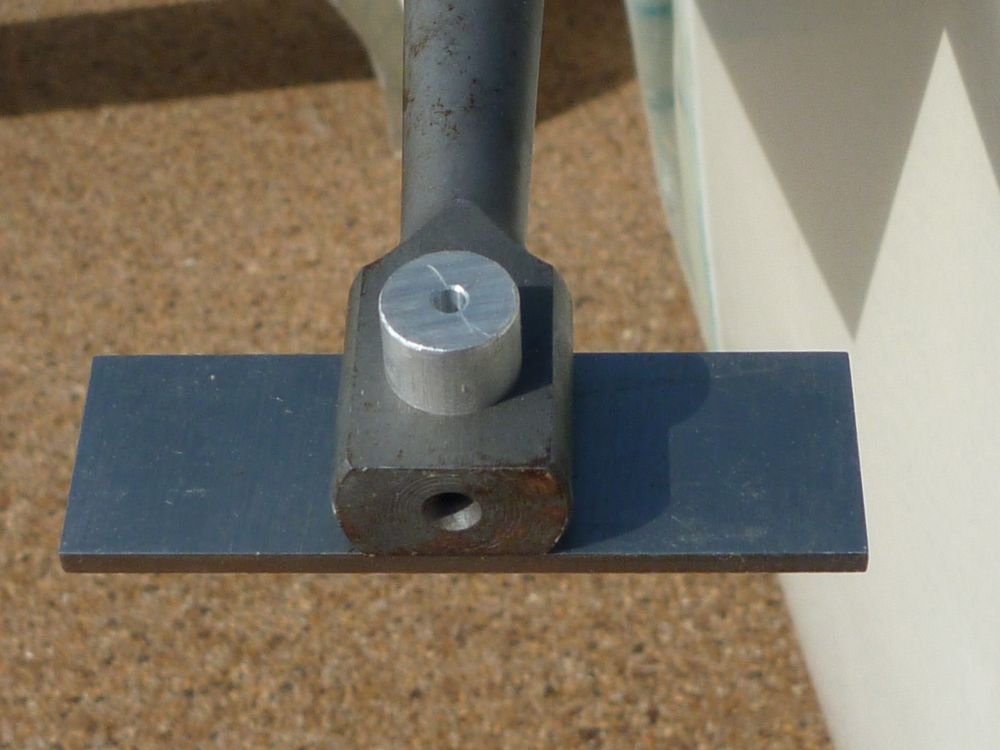

XTW15 magnetic retainer in use: 2013-09-05
Panasonic Lumix DMC-FT1
The magnetic fixture holding the XTW15 plate against the end of the XTW06 arm.
