W35 gussets on tie-bar
|
|
W35 gussets on tie-bar |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest

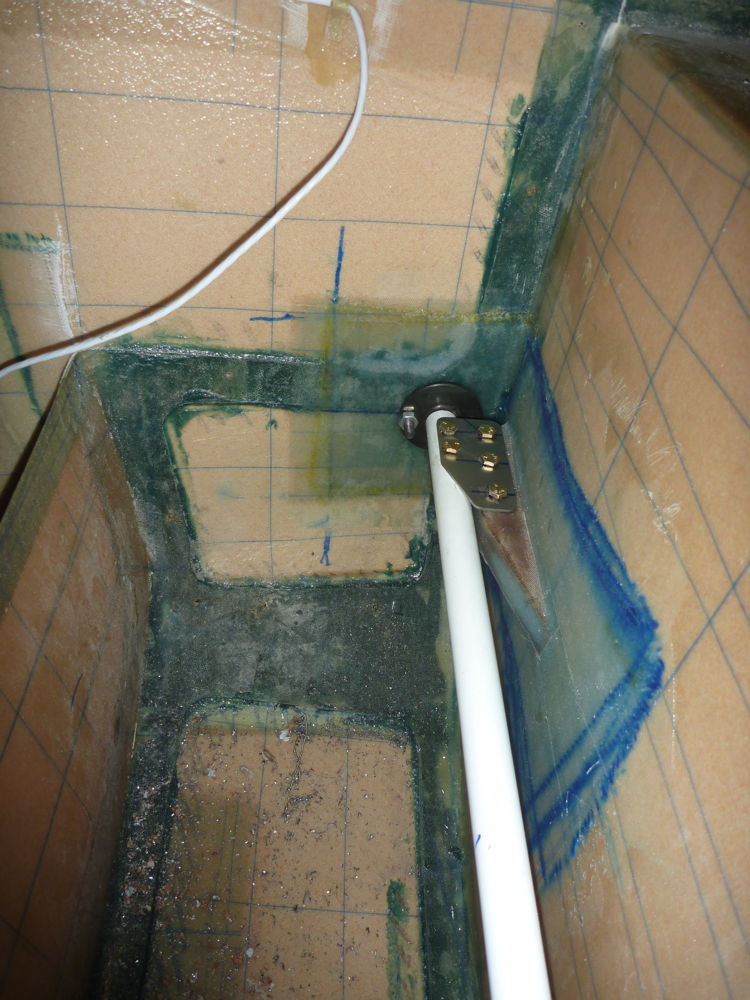

starboard gusset plate: 2015-01-08
Lumix DMC-FT1
The gusset plate fitted at the starboard end of the tie-bar, to connect it to the fuel tank bulkhead via the tapered plywood piece and its BID overlay.

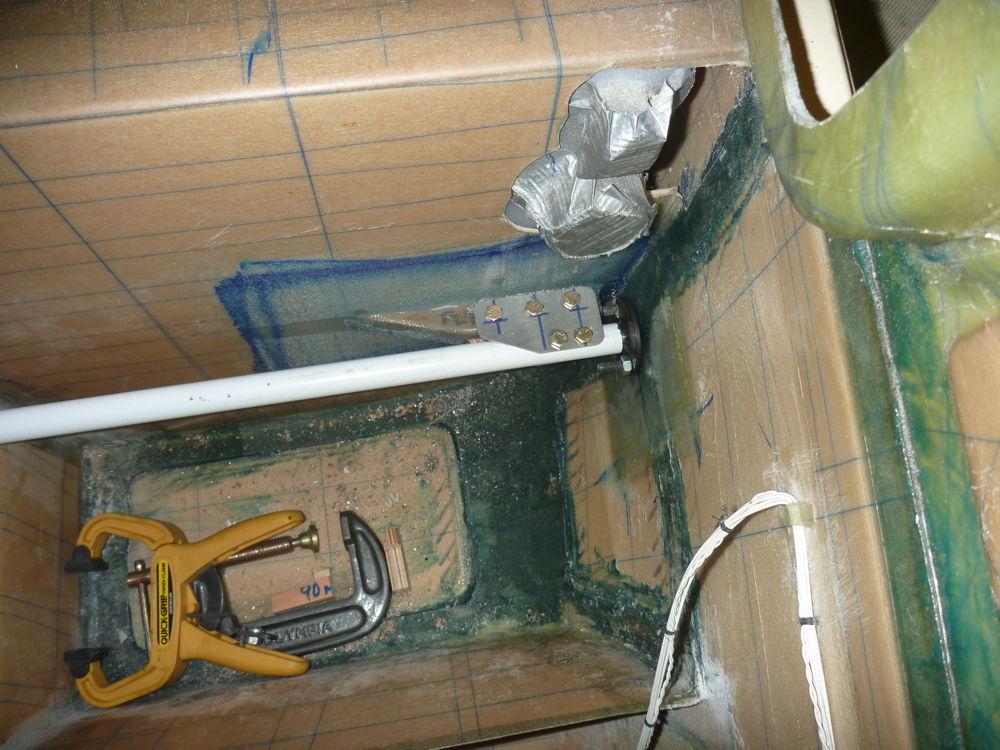

port gusset plate: 2015-01-08
Lumix DMC-FT1
The gusset plate fitted at the port end of the tie-bar, to connect it to the fuel tank bulkhead via the tapered plywood piece and its BID overlay.
