Toroid on USB wiring
|
 |
Toroid on USB wiring
magneto, starter & USB wiring: 2021-01-16 Panasonic DMC-FT1

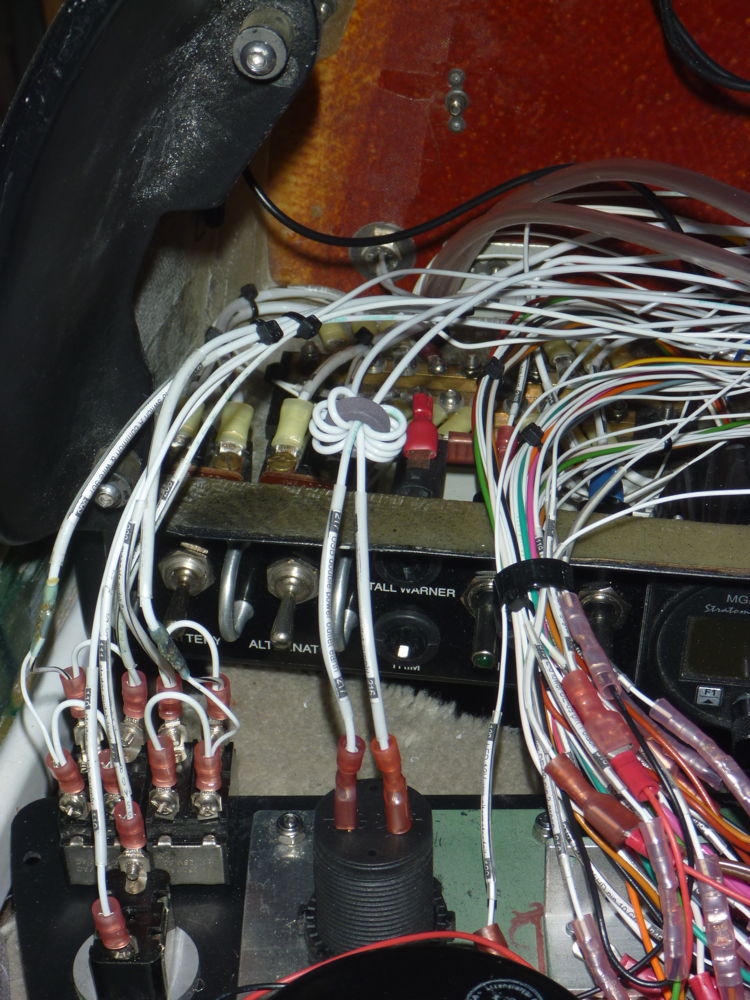

Wiring completed on the starter switch (bottom left), magneto switches (left, beyond the starter switch) and the dual USB power outlet (centre) for the Dynon D2 and Airbox Aware. Note that the USB supply wires pass several times through a ferrite toroid, in the hope of minimising noise transmission to the rest of the wiring from the 12V-to-5V converter in the USB socket. Ideally I should have got the toroid nearer to the USB unit but didn't engage brain soon enough. I did a better job later on the wires from the prop controller to the slip-ring brushes.
|
This page last updated 2021-02-08.
