fuel hose, tunnel to firewall
|
 |
fuel hose, tunnel to firewall
fuel hose in tunnel: 2019-06-05 Panasonic DMC-FT1

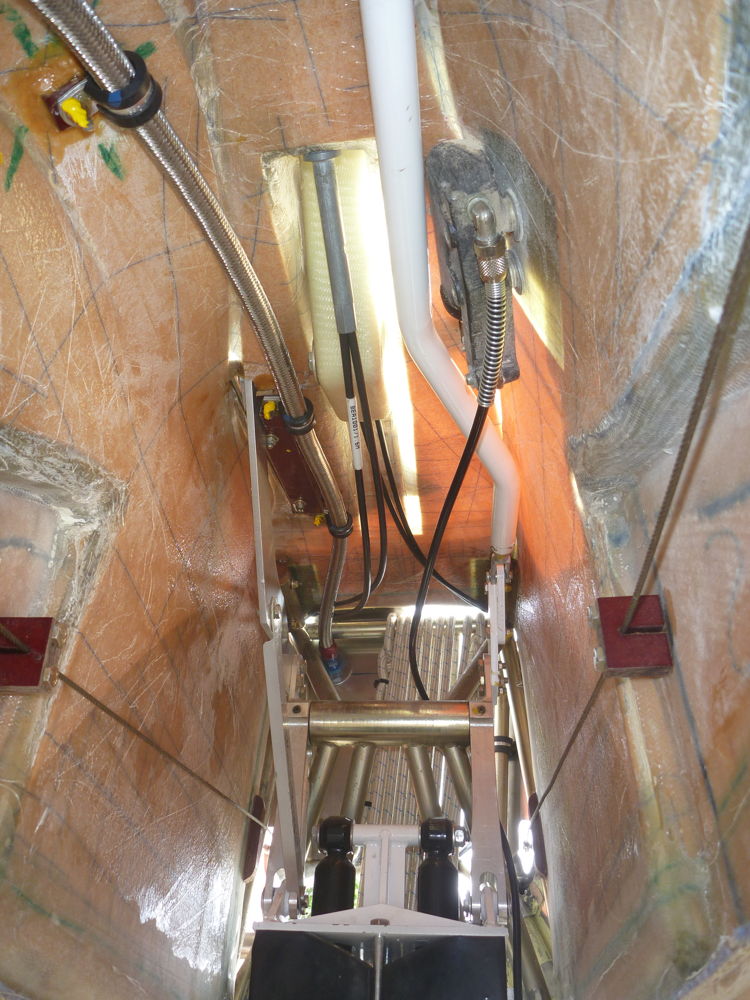

The fuel hose routing in the tunnel, looking up and forward. The AN837-6D elbow is fitted on the stainless steel firewall and the hose is connected to it. Note that the elbow is near the port side of the firewall, to keep clear of the bungee. Forward of the retract lever, the hose bends outboard to mate with the elbow.
|
