TP14 split pins

2 pictures on this page - scroll down to see the rest


TP14 split pins

TP14 split pins: 2011-11-25

Lumix DMC-FT1

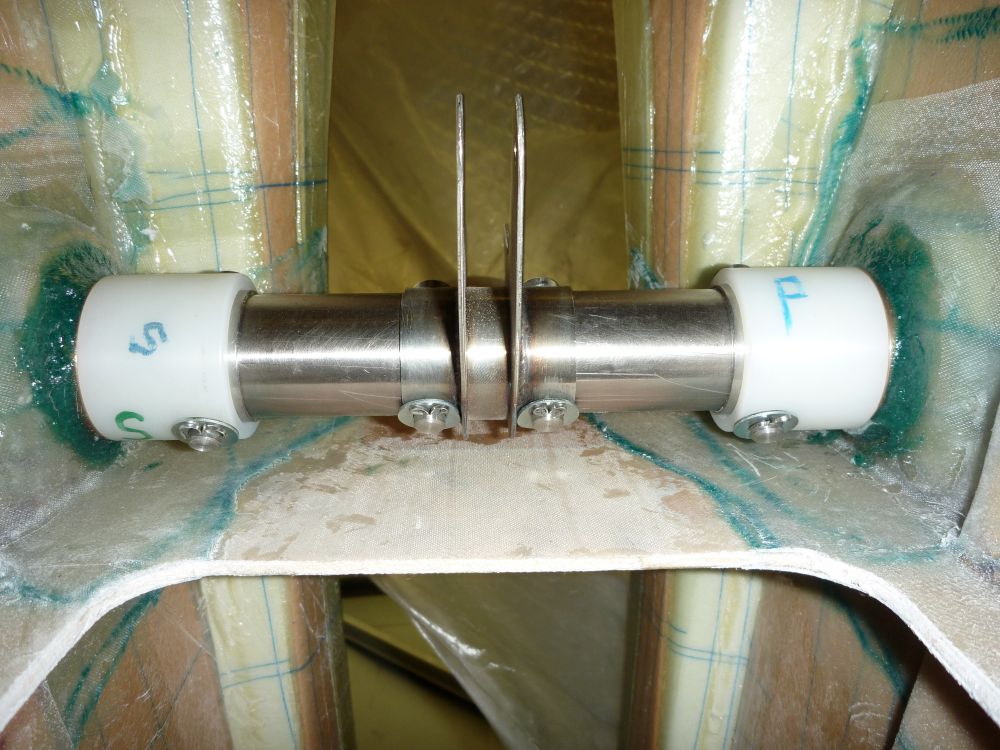

The split pins fitted to retain the TP14 pins in TP9. This was quite easy to do as the tube could be rotated for reasonable access.


TP14 split pins

TP14 split pins: 2011-11-25

Lumix DMC-FT1

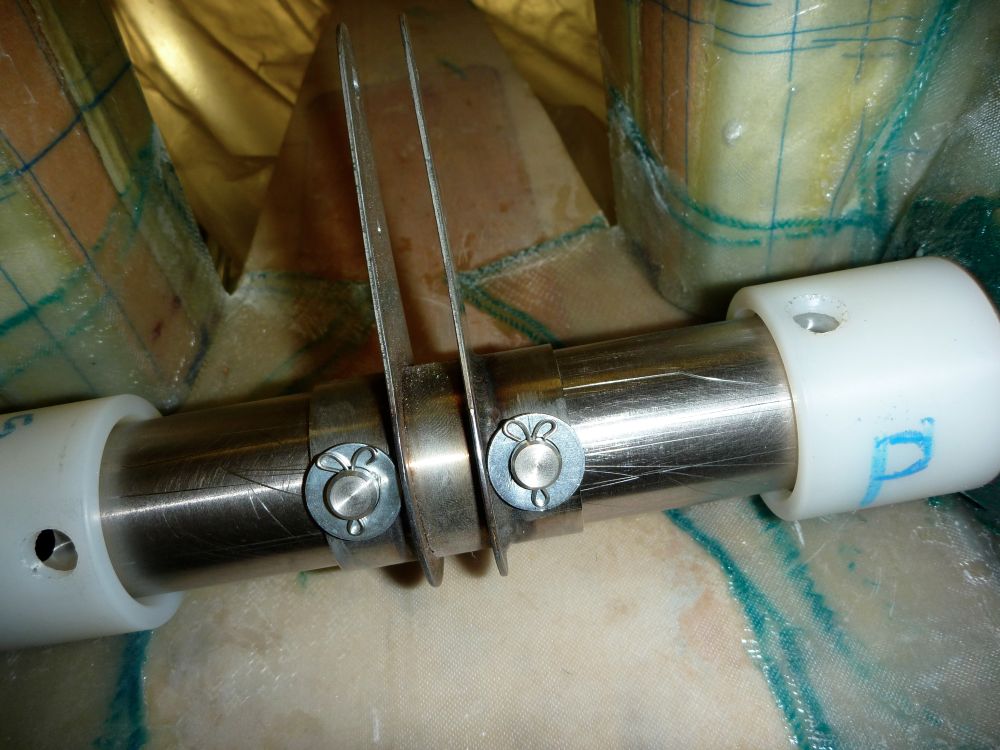

The split pins fitted to retain the TP14 pins in the port & starboard TP10. Because rotation of the assembly was limited by TP12 contacting the outside of the fuselage, the split-pins were a bit more tedious to fit than those for TP9.
