rubbing blocks on tower

3 pictures on this page - scroll down to see the rest

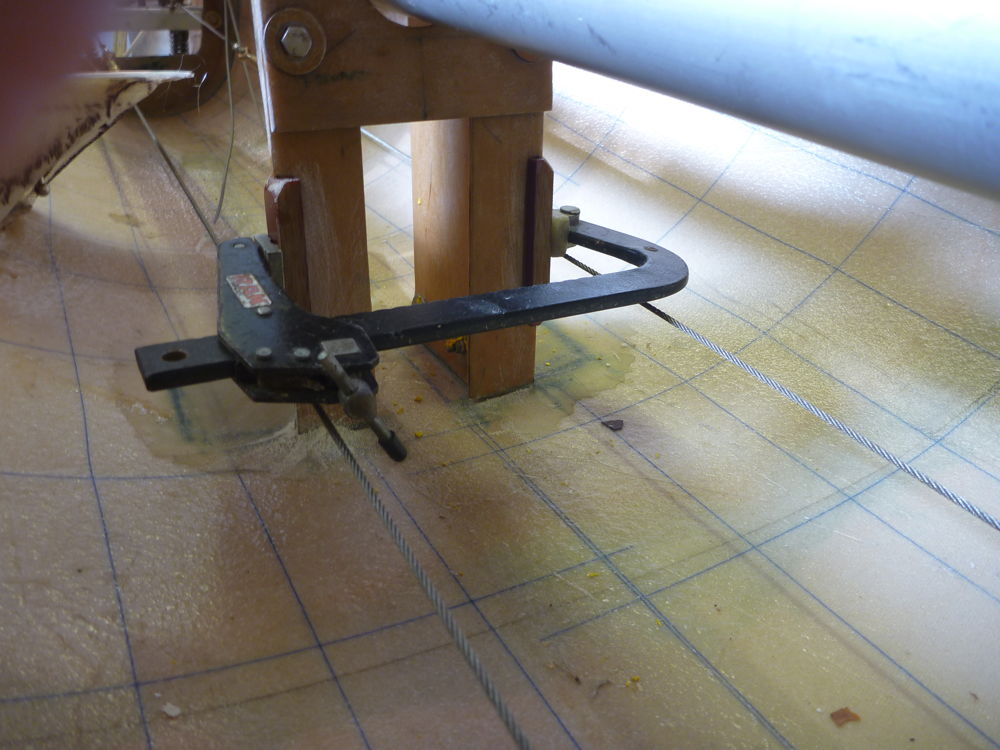

rubbing blocks clamped in place

rubbing blocks clamped in place: 2014-07-19

Lumix DMC-FT1

I made rubbing blocks from synthetic resin bonded fabric (SRBF) to fit the sides of the containment bulkhead (the tower) where the rudder cables touched it at the extremes of rudder movement. Here they are clamped in place while the Redux sets.

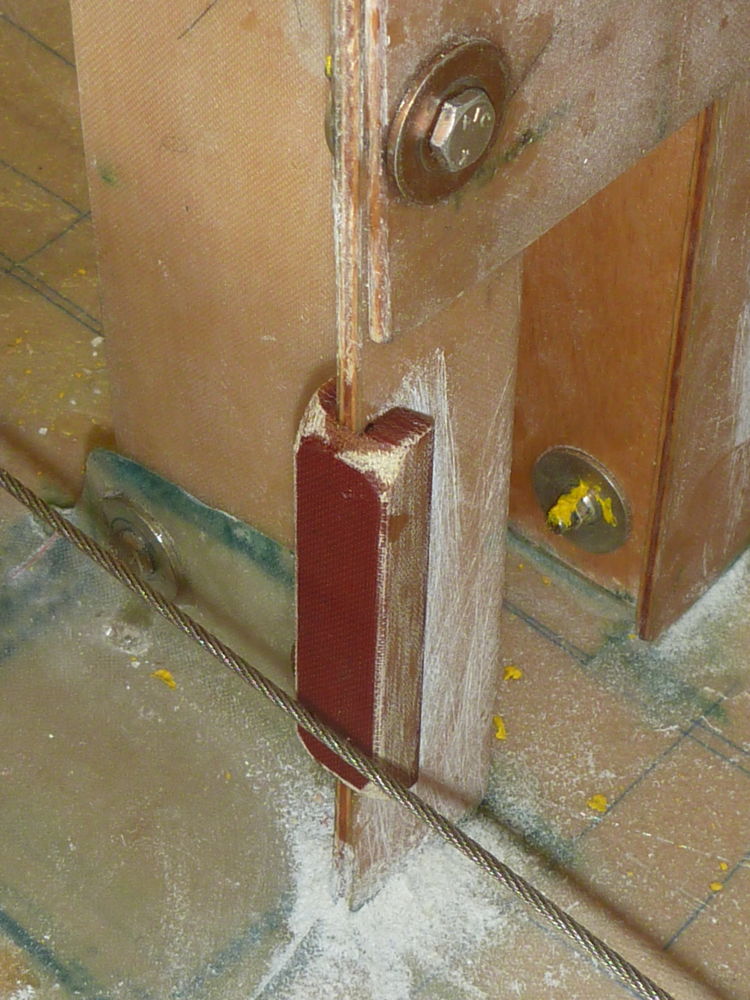

rubbing block

rubbing block: 2014-07-19

Lumix DMC-FT1

Rubbing block showing the deep slot milled to fit on the side of the bulkhead and the tapers at the ends to prevent snagging.

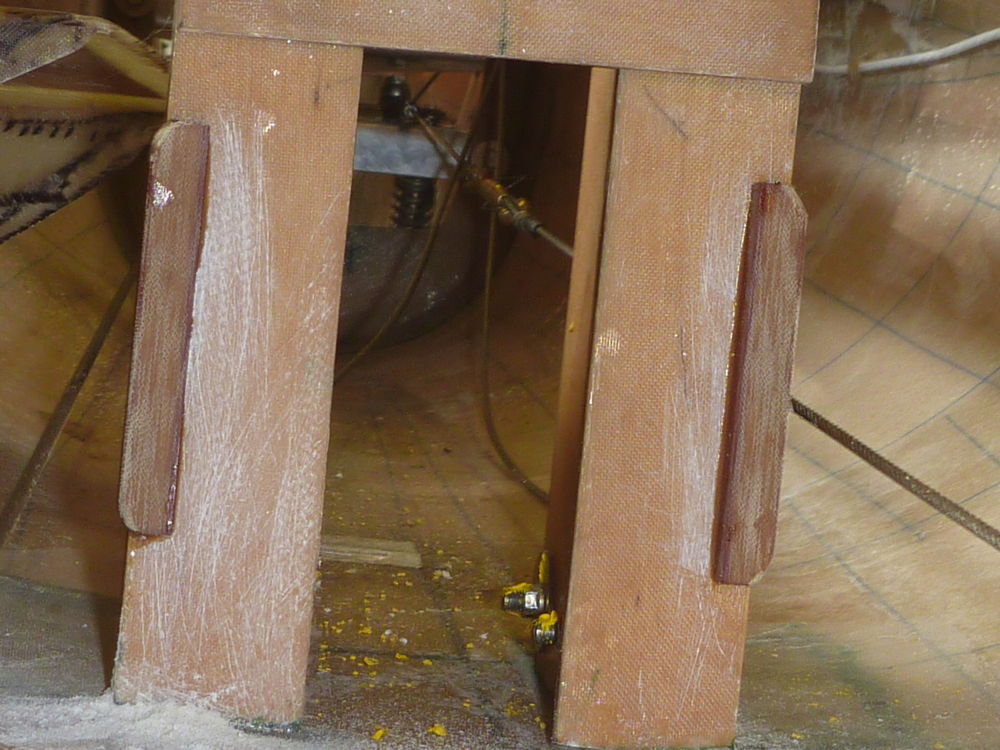

rubbing blocks

rubbing blocks: 2014-07-19

Lumix DMC-FT1

Rubbing blocks in place on containment bulkhead.
