fin splash moulding taped in place

fin splash moulding taped in position

fin splash moulding taped in position: 2013-09-16

Panasonic Lumix DMC-FT1

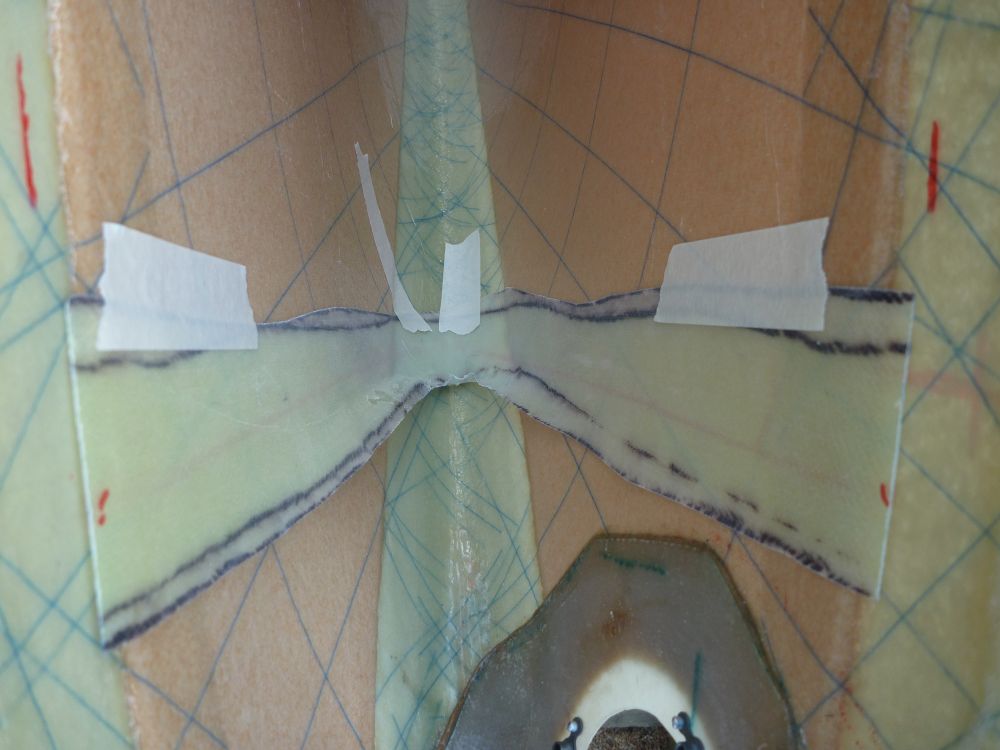

The splash moulding taped in position to check if the wrinkled area will interfere with the rear bulkhead and the next layup. The red line on the inside of the fin (showing faintly through the layup) marks the edge of the rear face of the bulkhead and the wrinkled area is all clear of that.
