XTW06 alignment template

tailwheel arm template

tailwheel arm template: 2013-09-05

Panasonic Lumix DMC-FT1

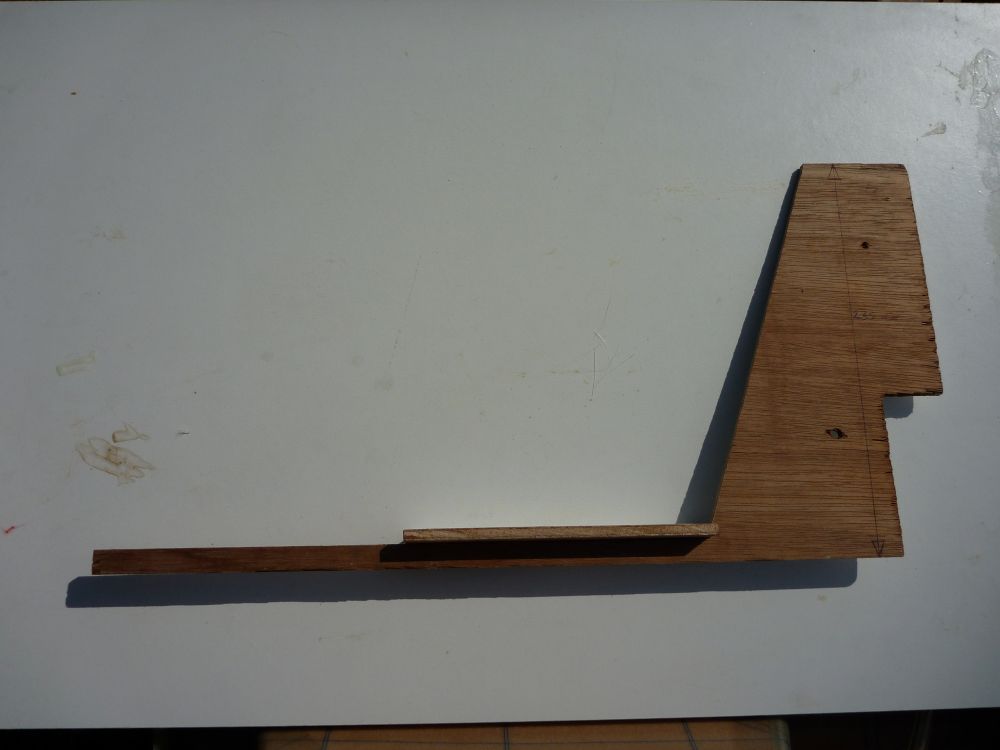

I made this wooden template from an offcut of plywood to help with aligning the tailwheel arm XTW06. The upper edge at the left-hand end and the upper edge at the right-hand end are parallel to each other, and are 235mm apart (the dimension marking you may just be able to see is not correct). I stuck a small platform onto the bottom parallel to provide enough width for the digital level to sit comfortably.
