TA50 antenna cable hole
|
|
TA50 antenna cable hole |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest
hole for Trig TA50 lead: 2021-02-12 Panasonic DMC-FT1

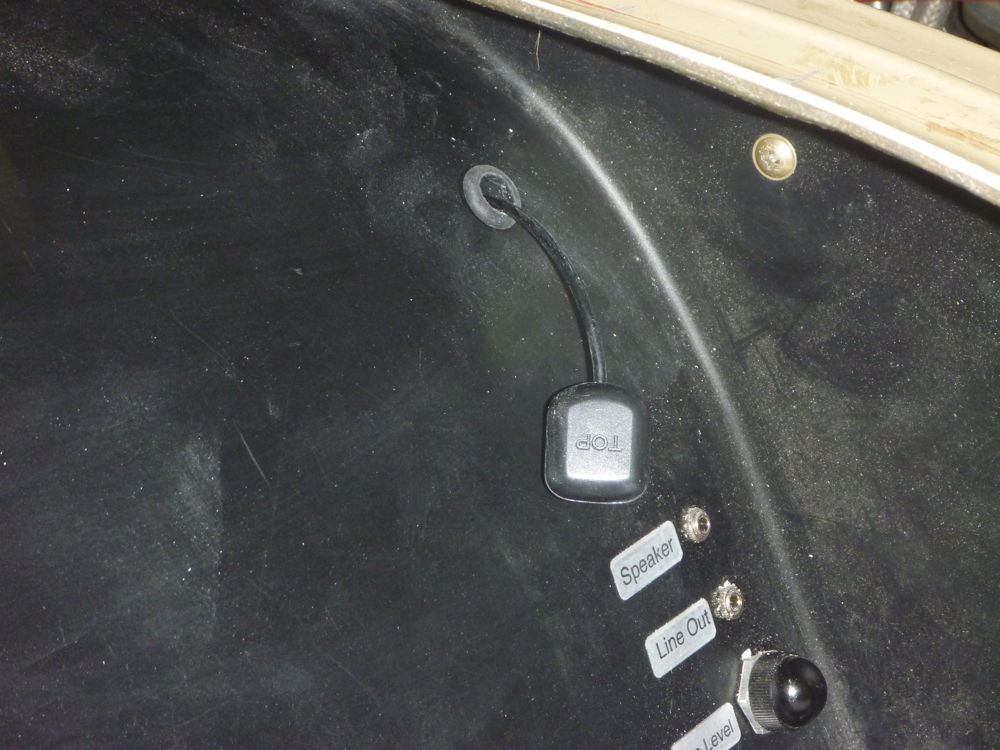

A hole made in the F14 instrument module for the Trig TA50 GPS source antenna. I had to use quite a large grommet to allow the fitted connector to pass through.
hole for Trig TA50 lead: 2021-02-12 Panasonic DMC-FT1

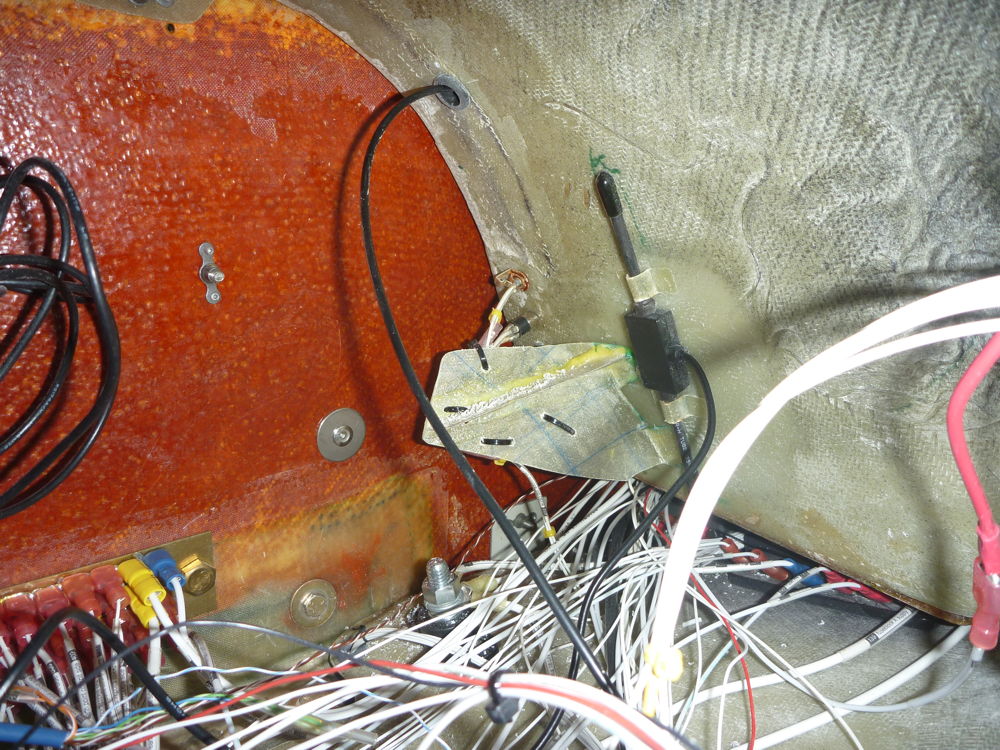

The cable of the Trig TA50 GPS source antenna passing into the F14 instrument module (top centre). Also visible is the TRX2000 FLARM antenna and the pre-preg support for the audio socket wiring. At bottom left is part of forest of tabs forming the common earth point.
