Fitting switches to sub-panel
|
|
Fitting switches to sub-panel |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest

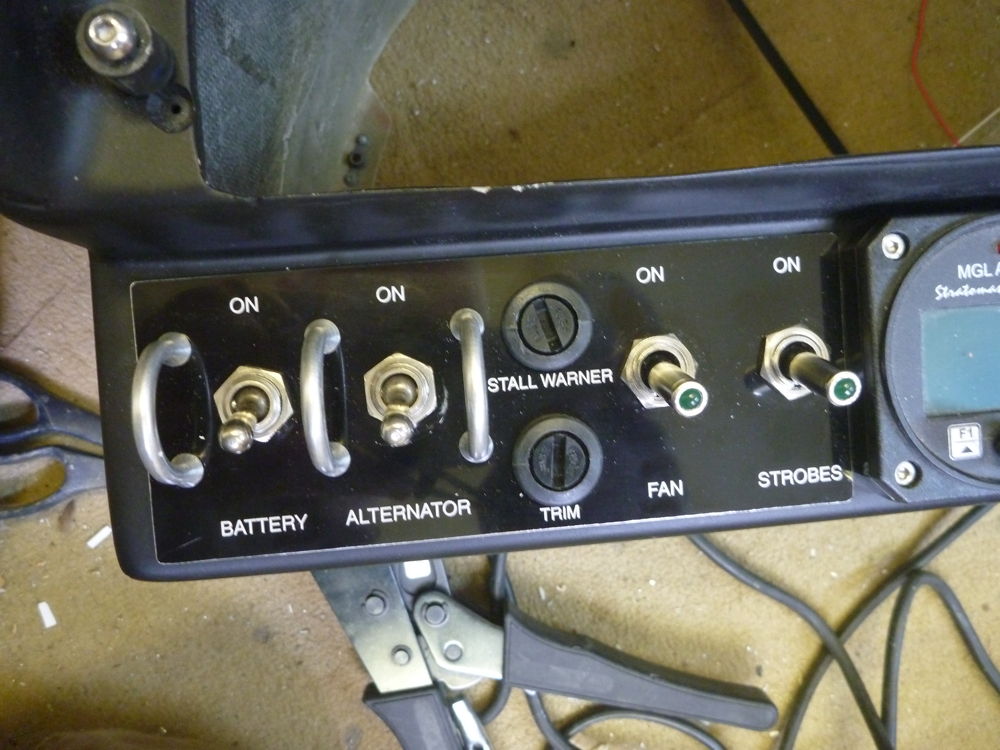

sub-panel switches fitted: 2020-06-03 Panasonic DMC-FT1
All switches and fuseholders fitted to the instrument module sub-panel.

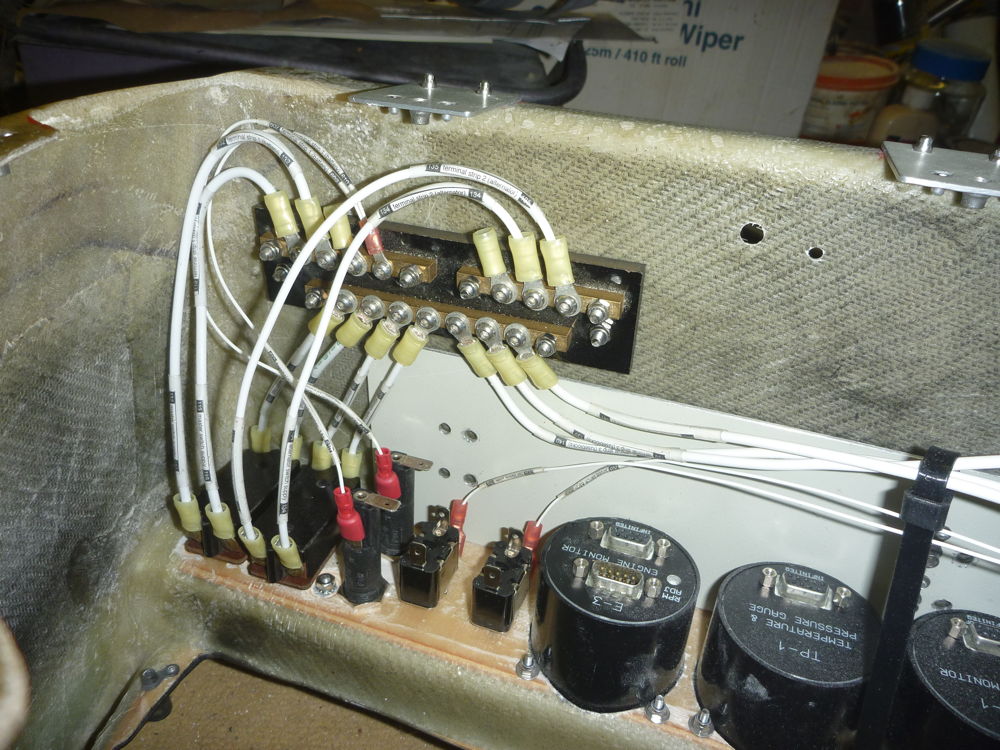

fitting switches on sub-panel: 2020-06-03 Panasonic DMC-FT1
The master switches fitted to the sub-panel and wired. Also shows the supply wires to the stall warner and trim fuseholders, and the earth wires to the strobe and fan switches.
