Starboard conduits filled
|
|
Starboard conduits filled |
|
|
 |
Navigation & Acknowledgements |
3 pictures on this page - scroll down to see the rest
starboard conduit to instrument module: 2020-10-13 Panasonic DMC-FT1
All the wires passing through the starboard cockpit conduit and up into the F14 instrument module through a protective bush.
curved conduit to overhead: 2020-10-13 Panasonic DMC-FT1
Curved conduit on starboard aft side of D-bulkhead showing wiring passing through to overhead conduit. The conduit was bent using gentle heat with natural-fibre ropes inside to stop it collapsing.
overhead conduit wires: 2020-10-13 Panasonic DMC-FT1

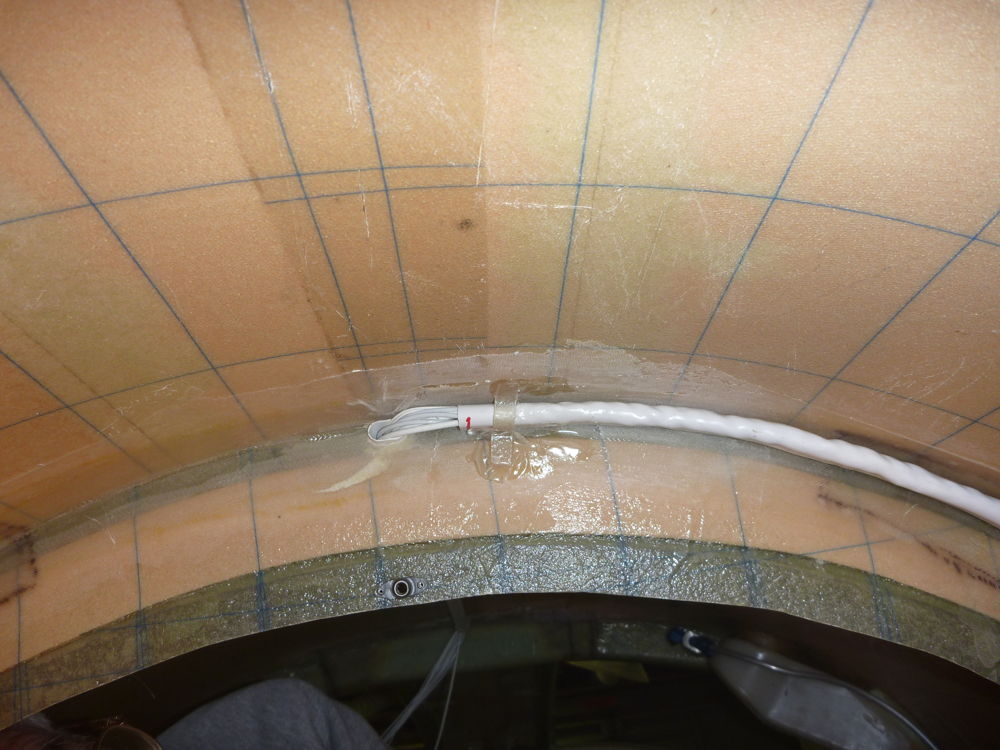

All the wiring drawn through the overhead conduit and awaiting termination in the headset and power connexion box.
