sanding paint and filler off starboard aileron: 2017-10-21 Panasonic DMC-FT1

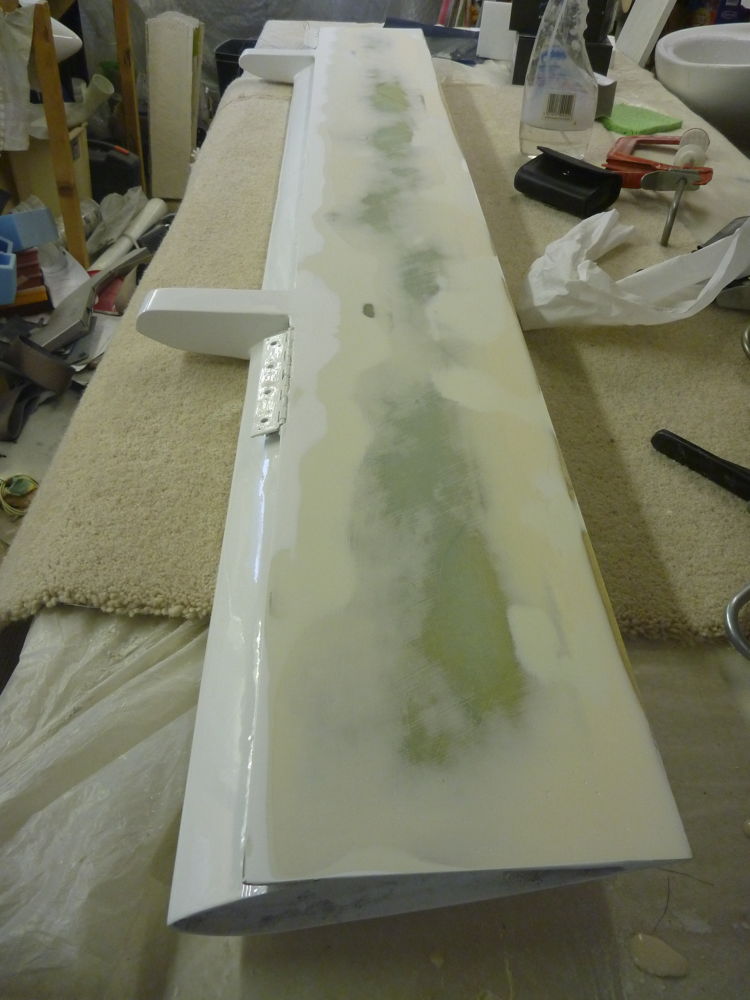

The underside of the starboard aileron viewed from the outboard end, after sanding off 190g of paint and filler. Only another 90g to remove in order to reach the target weight of 2885g.
sanding paint and filler off starboard aileron: 2017-10-21 Panasonic DMC-FT1

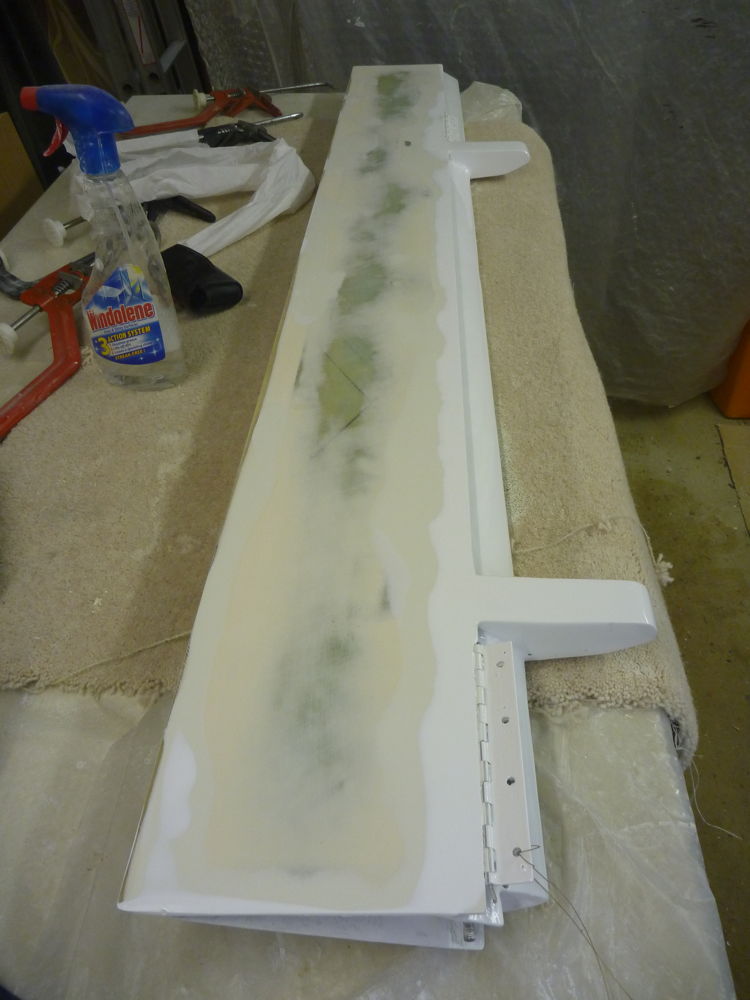

The underside of the starboard aileron viewed from the inboard end, after sanding off 190g of paint and filler. Only another 90g to remove in order to reach the target weight of 2885g.
sanding paint and filler off starboard aileron: 2017-10-24 Panasonic DMC-FT1

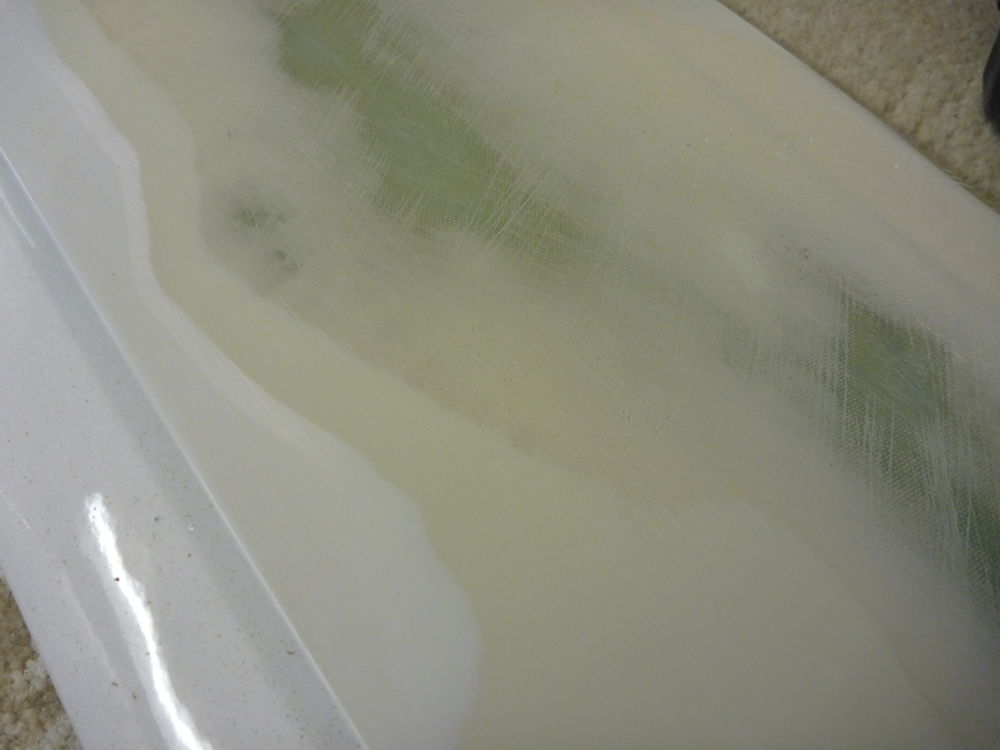

Part of the underside of the starboard aileron while sanding off paint and filler. Several layers are visible. At upper centre the pale green-blue-ish colour is the glass-fibre layup with the blue foam core showing through it. Around that is a neutral white layer, which is the Expancel filler I applied quite thickly before handing over to Ryan for profiling - I had expected him to take most of it off again. Next, in the foreground, is a creamy-yellowish layer which I guess is the undercoat/primer/filler Ryan used. Finally at lower left is the white top coat (automotive 2-pack). The (glossy) un-sanded surface looks slightly grey, with a whiter strip on the edge where it is chamfered down to the primer.
