trial fit of trimmed firewall panels
|
 |
trial fit of trimmed firewall panels

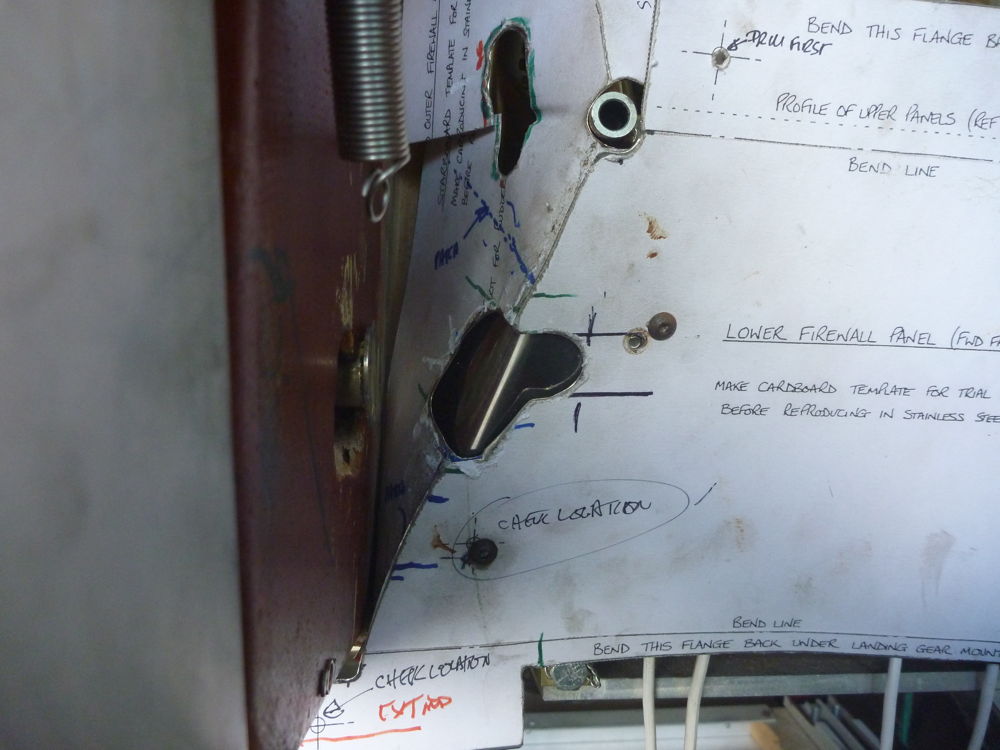

trial fit of SS firewall panels over patch: 2019-05-21 Panasonic DMC-FT1
The starboard and lower stainless steel firewall panels, trimmed to clear various parts of the rudder mechanism, trial assembled to the landing gear frame. Through the trimmed area of the panels, near the centre of the picture, can be seen the patch attached to the diagonal frame tube.
|
This page last updated 2019-06-04.
