trial fit of stainless steel lower firewall panel
|
|
trial fit of stainless steel lower firewall panel |
|
|
 |
Navigation & Acknowledgements |
trial fit of SS firewall on patch: 2019-05-20 Panasonic DMC-FT1

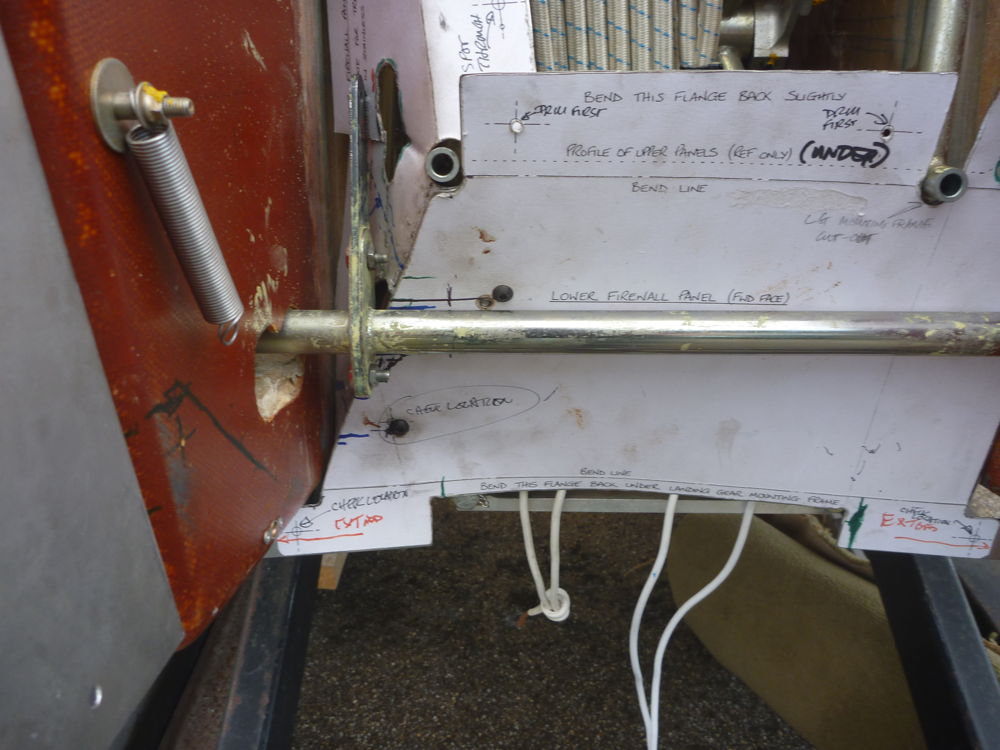

The stainless steel lower firewall panel attached with temporary screws. The anchor nuts for the screws are fitted to the hidden patch attached to the landing gear frame tube. The lower screw also passes through the flange of the starboard firewall panel. The firewall panels are being marked where trimming is needed to clear the rudder pedal cross-shaft and the starboard crank.
