Splash moulding on brackets

2 pictures on this page - scroll down to see the rest

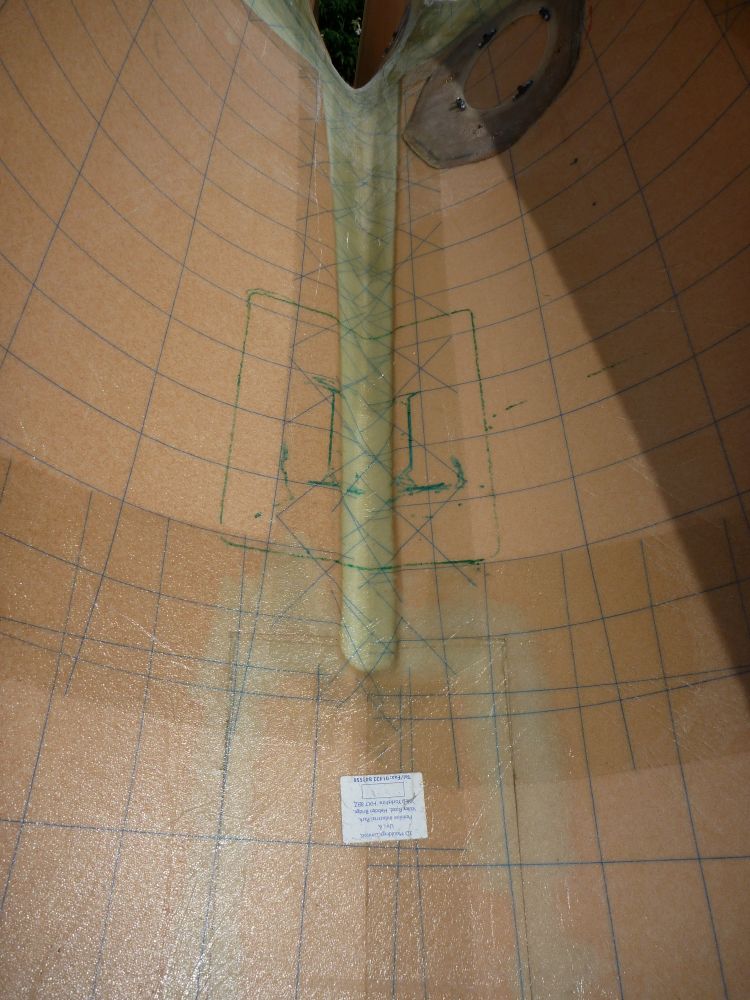

splash moulding outline

splash moulding outline: 2013-08-26

Panasonic Lumix DMC-FT1

The outline of the splash moulding for the top of the containment bulkhead marked on the inner skin of the fuselage top, to aid in applying Redux later.

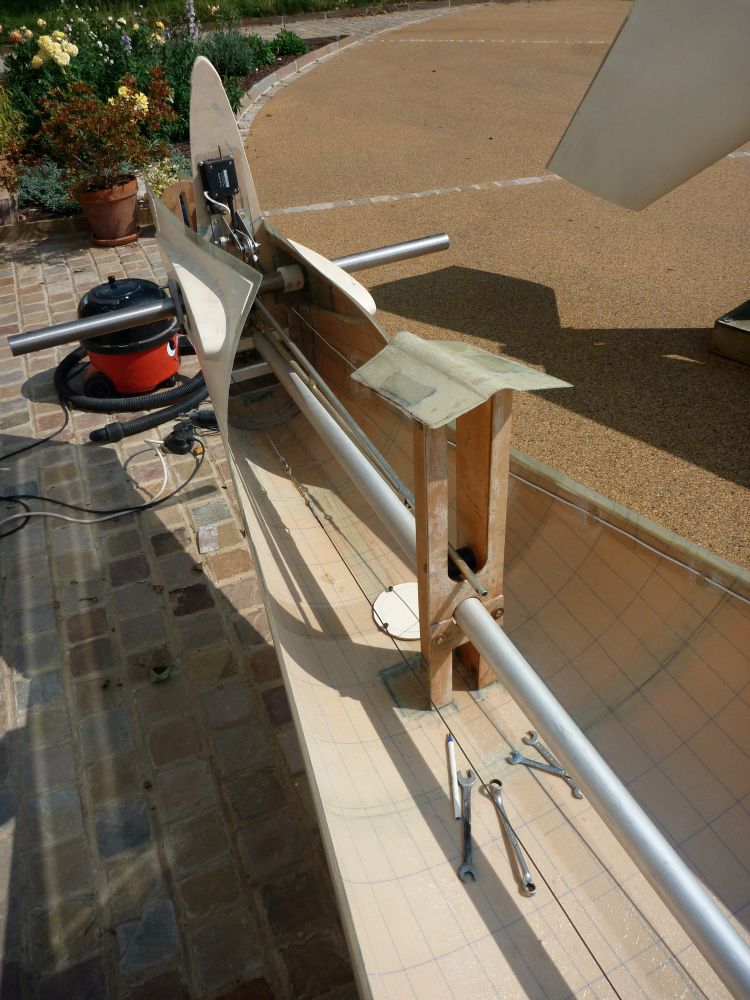

splash moulding fitted

splash moulding fitted: 2013-08-26

Panasonic Lumix DMC-FT1

The splash moulding with the BID brackets attached, fitted to the top of the containment bulkhead.
