Spar bush bonding: 2008-10-03
Nikon Coolpix 8400

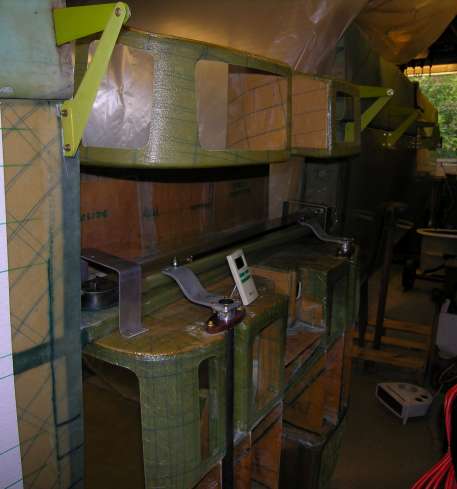

Wings and cockpit module clamped together while the seat-back spar bushes and the spar cups are bonded. The CS14s are not being bonded at this stage, they are just placed handy ready for the next operation. The wings reach almost to the ends of the garage, and prevent the bubble-film curtains from closing as normal. The 34ft length of the garage is (one of the reasons) why we moved to this house!
Spar bush bonding: 2008-10-03
Nikon Coolpix 8400

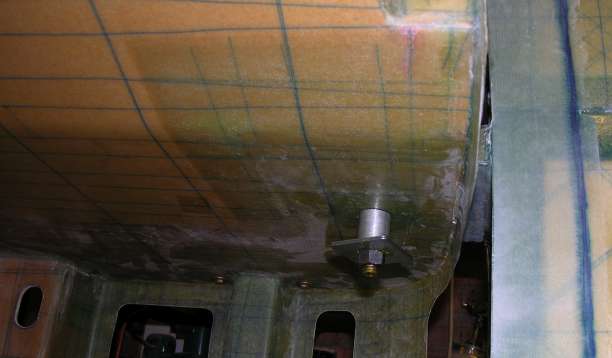

Spacer, large washer and nut on the bolt through the spar bushes - all well-greased to avoid becoming a permanent fixture. Note how close the wing root comes to the outboard side of the seat.
Spar cup bonding: 2008-10-03
Nikon Coolpix 8400

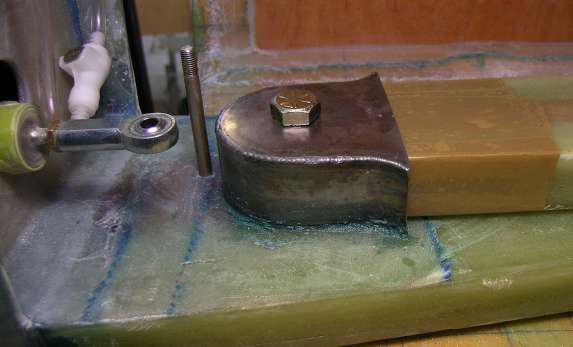

The spar cup for the starboard spar being bonded to the port spar.
