fuselage damage at flap cross-tube
|
|
fuselage damage at flap cross-tube |
|
|
 |
Navigation & Acknowledgements |
4 pictures on this page - scroll down to see the rest
fuselage damage: 2017-03-14 Panasonic DMC-FT1

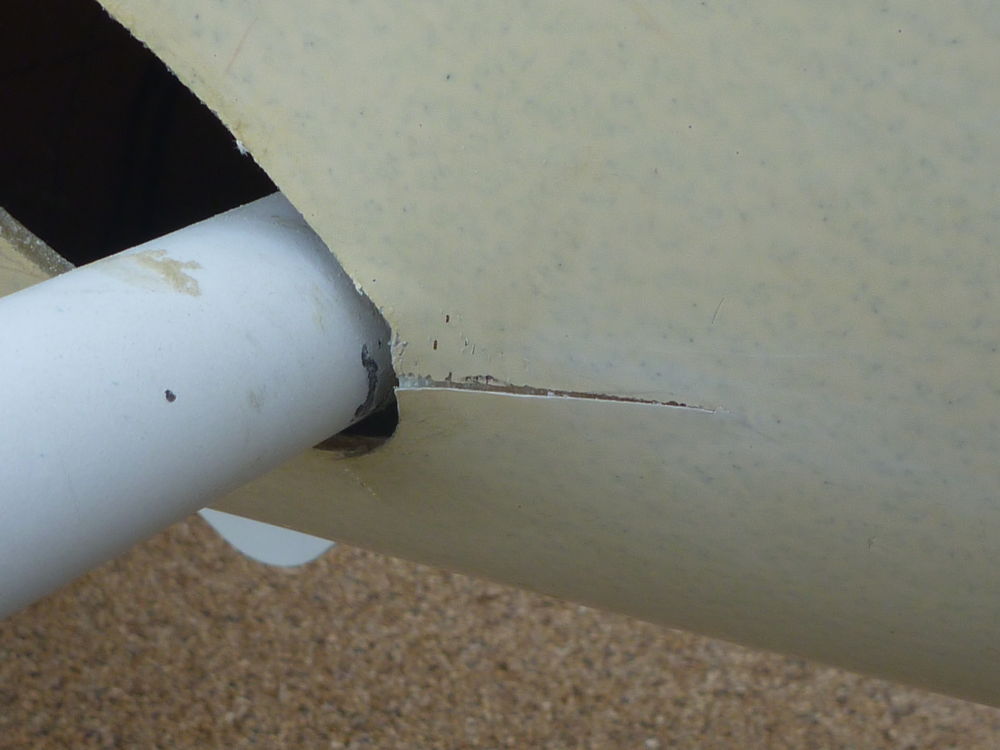

Split in fuselage skin, caused when the flap actuating tube caught on something immovable while rolling fuselage out of garage. The fuselage with the engine mounted is getting quite heavy to roll and has considerable momentum once moving. The polyethylene sheet over the cockpit opening obscured my view on this occasion and so I didn't quite get the flap tube clear of obstructions.
fuselage damage: 2017-04-01 Panasonic DMC-FT1
With the flap tube retracted, 2 splits in the fuselage skin can be seen.
fuselage damage: 2017-04-01 Panasonic DMC-FT1

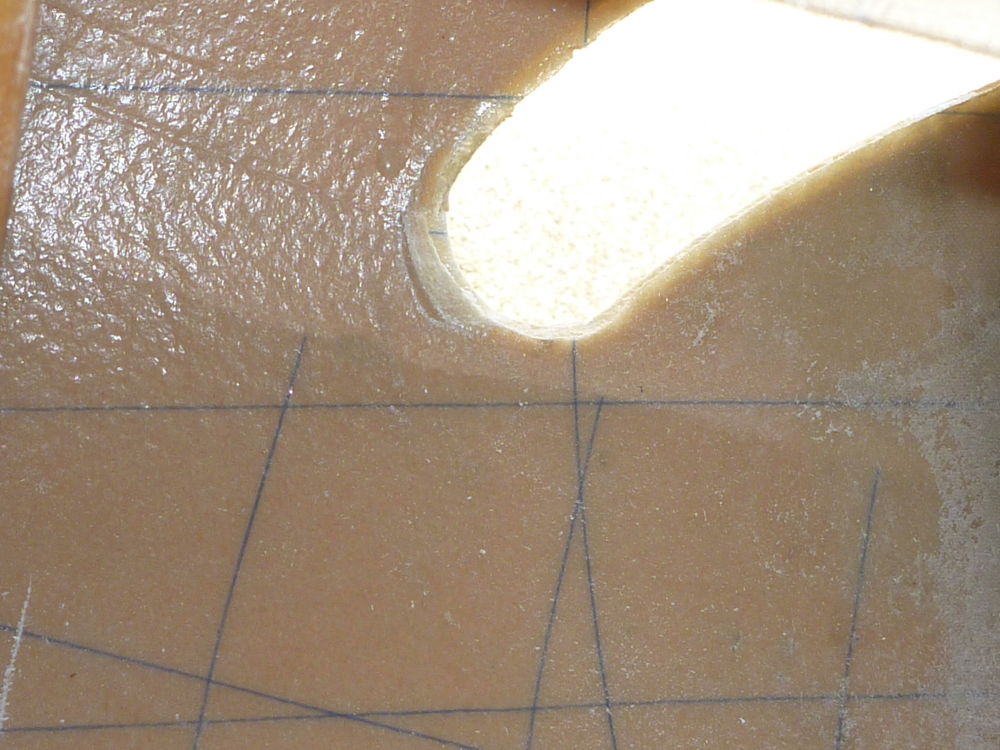

On the inside, the damage is not so severe - the flox edge and skin is crushed locally but the skin has not split as on the outside. No flash used for this shot.
fuselage damage: 2017-04-01 Panasonic DMC-FT1
On the inside, the damage is not so severe - the flox edge and skin is crushed locally but the skin has not split as on the outside. Flash used for this shot.
