Spacer for oil tank bracket fixing
|
|
Spacer for oil tank bracket fixing |
|
|
 |
Navigation & Acknowledgements |
3 pictures on this page - scroll down to see the rest

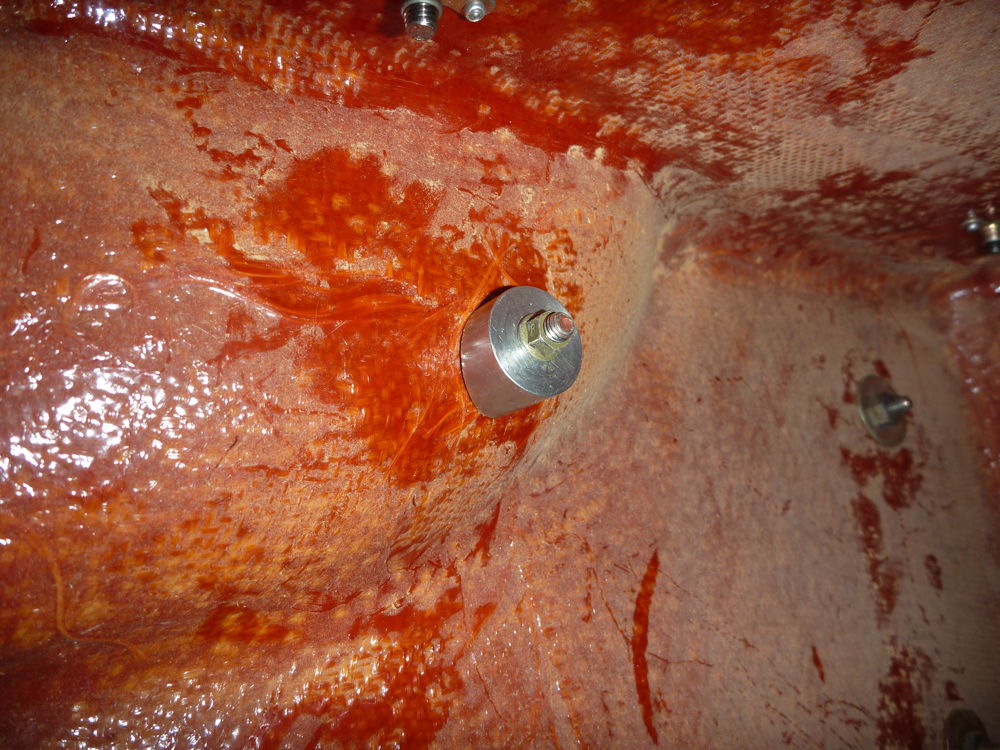

Tapered spacer for oil tank bracket: 2020-03-13 Panasonic DMC-FT1
The spacer for the bolt holding the top inboard corner of the oil tank bracket. It needed to be shaped to fit the recess in the footwell. This view is from below.

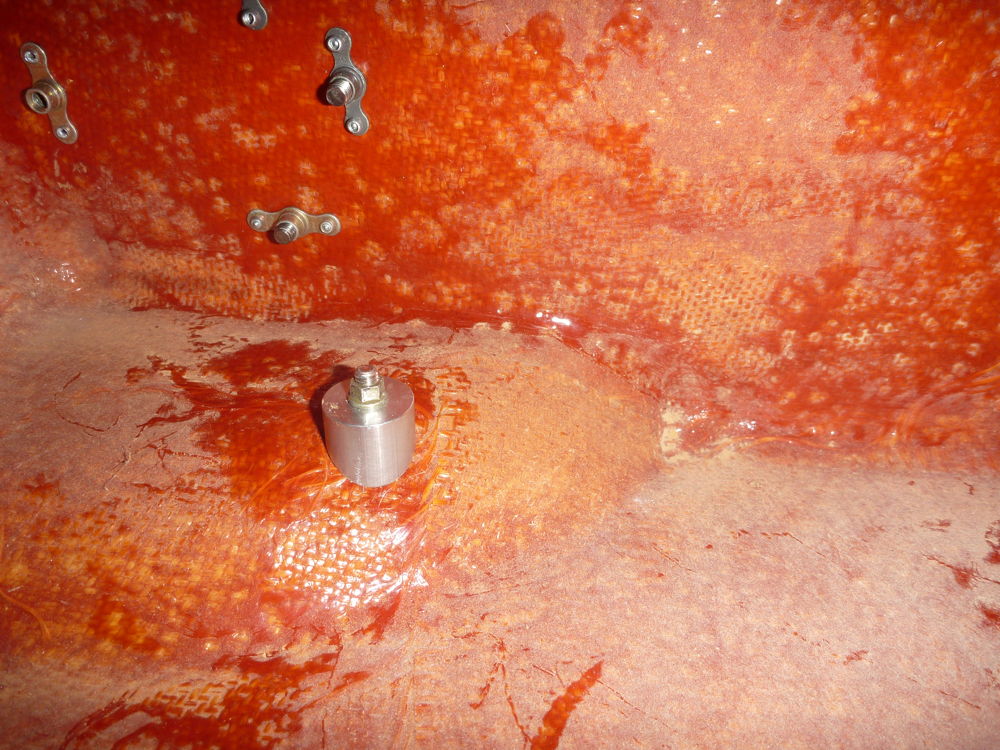

Tapered spacer for oil tank bracket: 2020-03-13 Panasonic DMC-FT1
The spacer for the bolt holding the top inboard corner of the oil tank bracket. It needed to be shaped to fit the recess in the footwell. This view is from outboard.

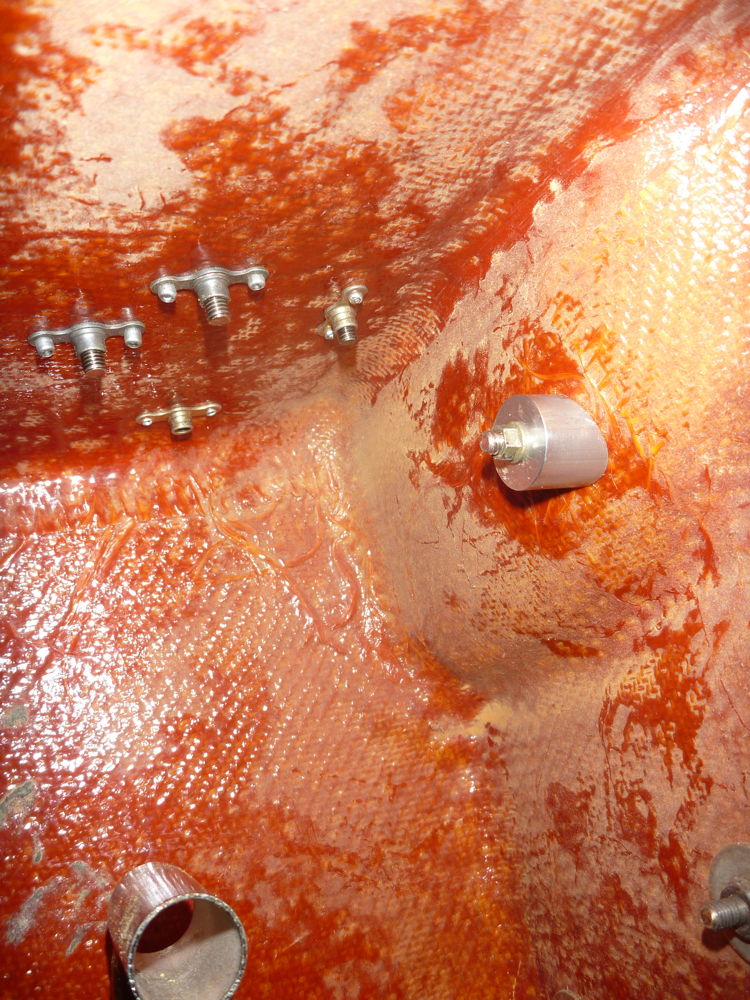

Tapered spacer for oil tank bracket: 2020-03-13 Panasonic DMC-FT1
The spacer for the bolt holding the top inboard corner of the oil tank bracket. It needed to be shaped to fit the recess in the footwell. This view is from inboard.
