rudder deflection first check

2 pictures on this page - scroll down to see the rest


rudder deflection port

rudder deflection port: 2014-10-13

Lumix DMC-FT1

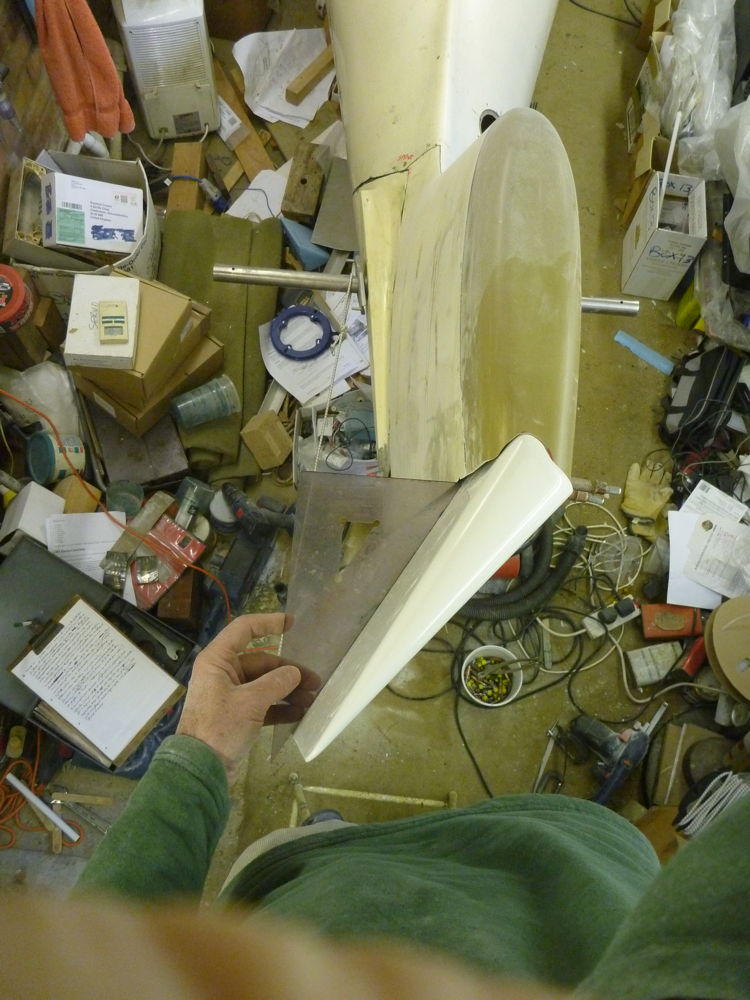

The rudder viewed from above at full port deflection. Instead of gouging a piece out of the top corner of the rudder as the manual advises, I trimmed back the fin tip to allow the rudder to swing to port. The 30-60-90 set-square shows that the deflection is about 30 degrees.


rudder deflection starboard

rudder deflection starboard: 2014-10-13

Lumix DMC-FT1

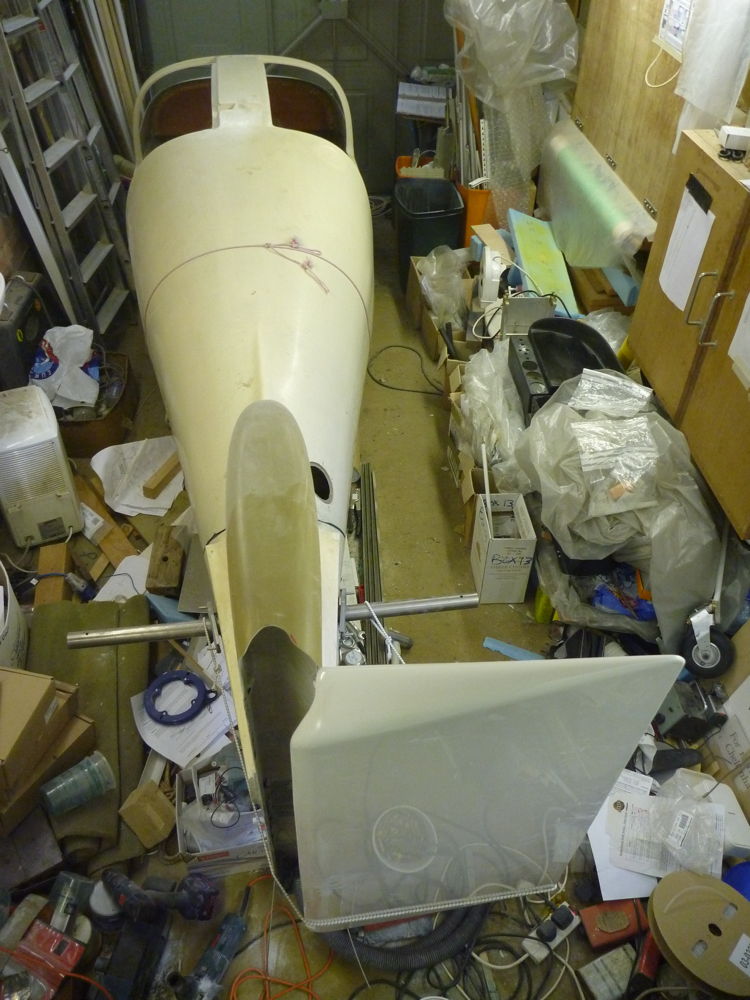

With no pushrod attached, the rudder will swing about 90 degrees to starboard.
