Temporarily tensioning rudder cables - second method

2 pictures on this page - scroll down to see the rest

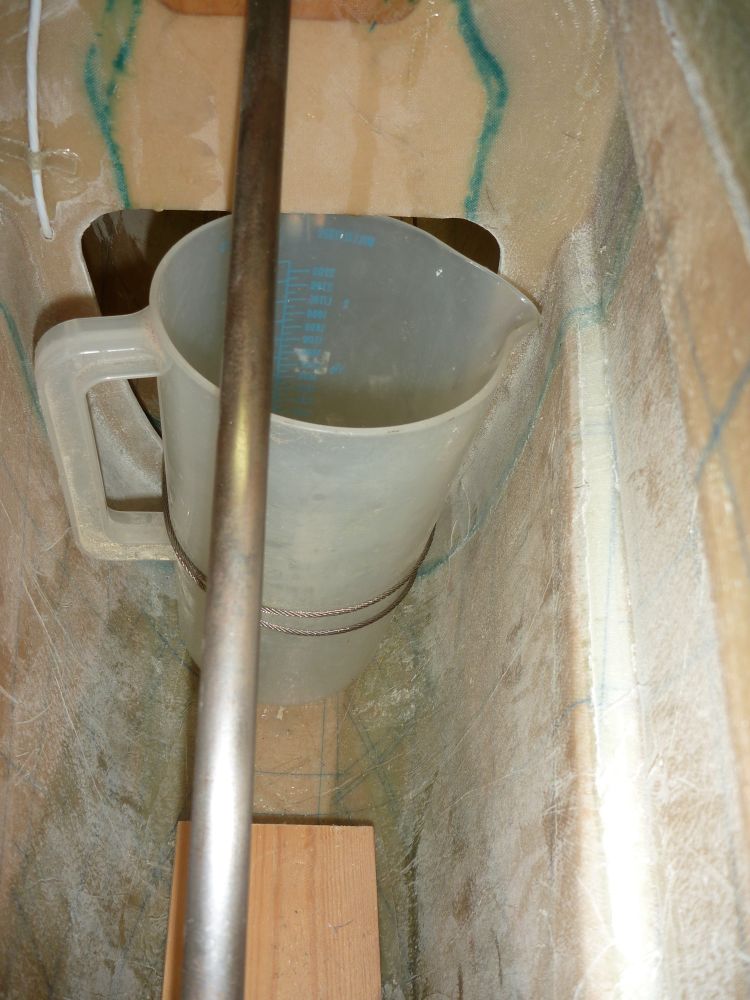

rudder cable turnaround

rudder cable turnaround: 2013-06-27

Panasonic Lumix DMC-FT1

A large plastic jug pressed into service as a large-radius turnaraound for the rudder cables, so I can apply some tension while setting up the cable guides in the tunnel.

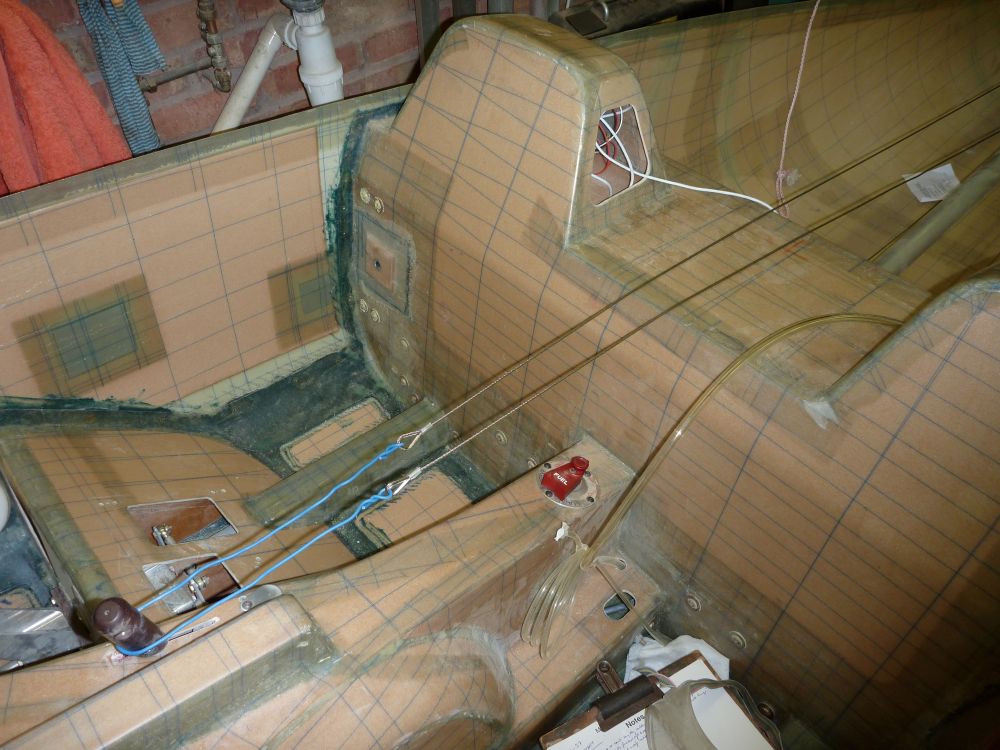

rudder cable temporary restraint

rudder cable temporary restraint: 2013-06-27

Panasonic Lumix DMC-FT1

Rudder cables tensioned and restrained by taking them around a large radius at the rear bulkhead and then attaching the ends to a temporary loop around the brake lever.
