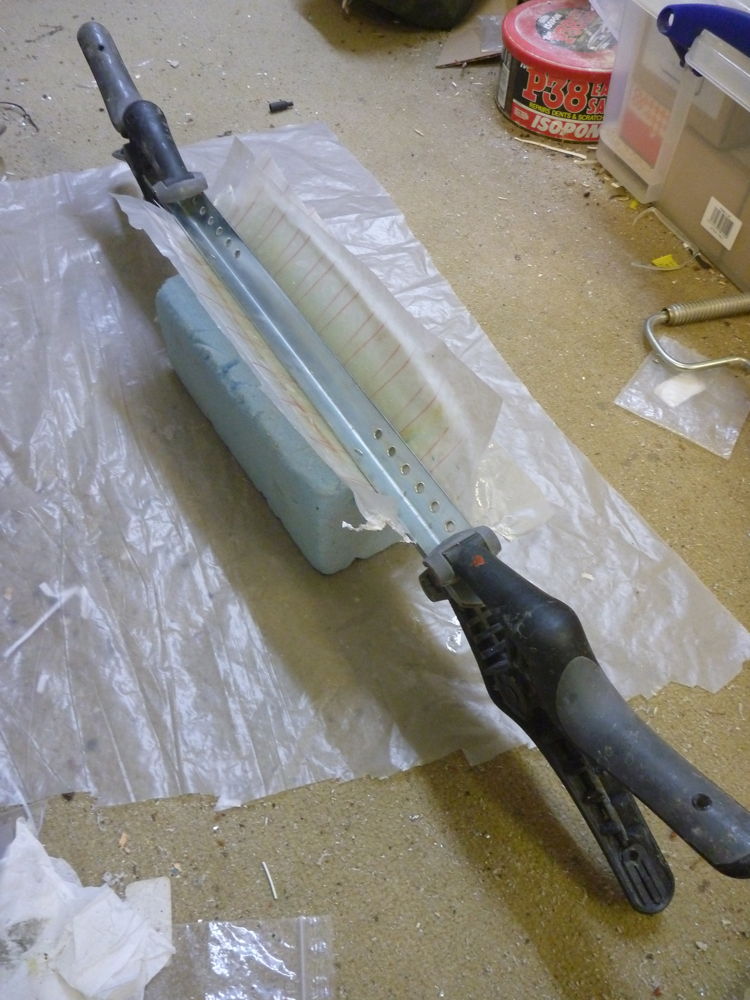

making BID angle bracket: 2021-07-31 Panasonic DMC-FT1
A layup of 3 layers of BID clamped between 2 lengths of steel angle to form right-angle brackets. There is a layer of peel-ply (with the red tracer threads) on each side of the layup, and layers of polyethylene sheet on the outside, to prevent the layup sticking to the angles. The assembly is supported on a piece of blue foam with a VEE cut.

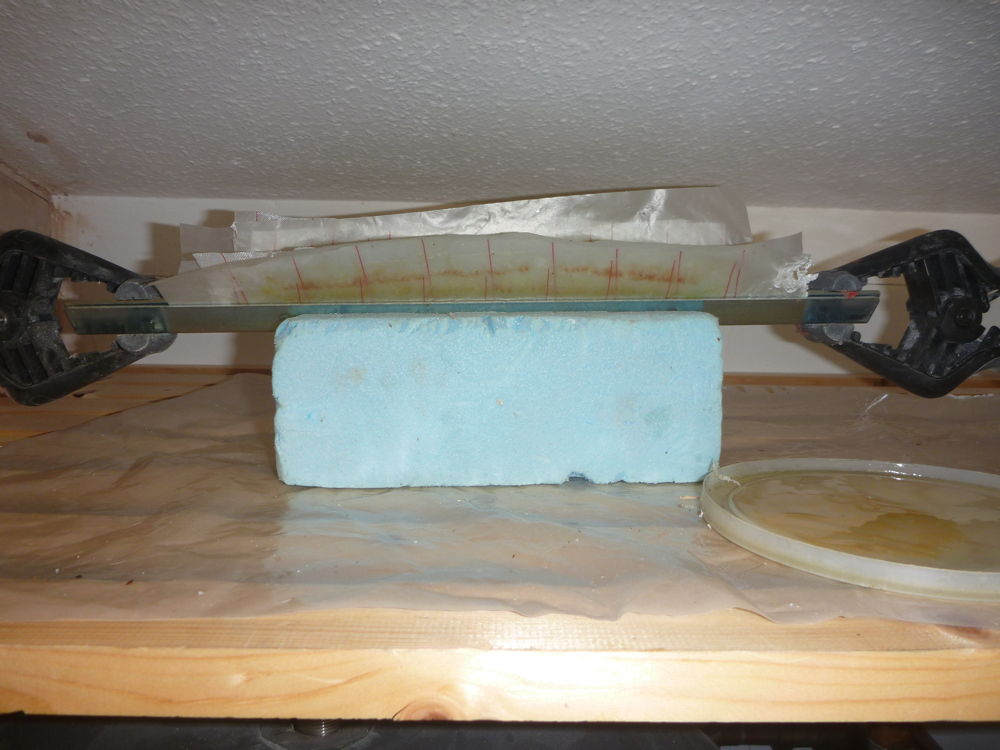

curing BID angle bracket: 2021-07-31 Panasonic DMC-FT1
The right-angle bracket layup in the boiler cupboard for curing.
