Modify rear bulkhead for Mod 77

2 pictures on this page - scroll down to see the rest

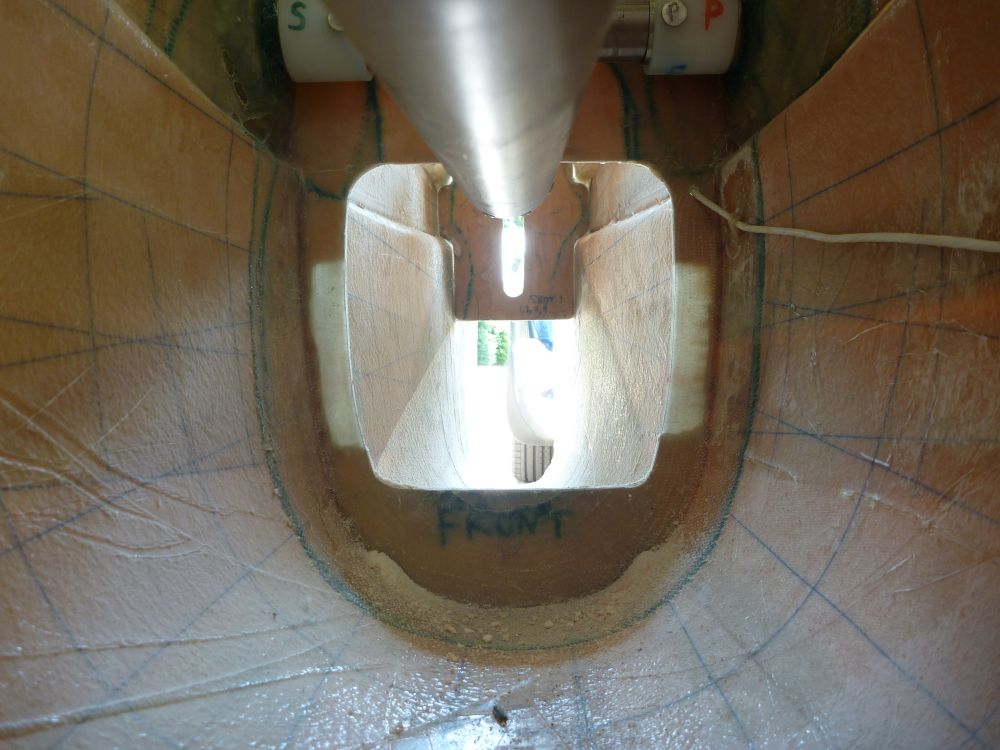

Foam removed from rear bulkhead

Foam removed from rear bulkhead: 2013-07-08

Panasonic Lumix DMC-FT1

Looking aft at the rear bulkhead. Where I have routed out the foam core at each side for the plywood inserts the bulkhead layup is translucent.

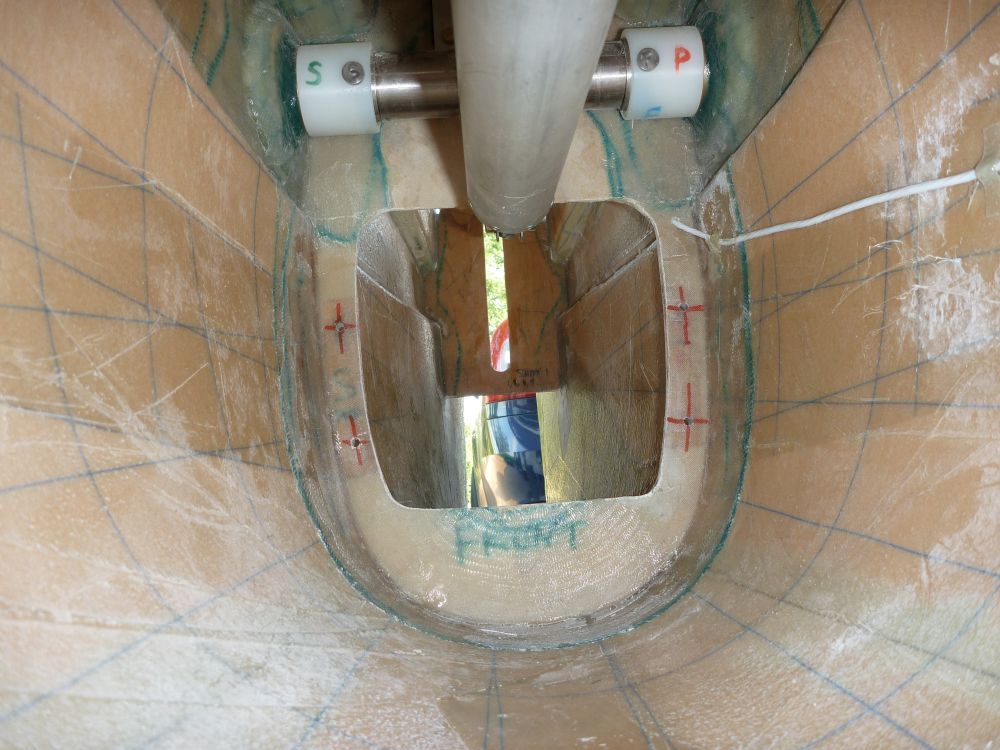

rudder bellcrank bracket mounting holes

rudder bellcrank bracket mounting holes: 2013-07-10

Panasonic Lumix DMC-FT1

The rear bulkhead modified, with ply inserts fitted and BID reinforcement added, and holes drilled to match the bracket that carries the rudder bellcrank.
