engine sump banjo rotated and locked
|
|
engine sump banjo rotated and locked |
|
|
 |
Navigation & Acknowledgements |
oil sump banjo re-positioned: 2018-12-08 Apple iPhone 6

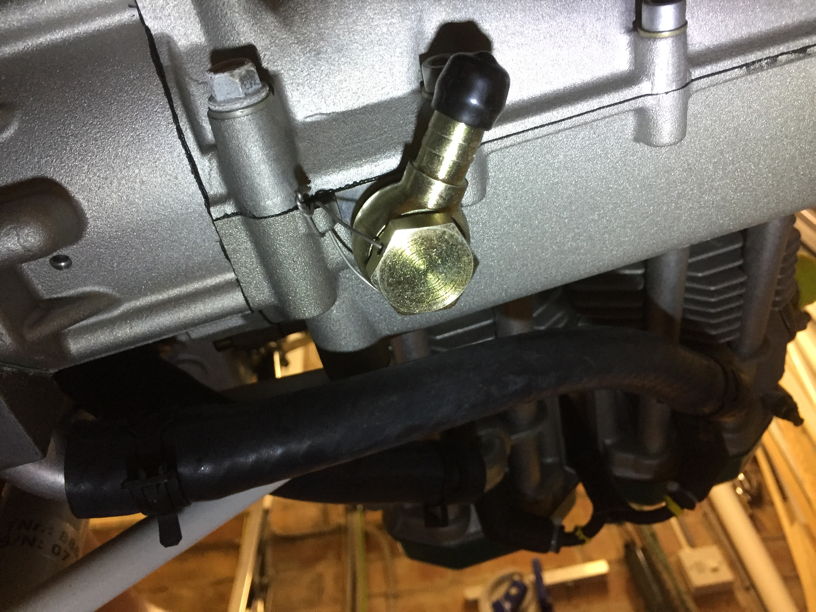

The Rotax oil sump banjo is delivered pointing forward, Here it has been re-positioned to point about 30 degrees forward of starboard for a better run of the oil pipe. Note the locking wire between the banjo nut and the adjacent crankcase eye.
