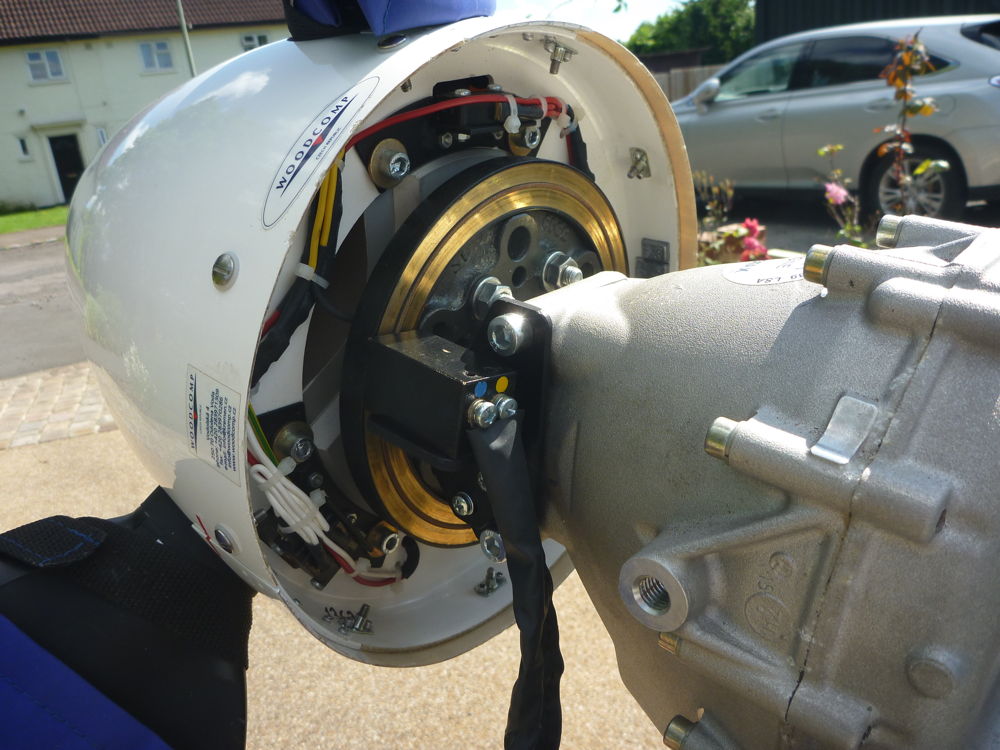

trial fitting of propeller: 2016-07-18 Panasonic DMC-FT1
The brush assembly fitted to check alignment with the propeller.

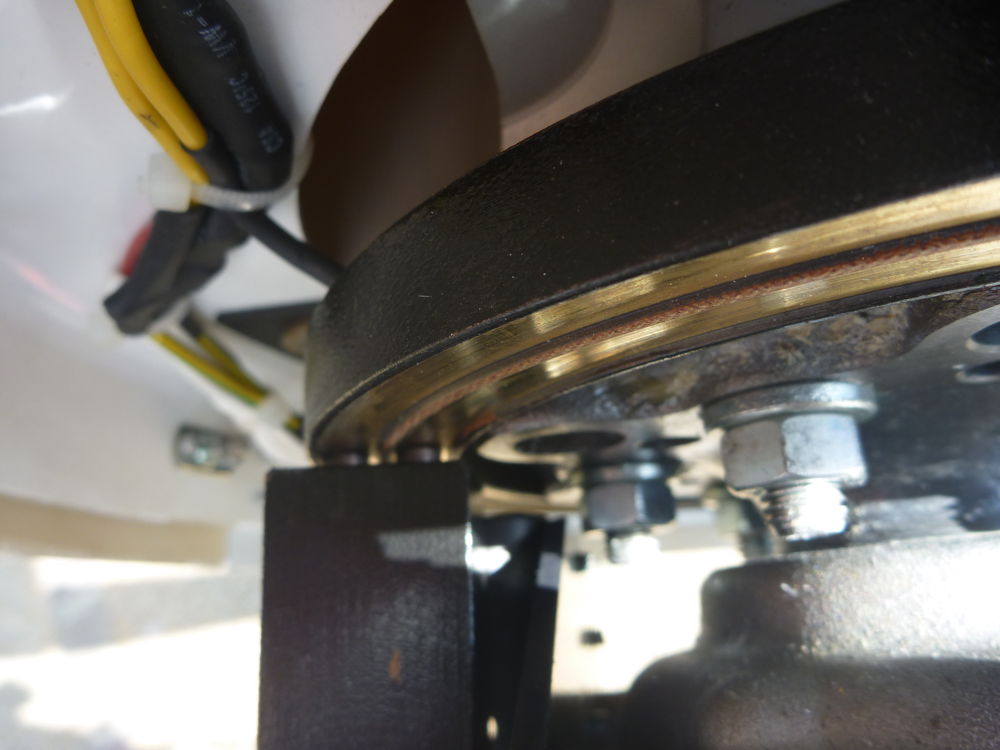

trial fitting of propeller: 2016-07-18 Panasonic DMC-FT1
The brush assembly fitted to check alignment with the propeller. It appears quite easy to set housing for minimal brush protrusion, and to get the brushes squarely aligned with the slip-rings. The cowl will have to be cut away a bit more here for clearance.
