tie-bar plywood brace bonding

plywood brace for tie-bar

plywood brace for tie-bar: 2015-01-03

Lumix DMC-FT1

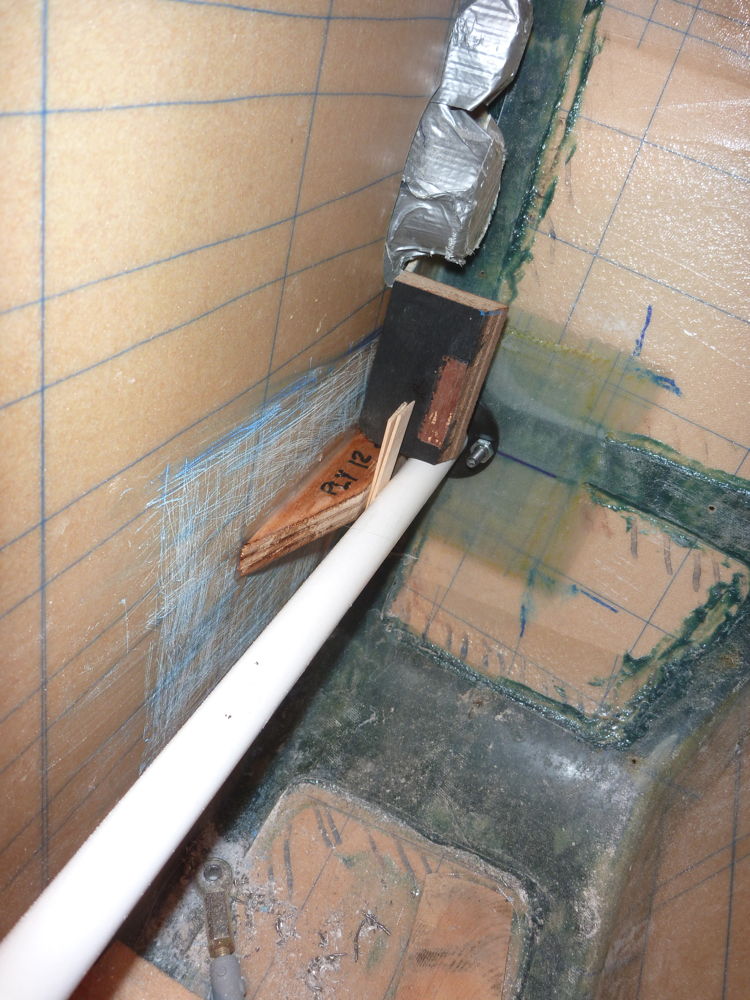

Bonding in one of the plywood braces that provide a load path between the tie-bar and the fuel tank bulkhead. A couple of mixing sticks act as a spacer to ensure there is enough space between the tie-bar and the plywood for the BID layup, and the black-painted offcut of plywood on top is checking the vertical alignment of the plywood with the tie-bar.
