main panel pitot-static connexions

3 pictures on this page - scroll down to see the rest

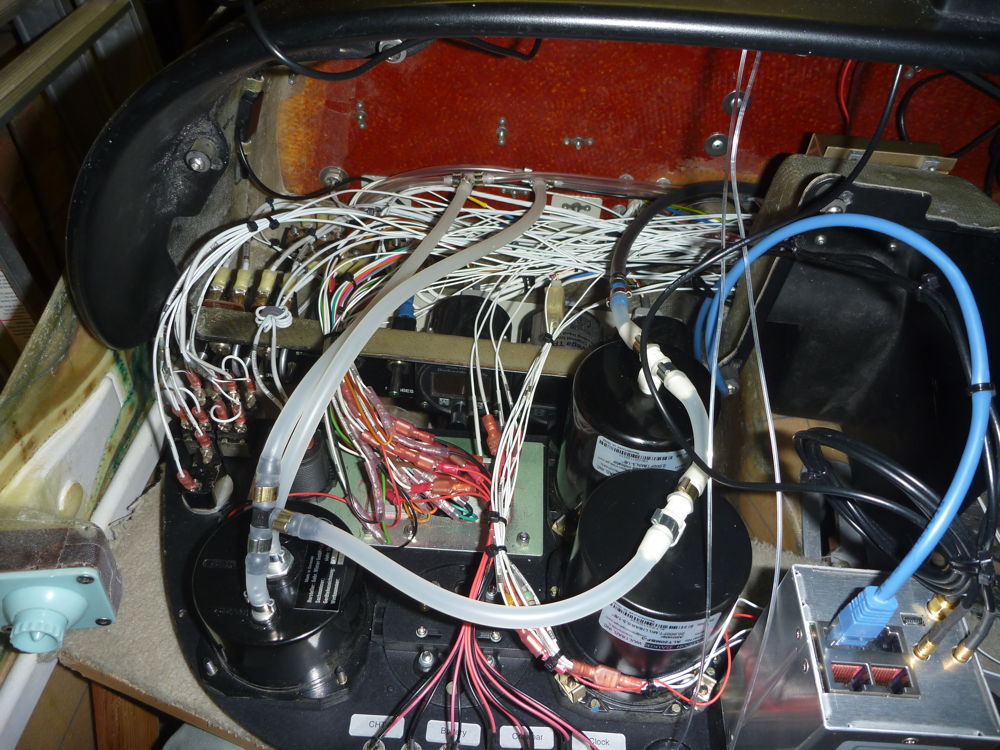

pressure instrments connected

pressure instrments connected: 2021-01-23 Panasonic DMC-FT1

Pitot/static connexions to ASI, altimeter and VSI using surgical silicon tubing. At the back of the picture, further tubing leads off to the right for the SmartASS airspeed speaker (clear) and the Trig transponder control head (black). At the bottom right is the Garrecht TRX-2000 with the RJ-45 power and signal lead connected, plus the 3 antenna cables.

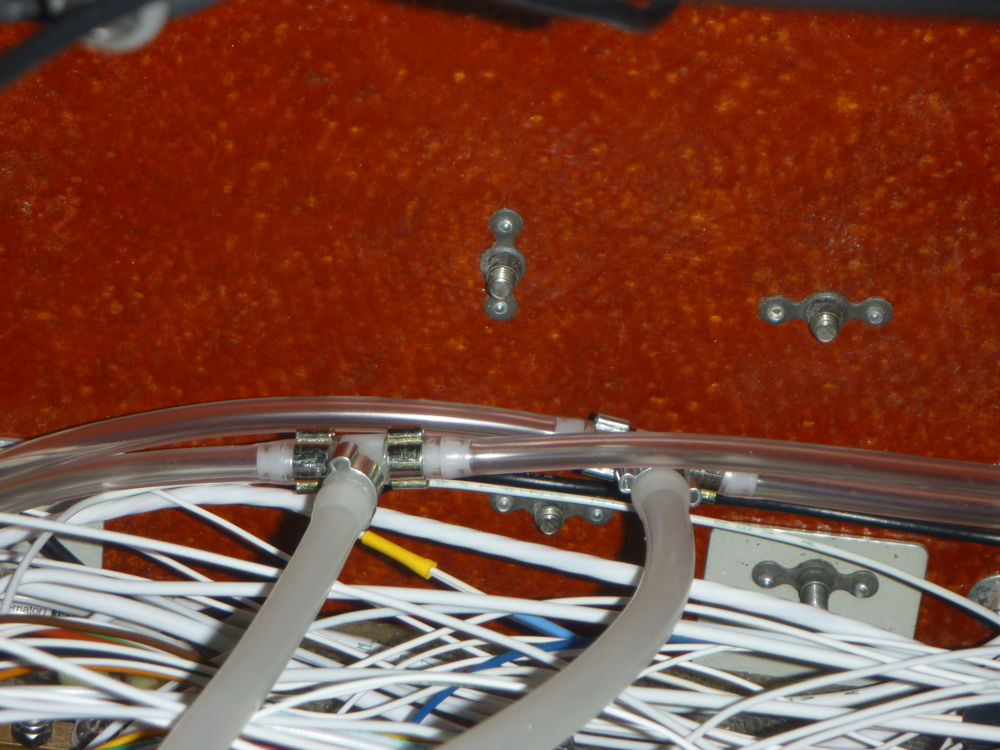

pitot and static TEEs

pitot and static TEEs: 2021-01-23 Panasonic DMC-FT1

TEE joints in the pitot and static tubing inside the instrument module. The clear PVC tubing is that supplied in the kit. It comes in at the left from the wing connectors and goes off to the right towards the SmartASS airspeed speaker. The other tubing coming out towards the bottom of the picture is slightly larger surgical silicon tubing to suit the various pressure instruments.

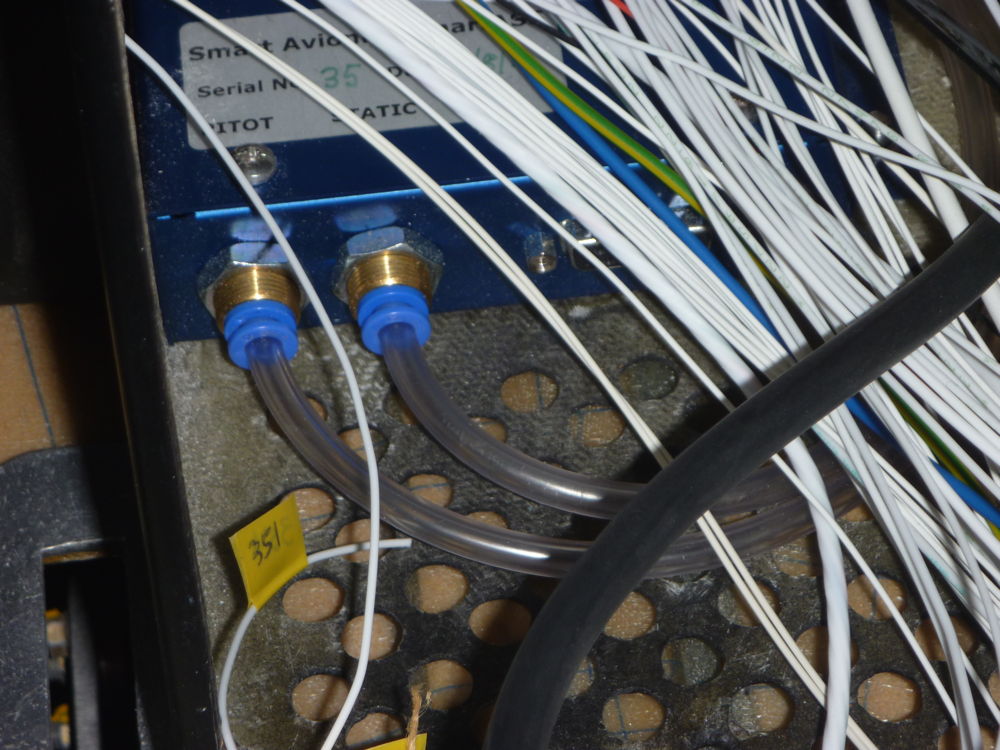

SmartASS pitot/static connexions

SmartASS pitot/static connexions: 2021-01-23 Panasonic DMC-FT1

The PVC tubing supplied in the kit for the pitot/static system terminates here in the SmartASS airspeed speaker, located on the bottom of the instrument module, in the area behind the radio panel.
