2 pictures on this page - scroll down to see the rest

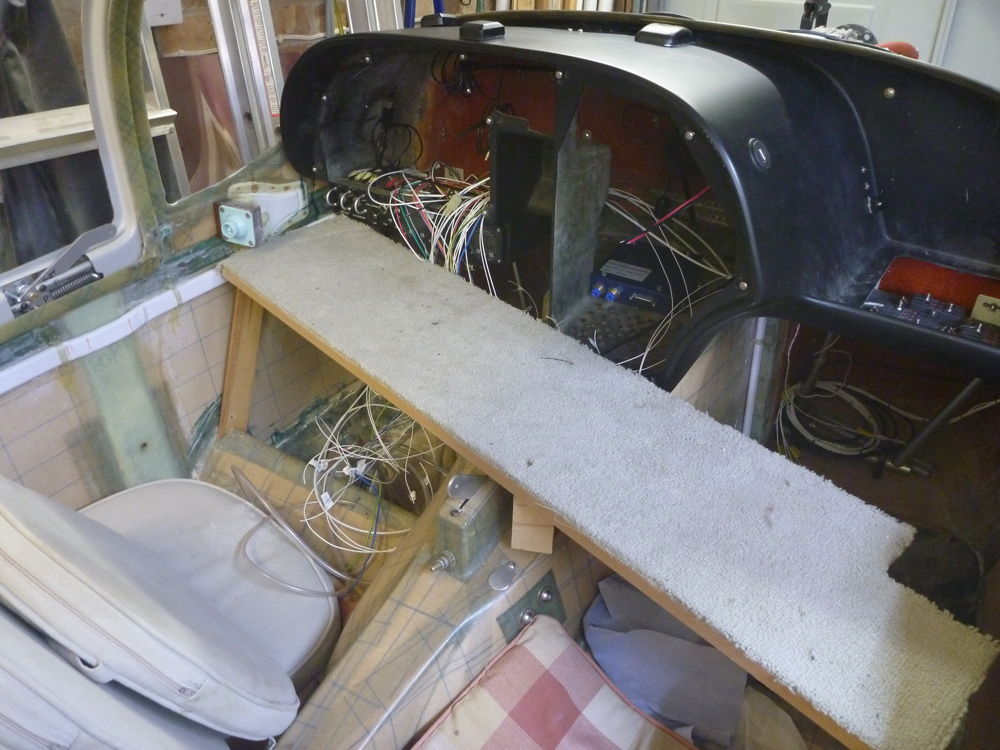

panel wiring support shelf: 2020-08-17 Panasonic DMC-FT1
Shelf for supporting the instrument panels during wiring. It has a folding strut at the port end which rests on the corner of the thigh support, a hollow that locates on top of the brake lever, and a wooden block that rests on the tunnel.

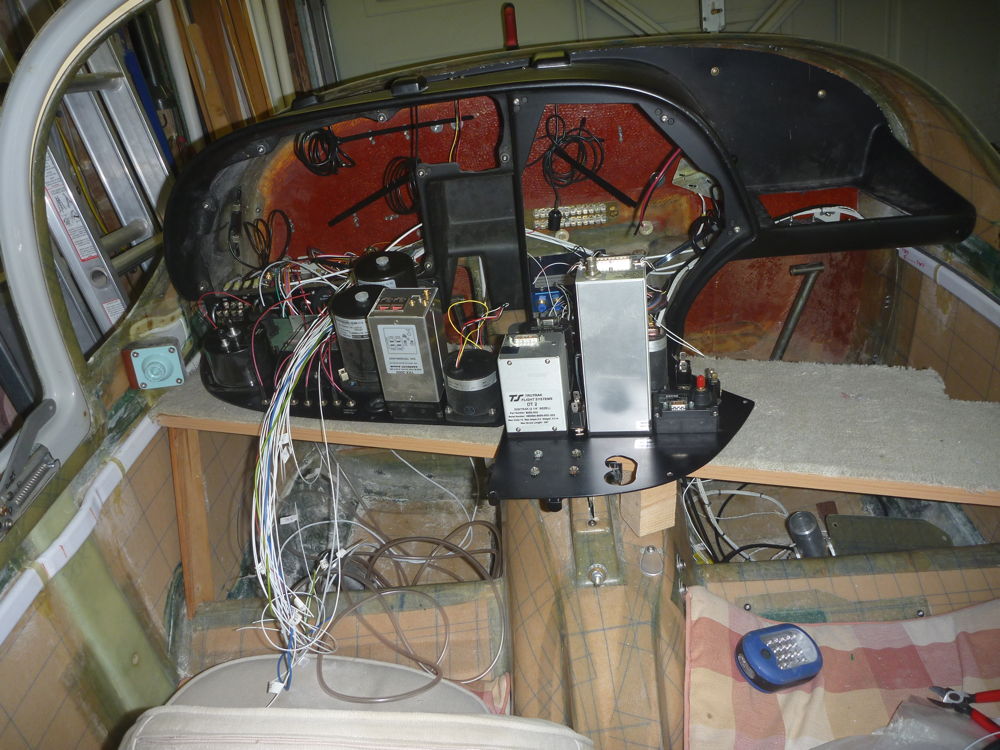

panels on wiring support shelf: 2020-08-18 Panasonic DMC-FT1
The instrument panels resting on the temporary support shelf, with the wires that come through the firewall dangling over it.
