oil vent hose routing: 2023-08-05 Panasonic DC-TZ90

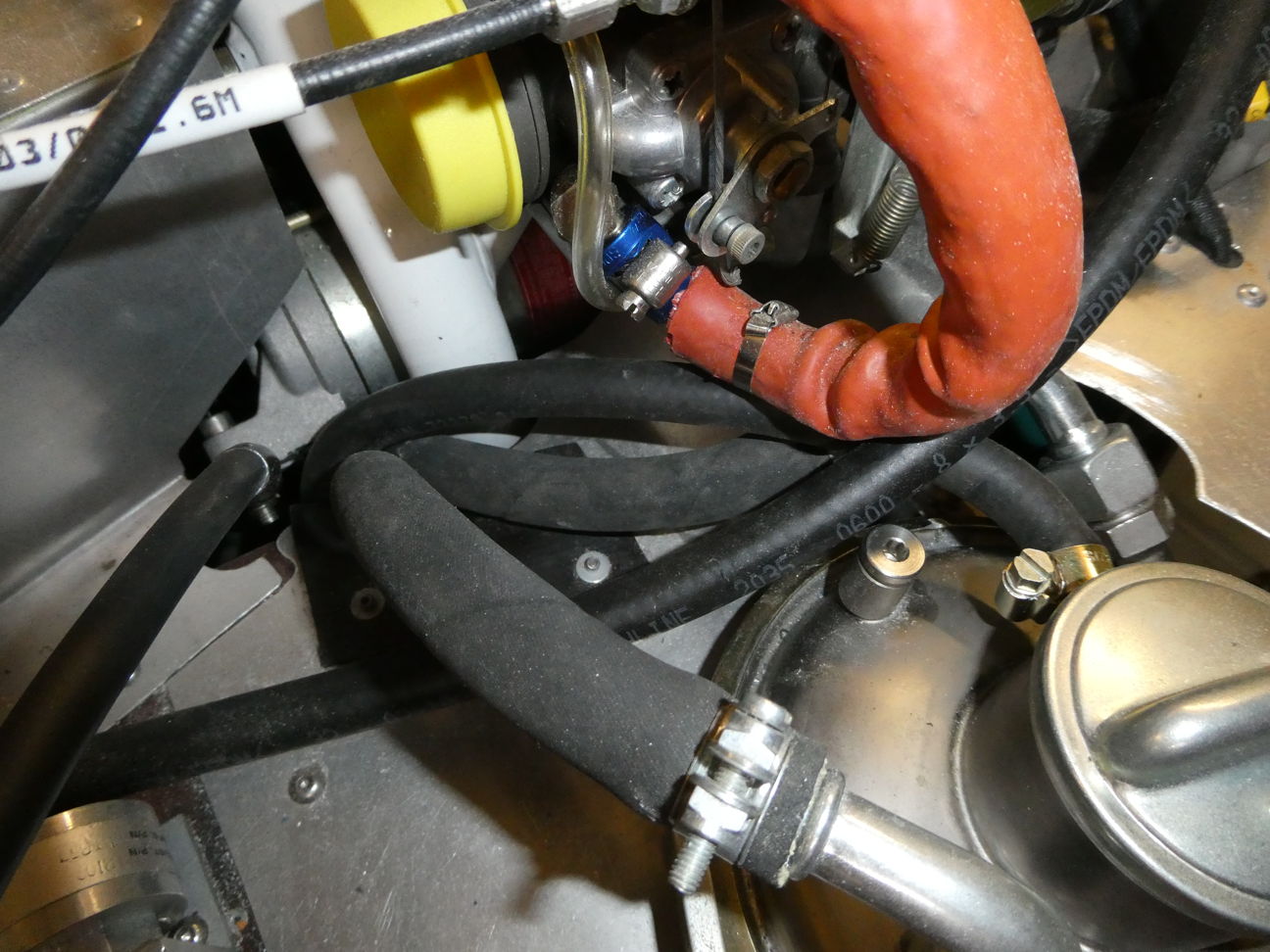

The vent hose connected to the Rotax oil tank vent port (centre right, with hose clip) and routed aft (towards the left of the picture) to go down the face of the firewall, adjacent to the other oil hoses.
