second SWR plot on NanoVNA

comm radio antenna SWR plot

comm radio antenna SWR plot: 2021-02-27 Panasonic DMC-FT1

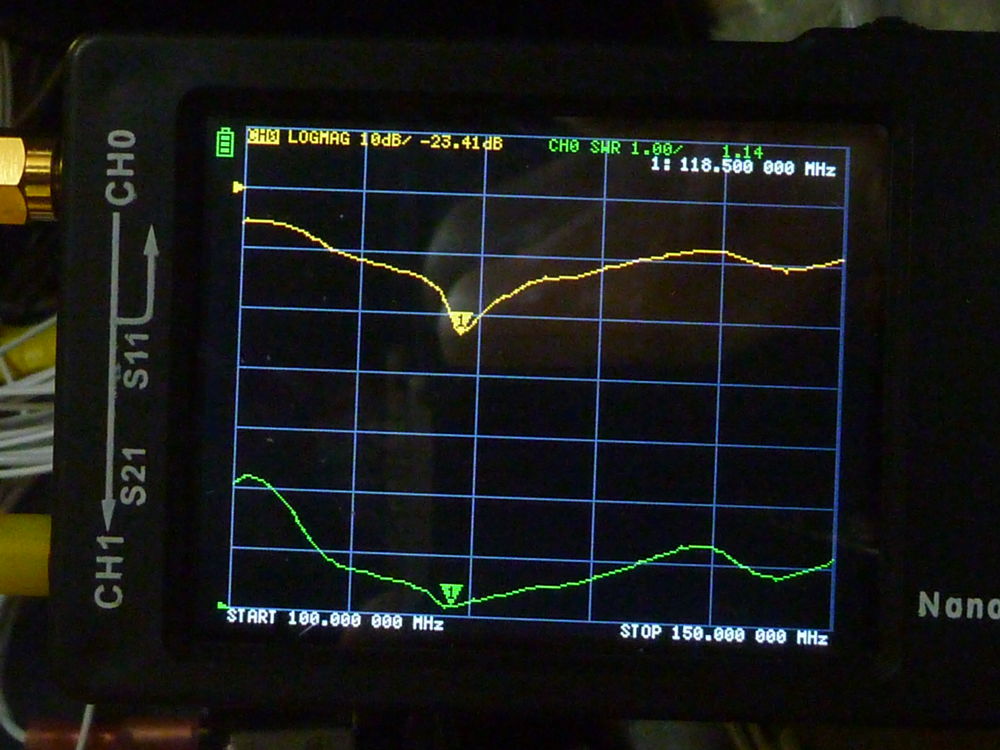

The NanoVNA screen showing a check of the SWR and return-loss for the comm radio antenna. The scan is from 100MHz to 150MHz. This is with the copper tapes shortened by 3mm each end, to give a length of 512mm each half of the dipole. The triangular markers on the plots are at the resonant frequency of the antenna (118.5MHz) and the readout at the top of the screen shows a SWR of 1.14 at that point.
