Main and sub-panel powered up

3 pictures on this page - scroll down to see the rest


main panel powered up

main panel powered up: 2021-01-31 Panasonic DMC-FT1

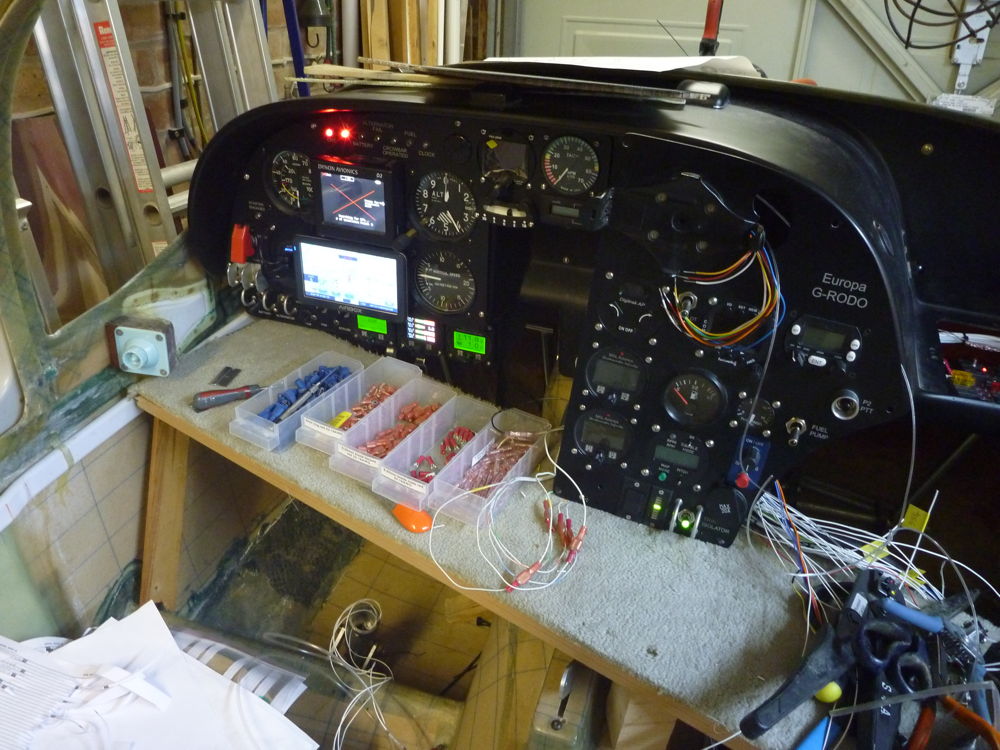

The main instrument panel running, with an external PSU in place of the battery. Now that I have commoned the battery and engine earths, the MGL TP-3 in the middle of the sub-panel is lighting up. Also working are the Dynon D2 and Airbox Aware, although neither is getting much of a GPS signal inside the garage.


main panel powered up

main panel powered up: 2021-01-31 Panasonic DMC-FT1

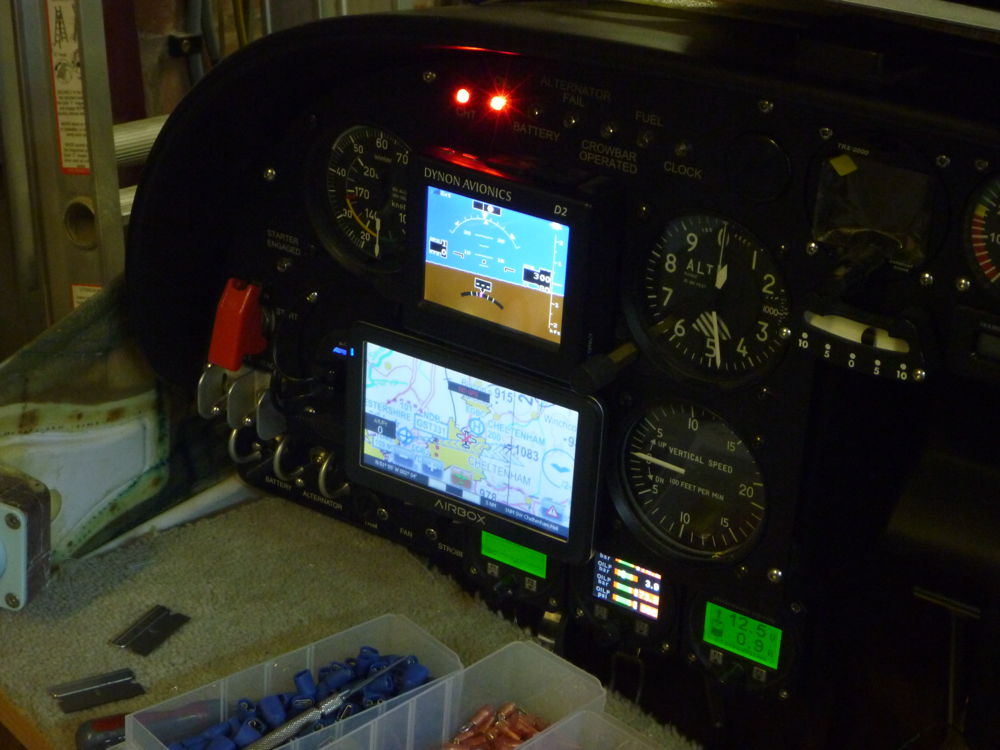

The main instrument panel running, with an external PSU in place of the battery. Despite being inside, the Dynon D2 has managed to find enough of a GPS signal to erect the artificial horizon.


sub-panel powered up

sub-panel powered up: 2021-01-31 Panasonic DMC-FT1

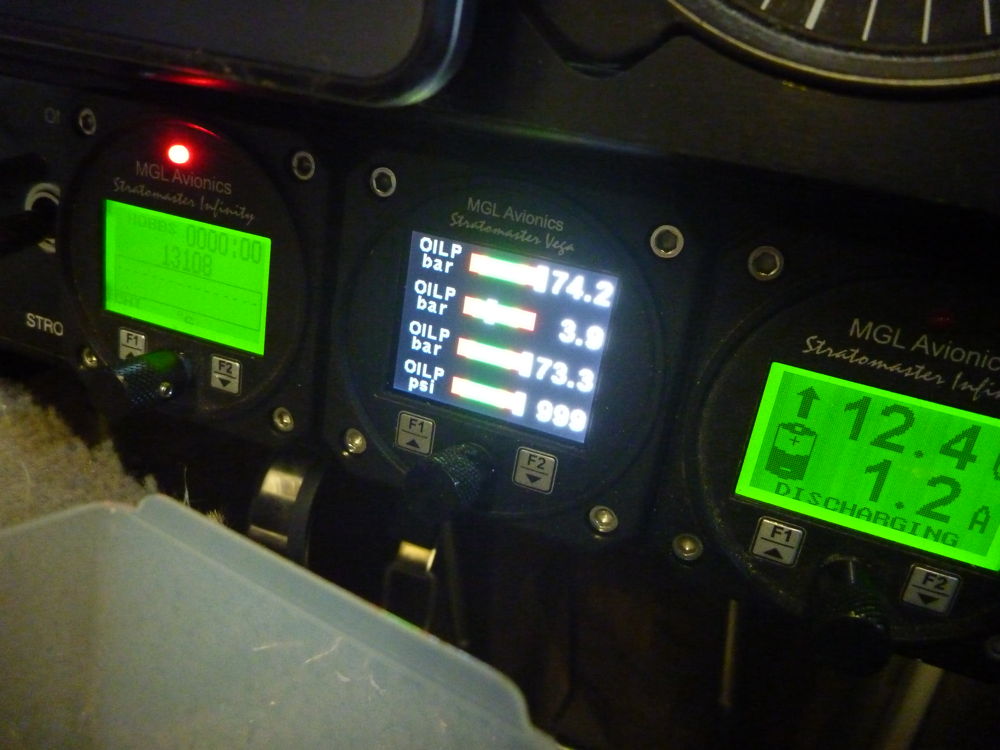

The MGL instruments E-3 (left), TP-3 (centre) and BAT-1 (right) powered up. BAT-1 is already giving a sensible reading. E-3 & TP-3 will both need some configuration before showing useful readings.
