Mark Mod 77 bracket position

Marking rudder bellcrank bracket position

Marking rudder bellcrank bracket position: 2013-07-08

Panasonic Lumix DMC-FT1

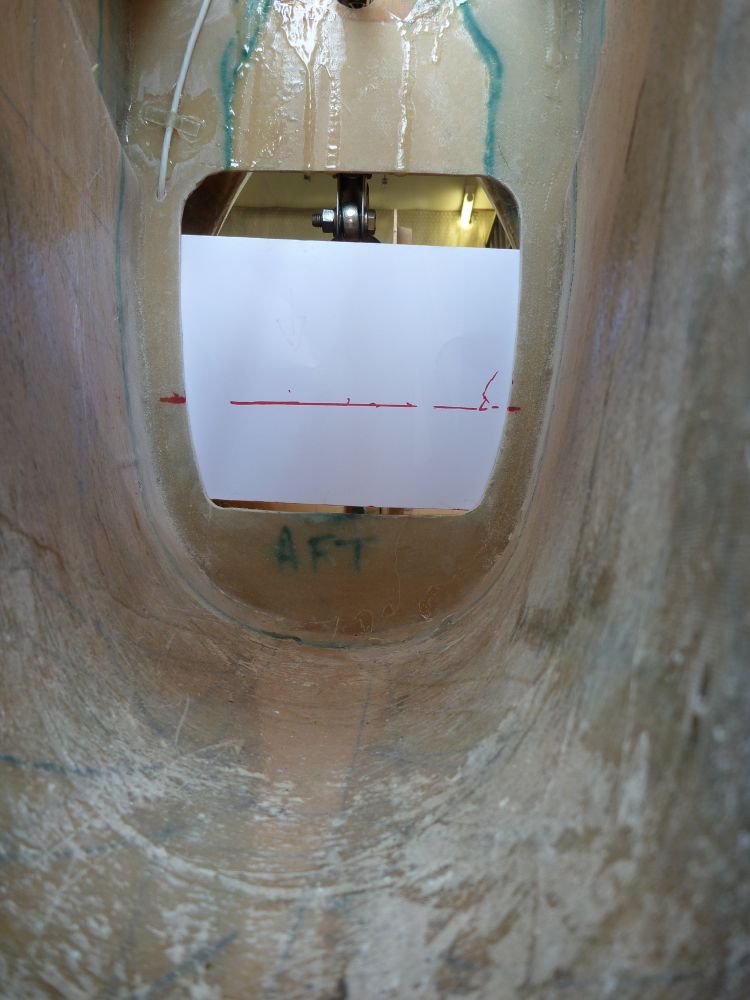

I taped a piece of card to the forward face of the rear bulkhead, then marked on that a point 5" up from the fuselage inner skin at the centre. With the fuselage set level thwartwise, I used a short spirit-level to extend that point to the bulkhead on each side. Only after seeing this picture did I realise how careless I'd been on some previous work, leaving drips of epoxy on the aft face of the rear bulkhead.
