CS10 pivot markings

CS10 pivot marked for movement

CS10 pivot marked for movement: 2009-05-05

Nikon Coolpix 8400

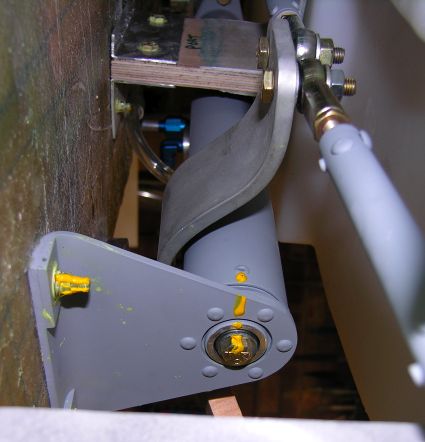

The port end of CS10 with the pivot bolt and adjacent parts marked with inspectors lacquer so that any slackening of the bolt can be detected. The stiffnuts securing the CS09 flange have also been marked. Note that the aileron pushrod ball-ends are still fitted with plain nuts at this stage, as I don't know how many times I will have to dismantle them again.
