audio output wiring: 2020-05-23 Panasonic DMC-FT1

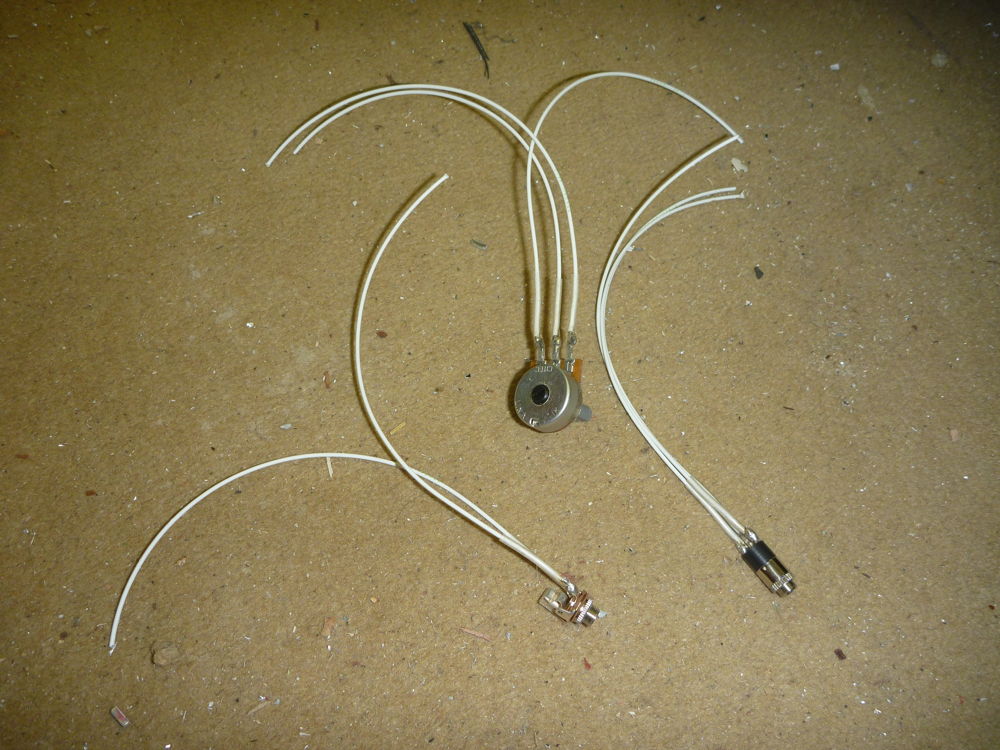

The 3.5mm jack sockets and the potentiometer all have solder tag connexions. Here wires have been soldered to all the tags and the solder joints have been supported by heat-shrink sleeving.
