Grommets for wires entering instrument module
|
|
Grommets for wires entering instrument module |
|
|
 |
Navigation & Acknowledgements |
4 pictures on this page - scroll down to see the rest
grommet on instrument module: 2020-06-16 Panasonic DMC-FT1

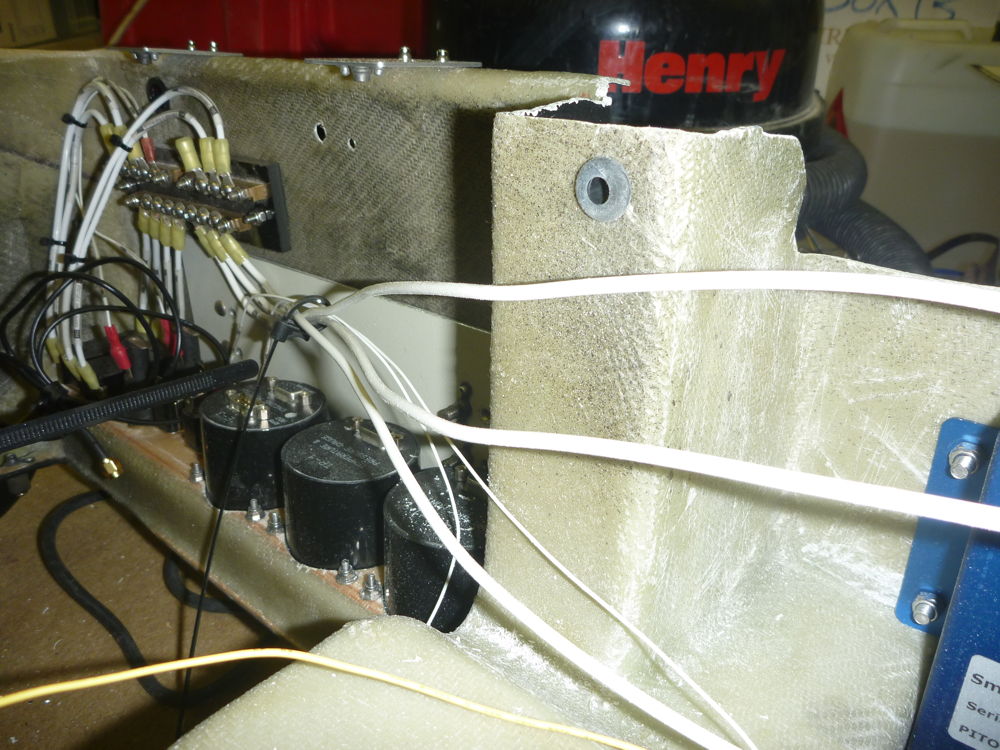

Grommet fitted to bottom of instrument module to accept wire bundle from conduit along port side of fuselage.
grommet on instrument module: 2020-06-16 Panasonic DMC-FT1

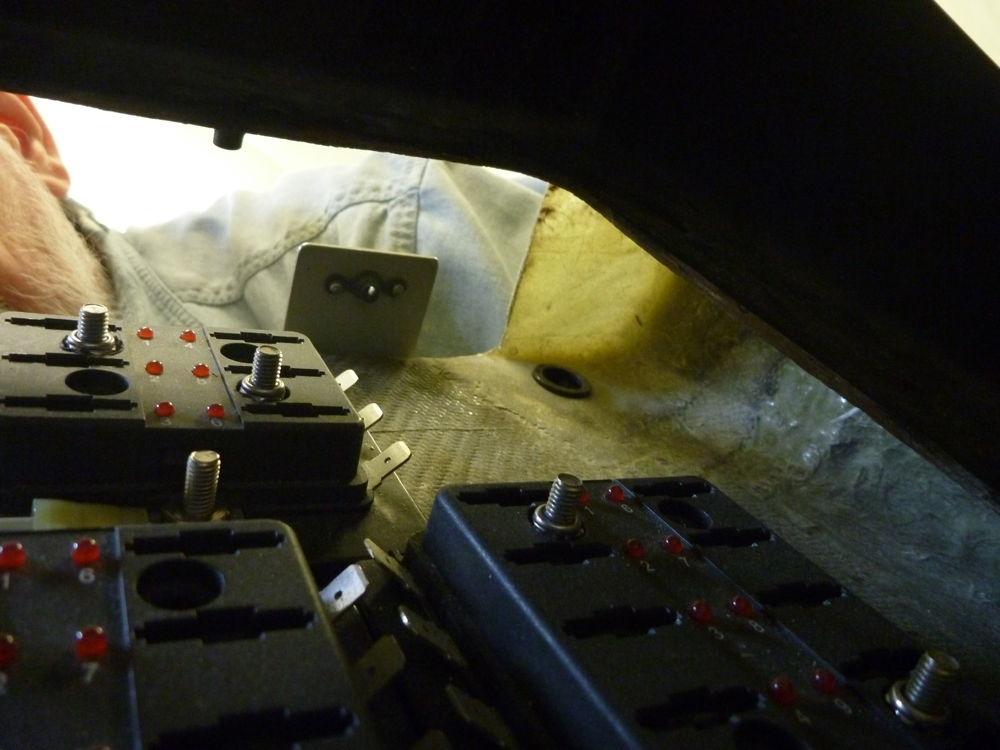

Grommet fitted to bottom of instrument module, under shelf, to accept wire bundle from conduit along starboard side of fuselage.
grommet on instrument module: 2020-06-16 Panasonic DMC-FT1

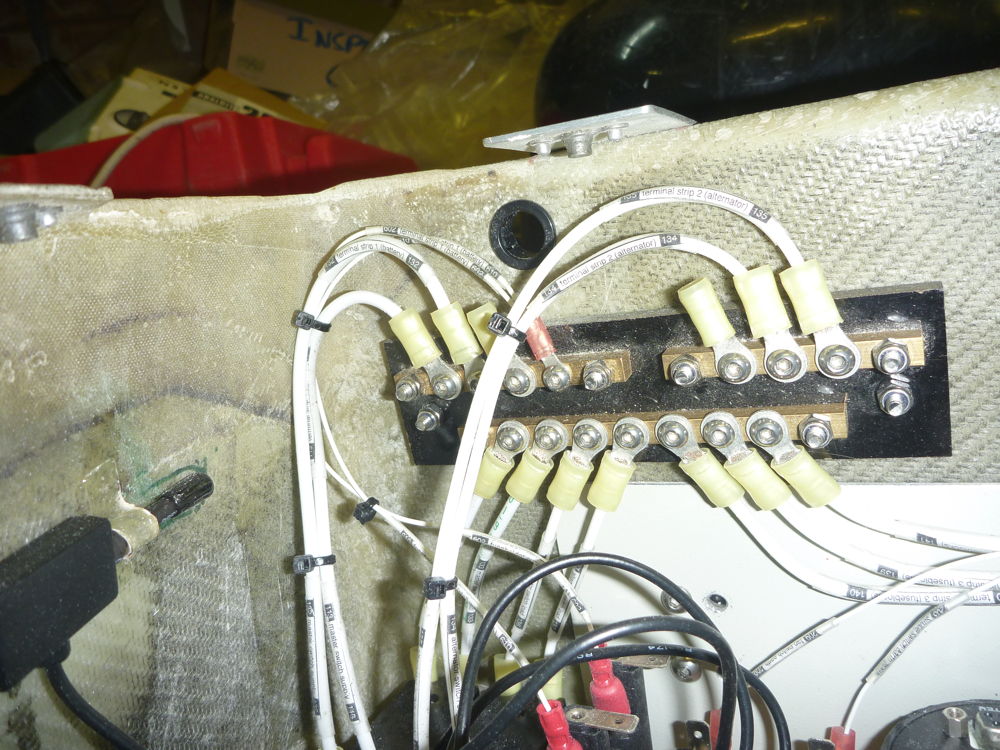

Grommet fitted to bottom of instrument module to accept wire bundle from starboard footwell conduit.
grommet on instrument module: 2020-06-16 Panasonic DMC-FT1

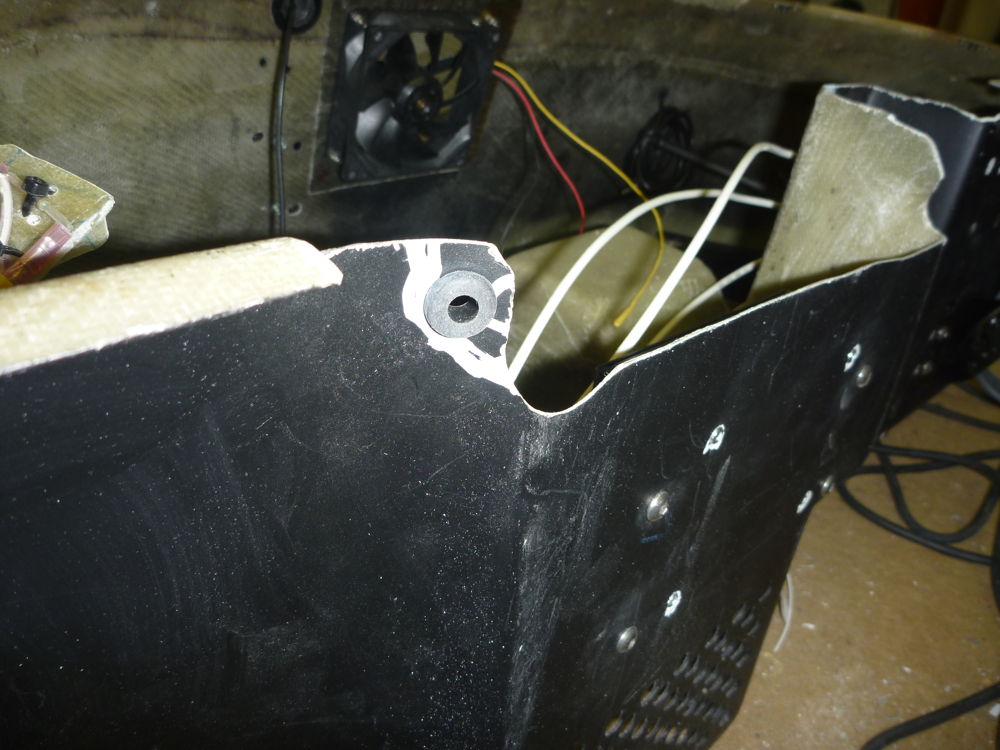

Grommet fitted to bottom of instrument module to accept wire bundle from port footwell conduit.
