bonding sight-gauge tubing bush in tunnel
|
|
bonding sight-gauge tubing bush in tunnel |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest
sight gauge bush bonding: 2022-01-10 Panasonic DMC-FT1

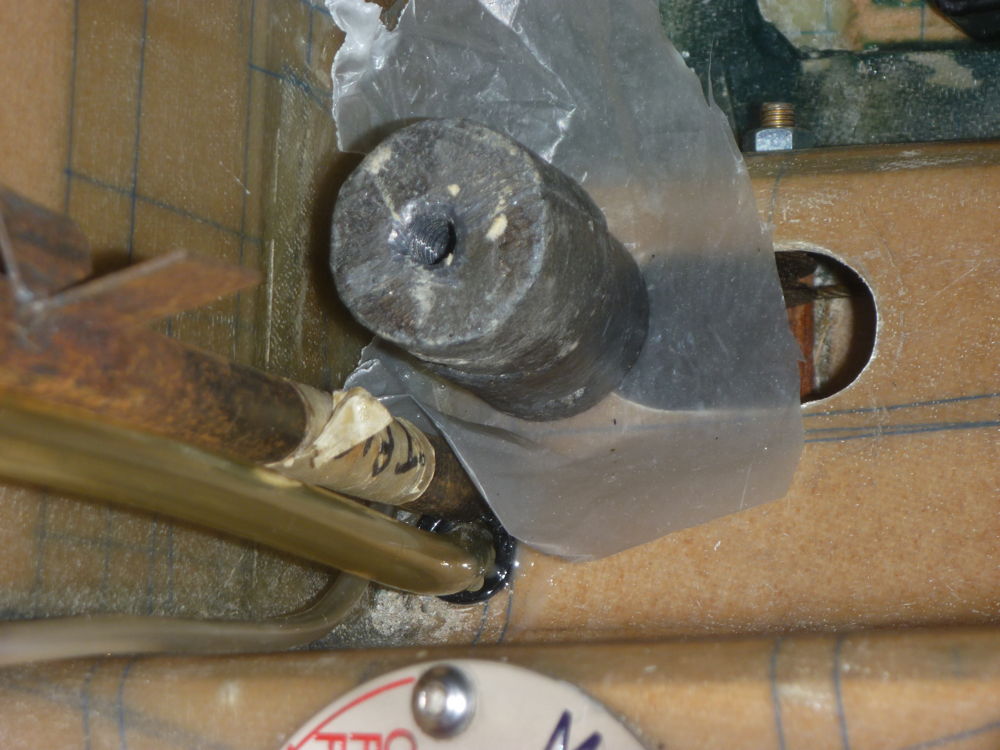

Here are 2 lead weights keeping a clip (not visible!) in place on the fuel weight sensor vent tubing while the epoxy cures. Also visible is a bush being bonded in place where the sight gauge tubing emerges. The somewhat rusty metal tube holding it in position while the epoxy cures is jammed against the cockpit roof.
sight gauge bush bonding: 2022-01-10 Panasonic DMC-FT1

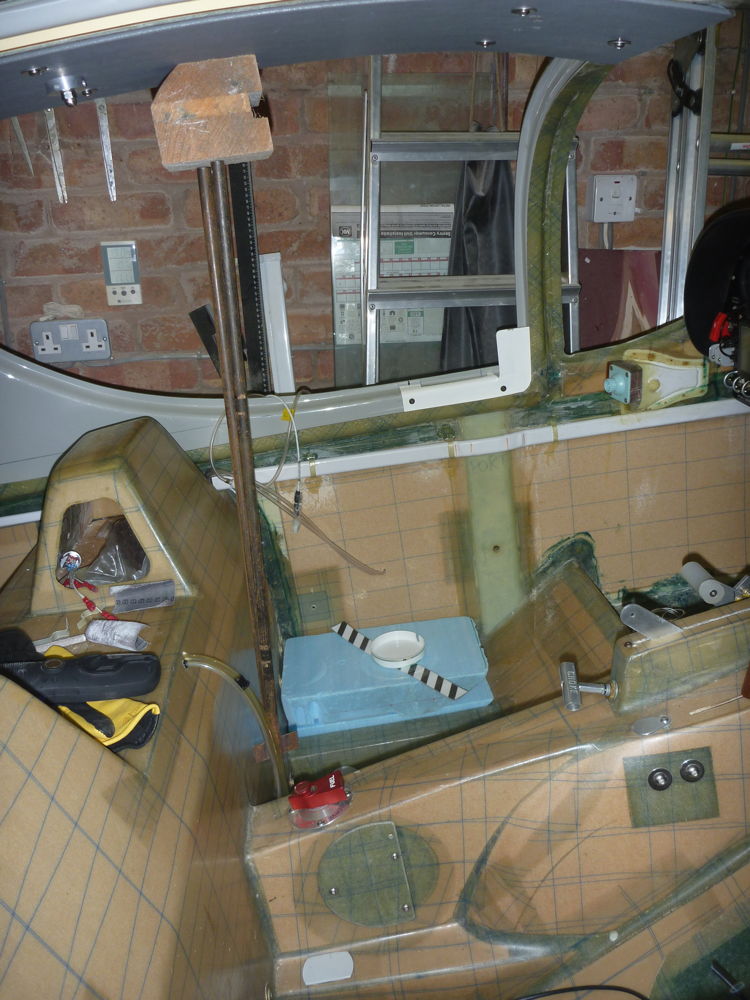

The clamping arrangement for bonding a bush in place where the sight gauge tubing emerges. The somewhat rusty metal tube is jammed between the bush (hidden behind the tunnel - inside the garage I can't get to the port side to take a photo from there) and the cockpit roof with a block of wood while the epoxy cures. Eagle-eyed readers will notice that the tubing is actually the redundant TP18 mass-balance arm from Mod 70.
