fixing brackets for fuel filler cover
|
 |
fixing brackets for fuel filler cover
brackets for fuel filler cover: 2022-07-26 Panasonic DMC-FT1

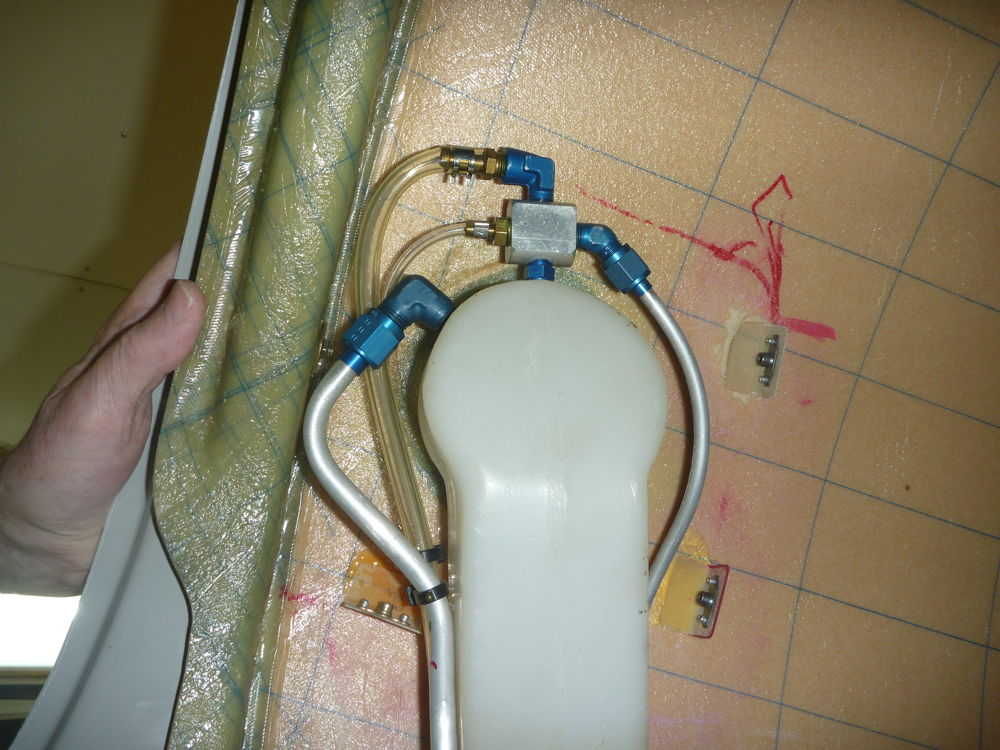

The 3 brackets bonded in place around the fuel filler head, to secure the cover. This illustrates well the pipework and fittings that the cover will protect from impact damage. The 3/8" aluminium pipe on the left is the breather from the top of the fuel tank. The larger (6.5mm ID) clear polyurethane tubing on the uppermost elbow fitting is the sight gauge. The smaller (1/8" ID) clear polyurethane tubing on the aluminium manifold is the vent from the fuel weight sensor. The 1/4" aluminium pipe on the right is the breather to atmosphere which exits underneath the fuselage.
|
