trial fit of silencer
|
|
trial fit of silencer |
|
|
 |
Navigation & Acknowledgements |
3 pictures on this page - scroll down to see the rest

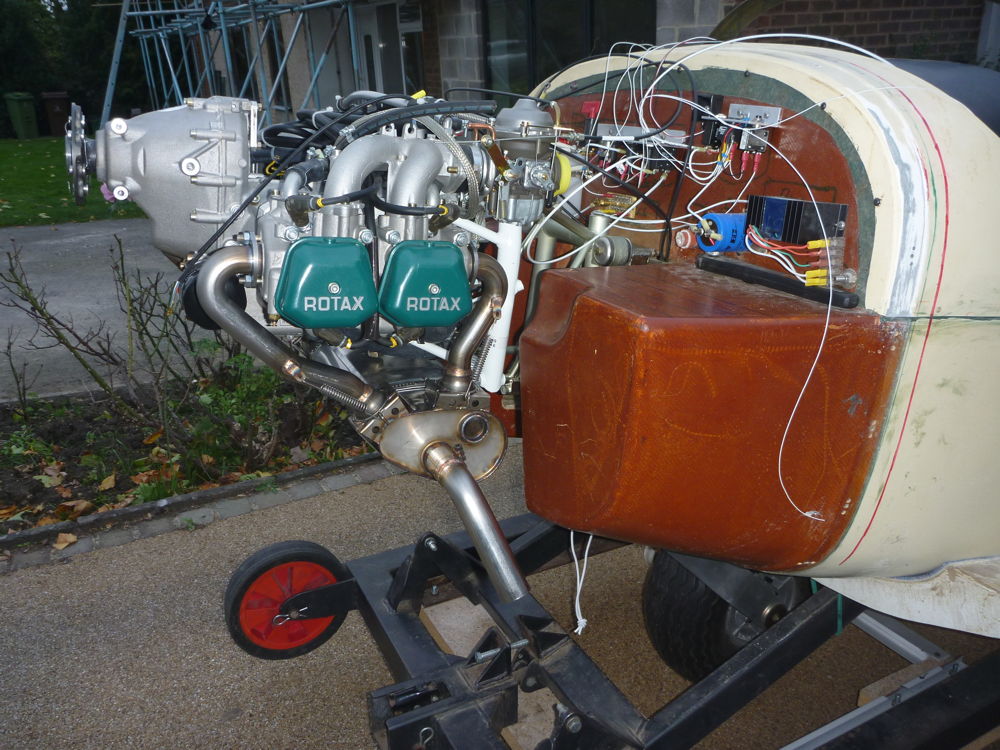

fitting silencer: 2016-10-06 Panasonic DMC-FT1
Trial fit of silencer to engine.

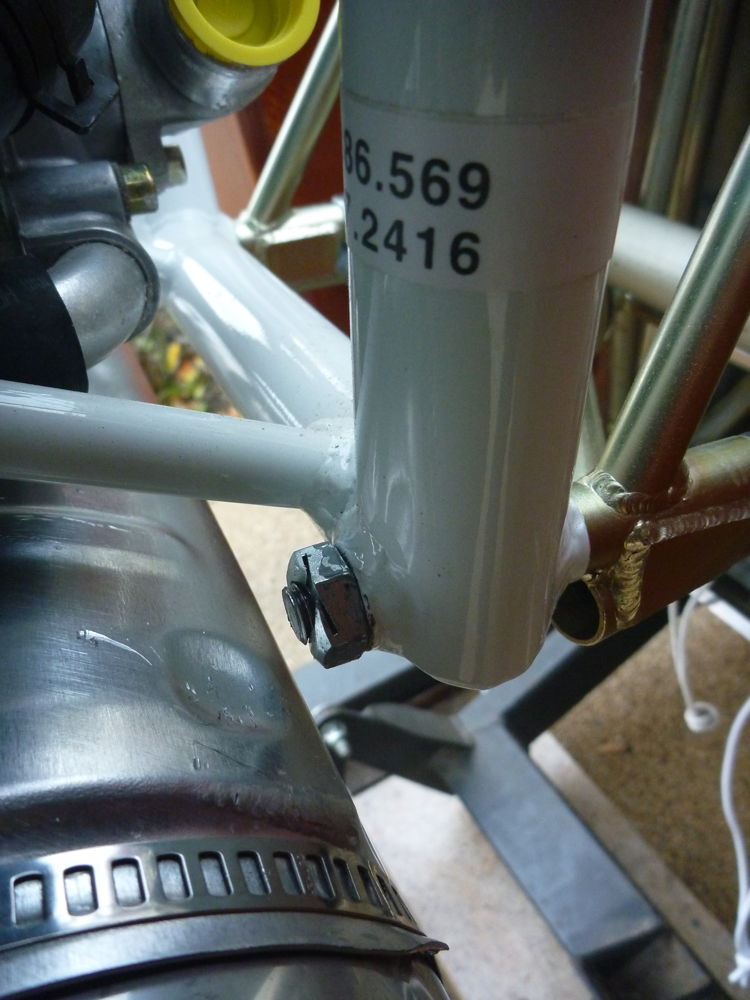

fitting silencer- screw clearance: 2016-10-06 Panasonic DMC-FT1
Trial fit of silencer to engine, showing clearance between starboard bottom M10 x 110mm capscrew and silencer body.
fitting silencer- screw clearance: 2016-10-06 Panasonic DMC-FT1
Trial fit of silencer to engine, showing clearance between end of port bottom M10 x 110mm capscrew and silencer body. However, the stiffnut is no longer in safety (2 threads showing) because the screw was shortened excessively in an attempt to fit it head-aft in the bottom starboard position. This screw will be replaced.
