bonding fin tip
|
|
bonding fin tip |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest
fin tip starboard: 2014-10-01
Lumix DMC-FT1

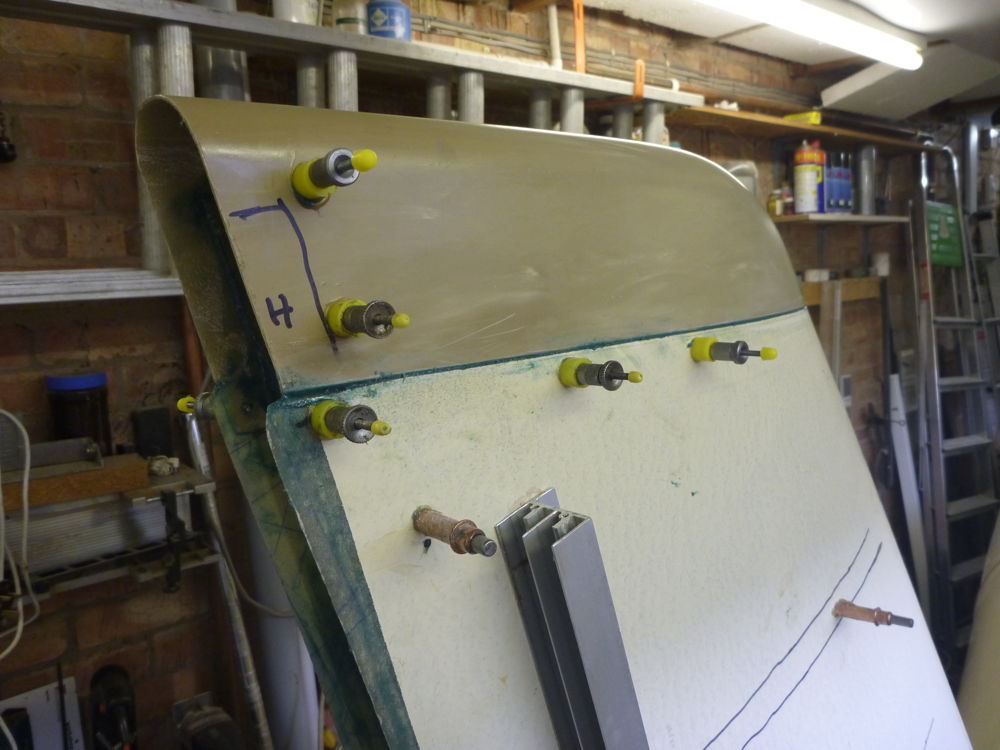

Starboard view of fin tip being bonded on, with skin pins inserted to keep bonds in contact while curing. Further down the fin are clecos holding the flange of the top rib and the sternpost in contact with the inner face of the fin. Also prominent is the aluminium extrusion straightedge holding the edge of the fin true during the bonding operation.
bonding fin tip: 2014-10-01
Lumix DMC-FT1

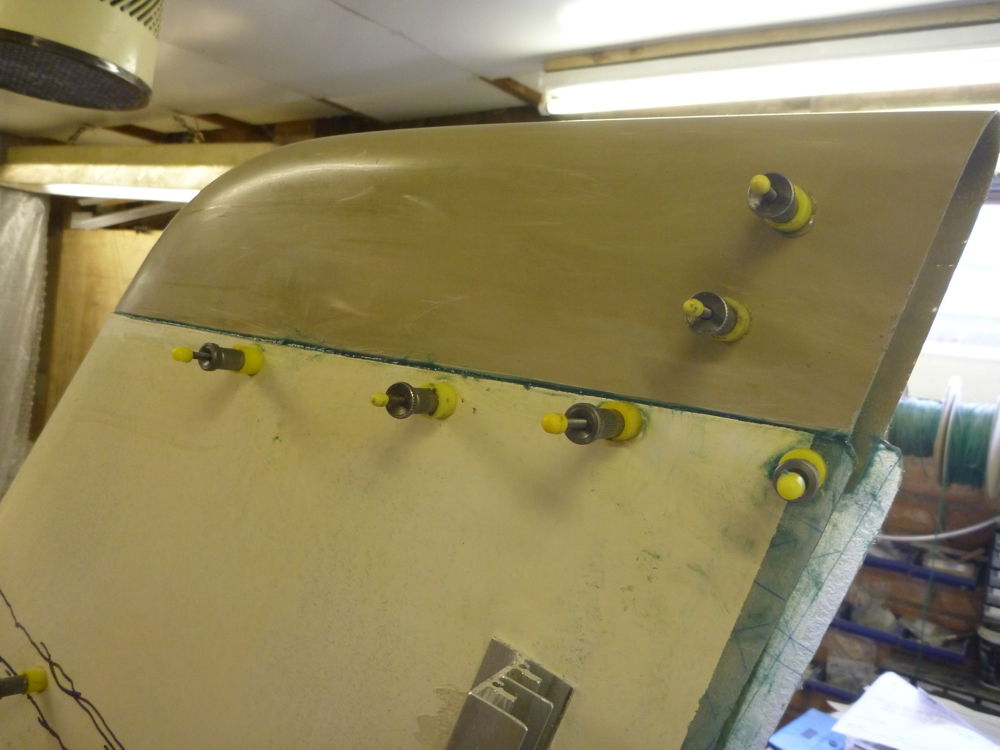

Fin tip being bonded on, viewed from port side, with skin pins inserted to keep bonds in contact while curing. Further down the fin is one of the clecos holding the flange of the top rib in contact with the inner face of the fin, and the top end of the straightedge keeping the fin flange in line while the sternpost was being bonded in.
