Instrument module cutout for radio panel

Cutting hole for radio panel

Cutting hole for radio panel: 2013-12-06

Panasonic Lumix DMC-FT1

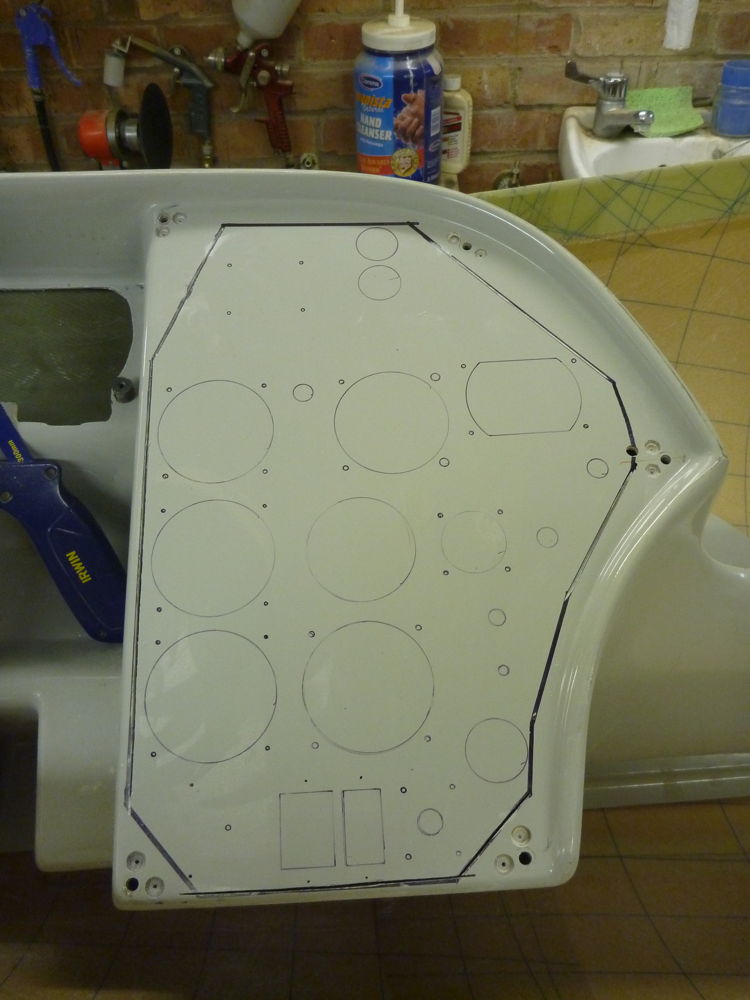

The instrument module F14 marked up, with some cuts already made to clear the instruments that will be mounted on the removable aluminium panel IM02B. I tried to arrange that the cuts were straight lines as far as possible for easy working with the oscillating saw. The appearance of the cutout doesn't matter as it won't be seen.
