Cutting away TE between aileron and flap

3 pictures on this page - scroll down to see the rest


TE flap-aileron junction

TE flap-aileron junction: 2008-04-04

Nikon Coolpix 8400

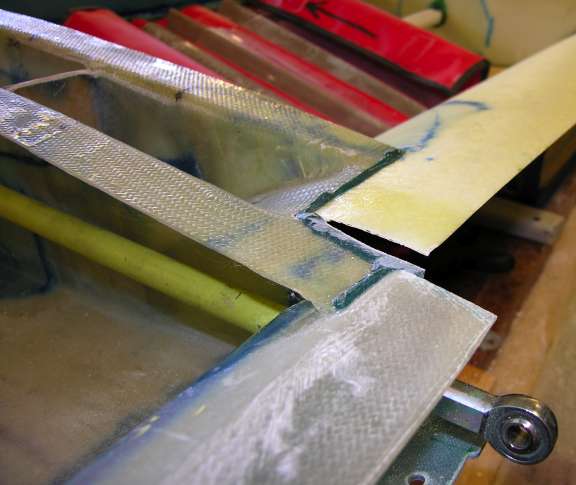

The area between the aileron and flap on the port wing. For proper fitting of the flap, the flange of the TE which covers the flap needs to be able to move a bit from its manufactured position. It is constrained at its outboard end by a vertical piece. On advice from the factory, I cut this away to allow the wing TE to move either up or down as required for the top skin fitting with the flap in place.


TE flap-aileron junction

TE flap-aileron junction: 2008-04-04

Nikon Coolpix 8400

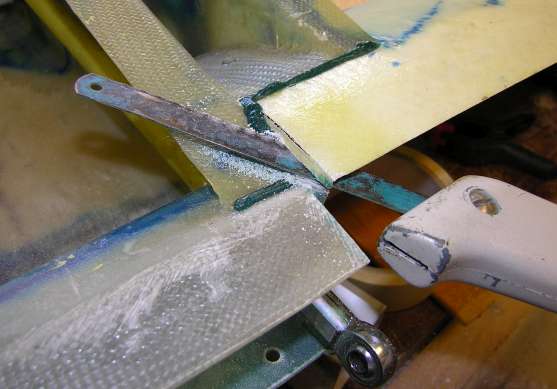

Cutting away the vertical part that constrains the TE over the flap.


TE flap-aileron junction

TE flap-aileron junction: 2008-04-04

Nikon Coolpix 8400

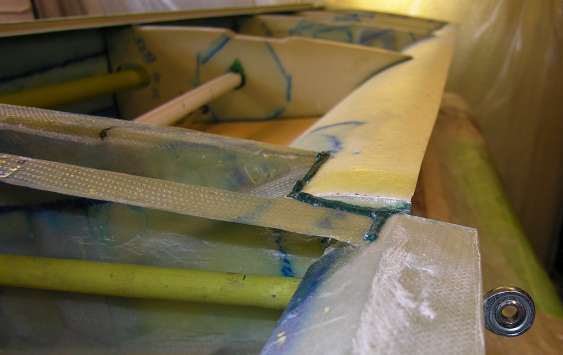

The aileron-flap junction with the small vertical piece cut away.
