Positioning CS09

2 pictures on this page - scroll down to see the rest


Shim on CS11

Shim on CS11: 2008-10-11

Nikon Coolpix 8400

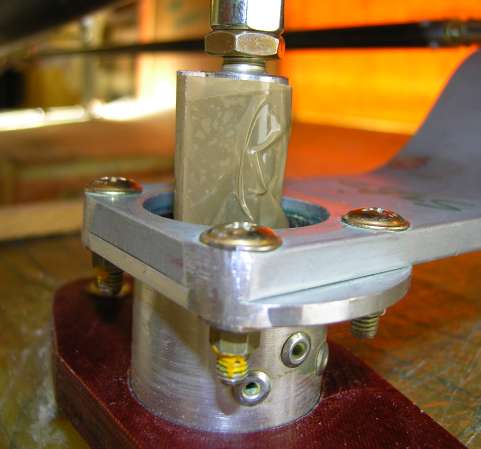

A piece of ply 3mm wide by 4mm thick taped to CS11 as a shim to get the correct clearance from the inside of CS05 while fitting the CS09 flanges.


Positioning CS09

Positioning CS09: 2008-10-11

Nikon Coolpix 8400

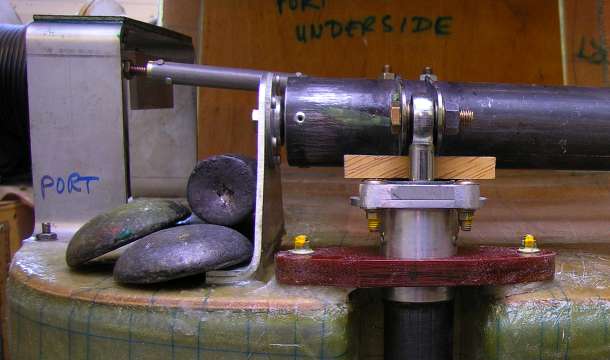

The port CS09 flange weighed down with lead weights to keep it in place while its flox mounting pad cures.
