exhaust hole in cowl
|
|
exhaust hole in cowl |
|
|
 |
Navigation & Acknowledgements |
6 pictures on this page - scroll down to see the rest

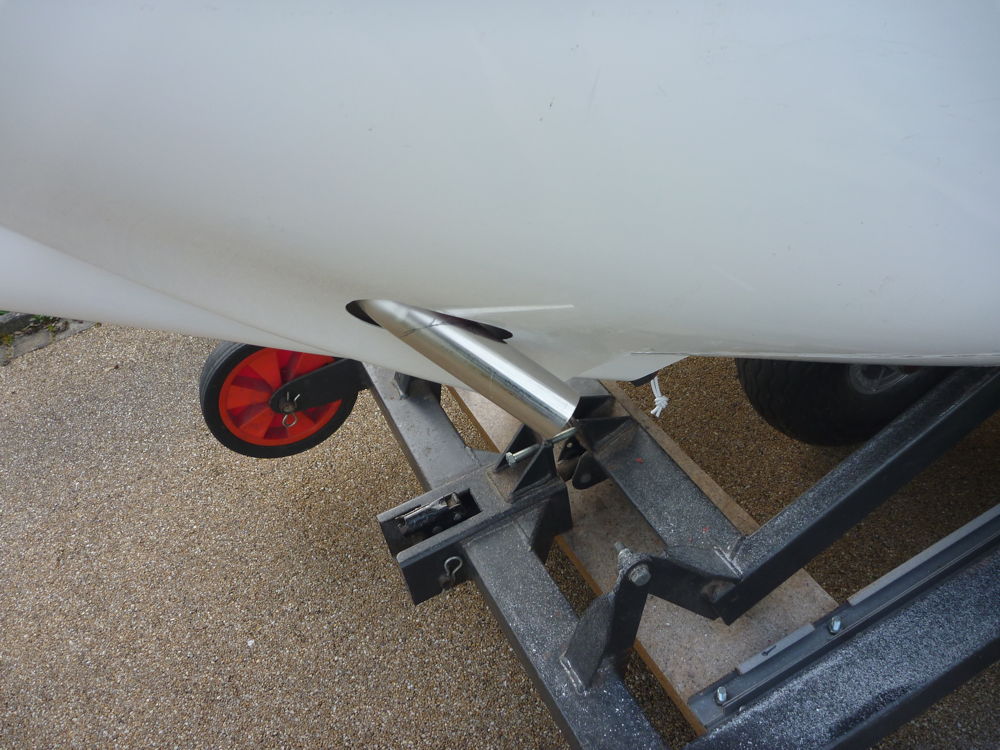

cowl hole for exhaust: 2017-03-13 Panasonic DMC-FT1
The hole made in the lower cowl for the exhaust outlet pipe. It was difficult to know where to start, and as is obvious at this angle, there is a slightly excessive gap at the forward end of the hole.

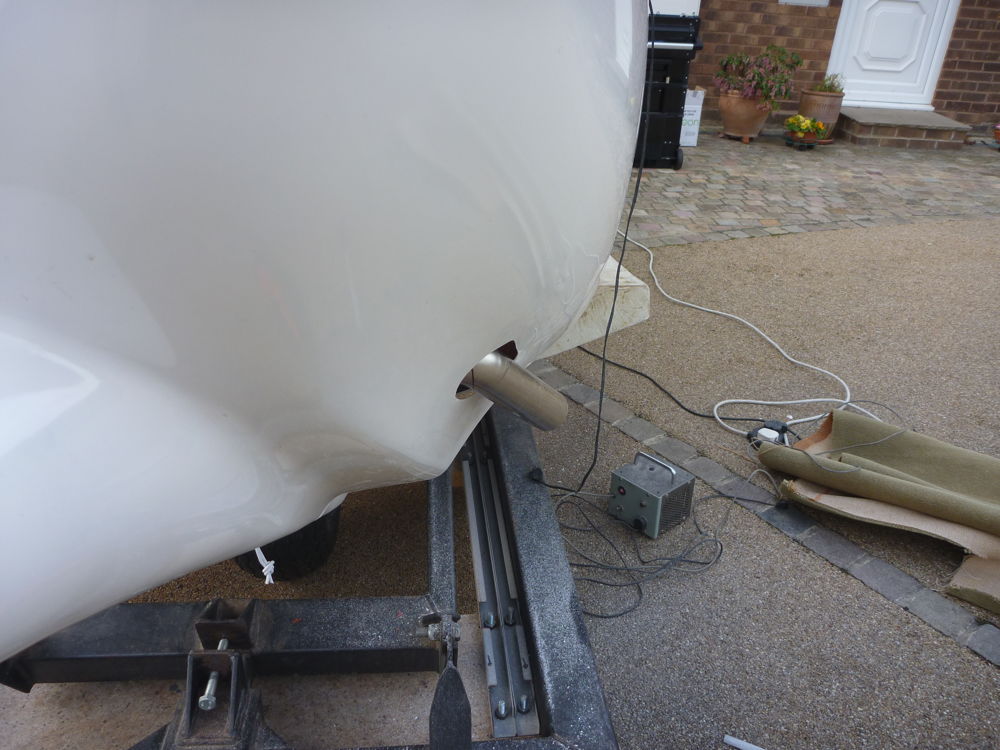

cowl hole for exhaust: 2017-03-13 Panasonic DMC-FT1
The hole made in the lower cowl for the exhaust outlet pipe. I tried to get the pipe facing well aftwards rather than downwards.

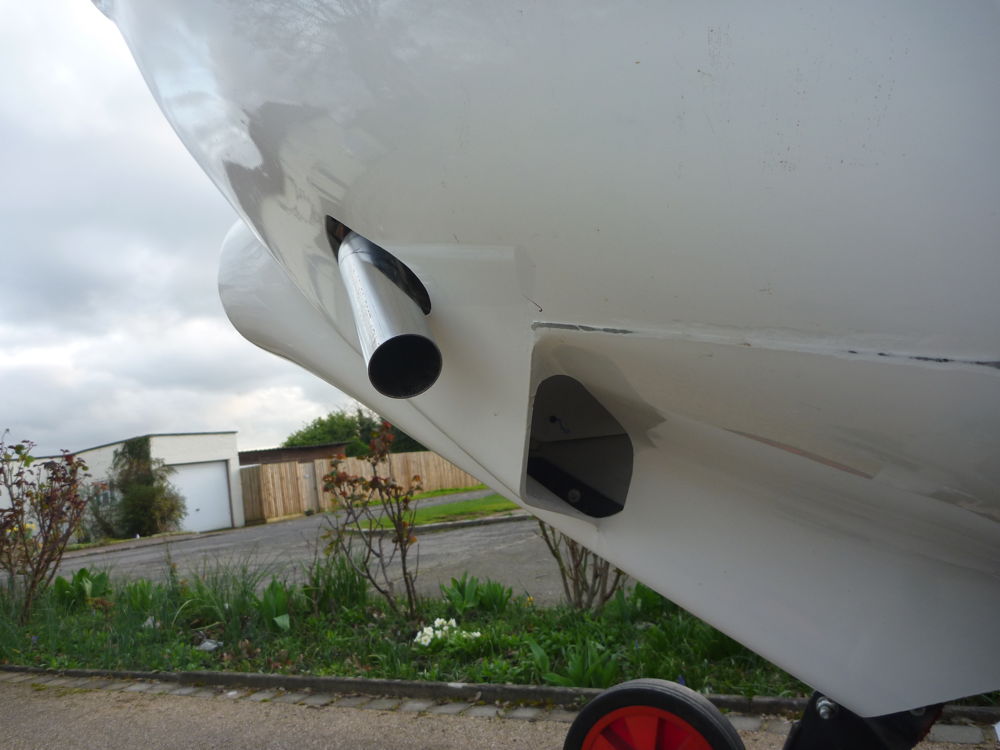

cowl hole for exhaust: 2017-03-13 Panasonic DMC-FT1
The hole made in the lower cowl for the exhaust outlet pipe. I tried to get the pipe facing well aftwards.

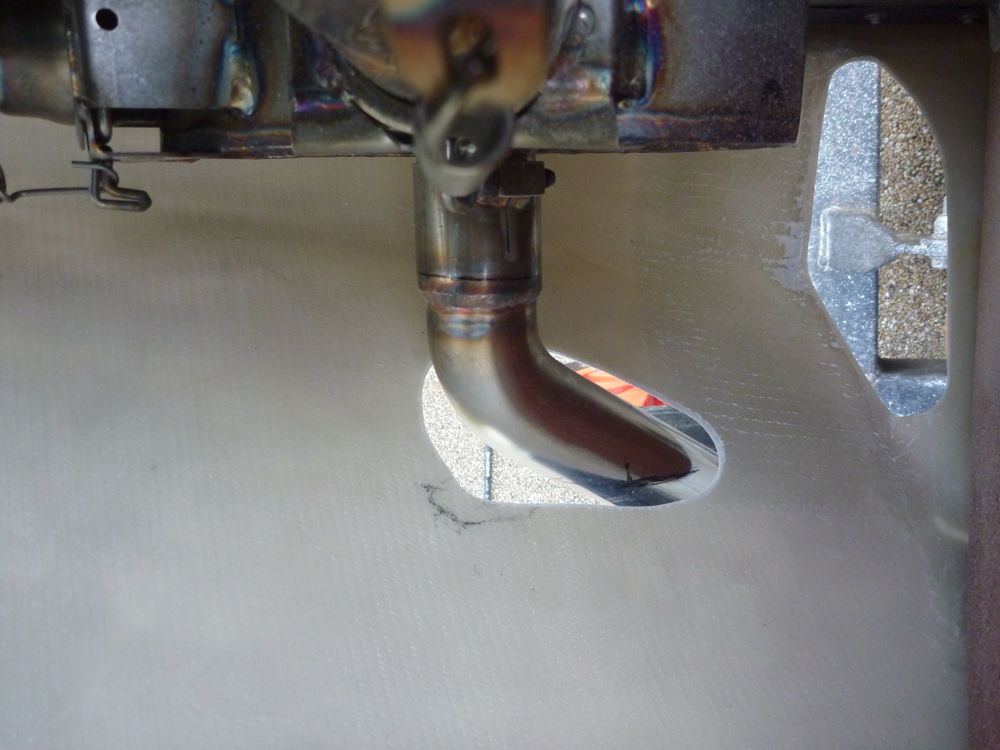

cowl hole for exhaust: 2017-03-13 Panasonic DMC-FT1
The hole made in the lower cowl for the exhaust outlet pipe. It was difficult to know where to start, and as is obvious at this angle, there is a slightly excessive gap at the top forward end of the hole.

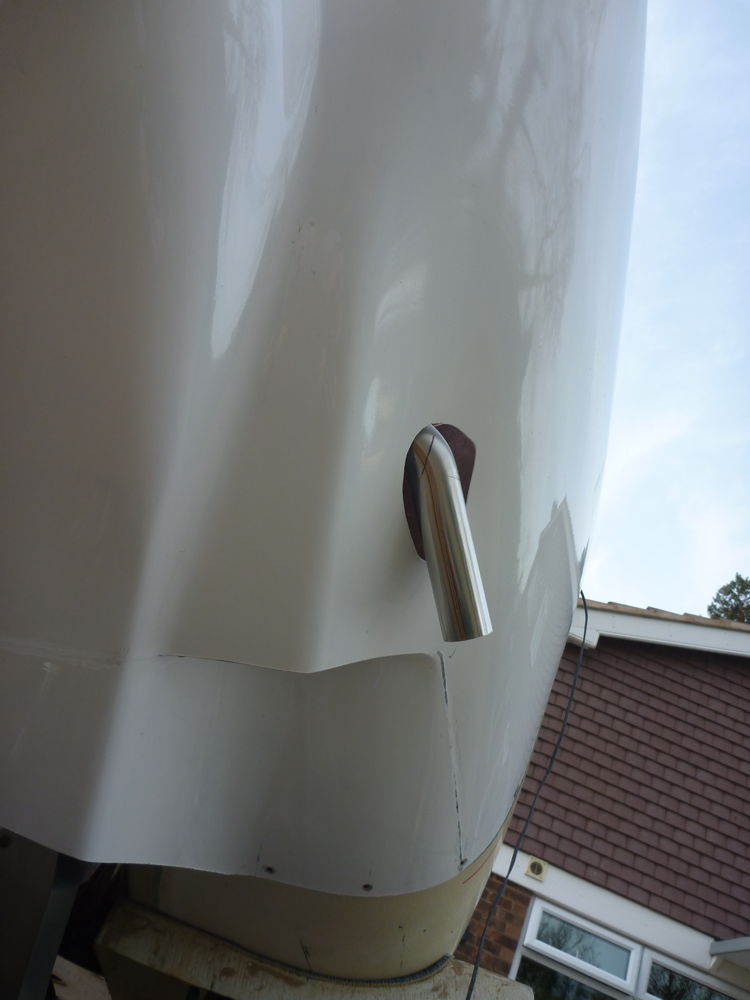

cowl hole for exhaust: 2017-03-13 Panasonic DMC-FT1
The hole made in the lower cowl for the exhaust outlet pipe.

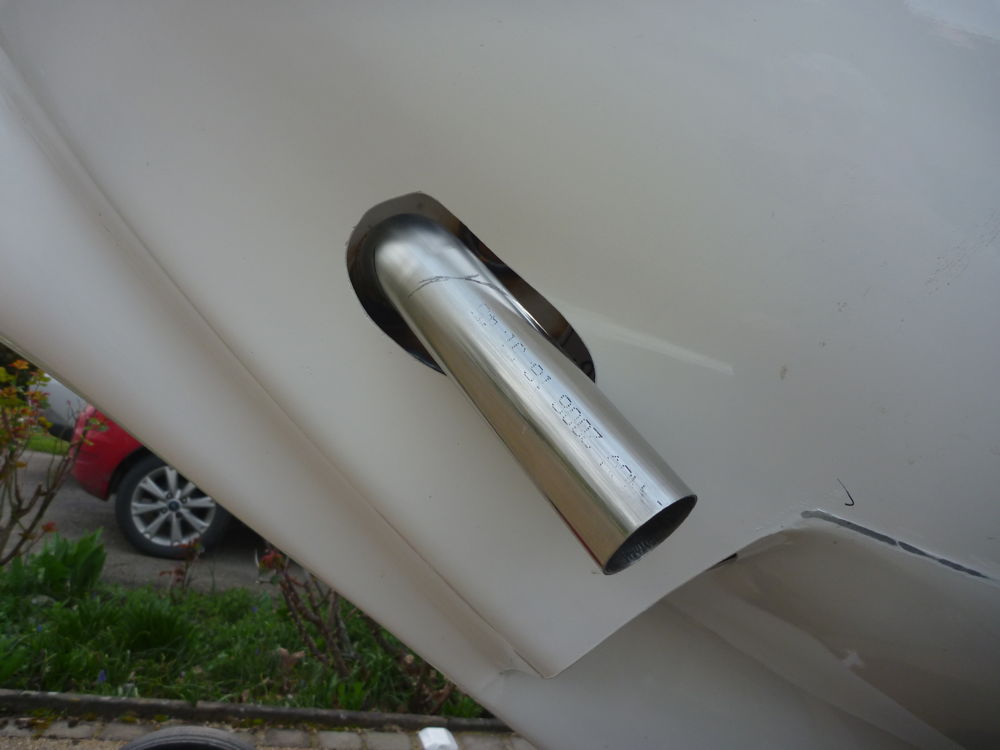

cowl hole for exhaust: 2017-03-13 Panasonic DMC-FT1
The hole made in the lower cowl for the exhaust outlet pipe. It was difficult to know where to start, and as is obvious at this angle, there is a slightly excessive gap at the top forward end of the hole.
