side baffles for oil cooler

4 pictures on this page - scroll down to see the rest


oil cooler side baffles

oil cooler side baffles: 2020-01-08 Panasonic DMC-FT1

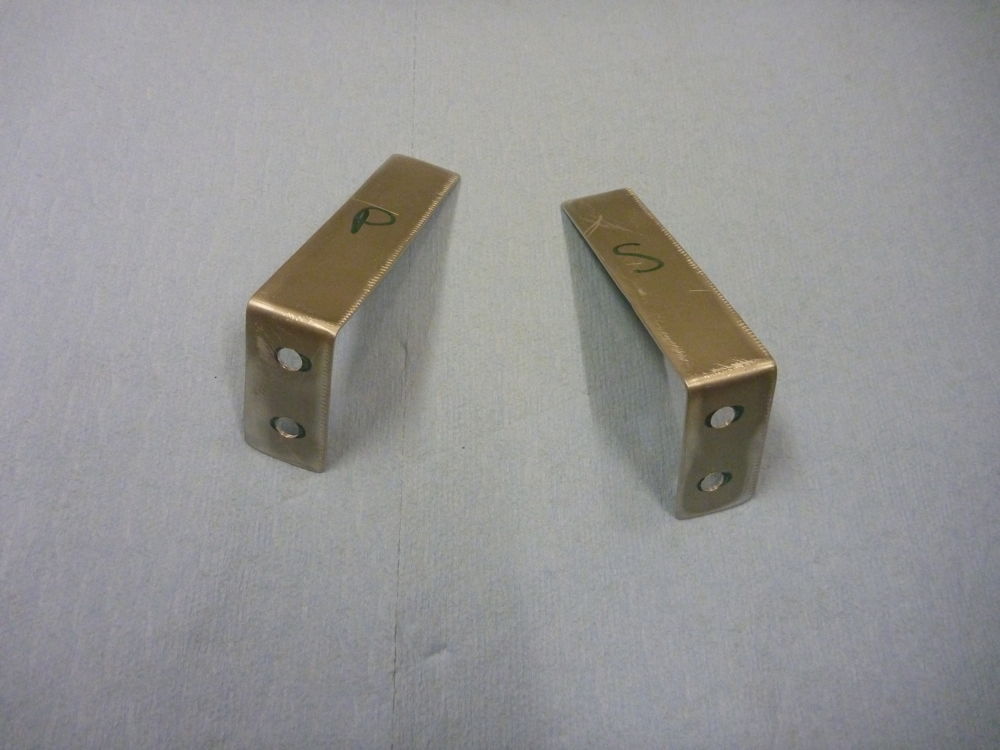

The pieces of aluminium bent to form baffles to close the gaps at the sides of the oil cooler.


oil cooler side baffle

oil cooler side baffle: 2020-01-08 Panasonic DMC-FT1

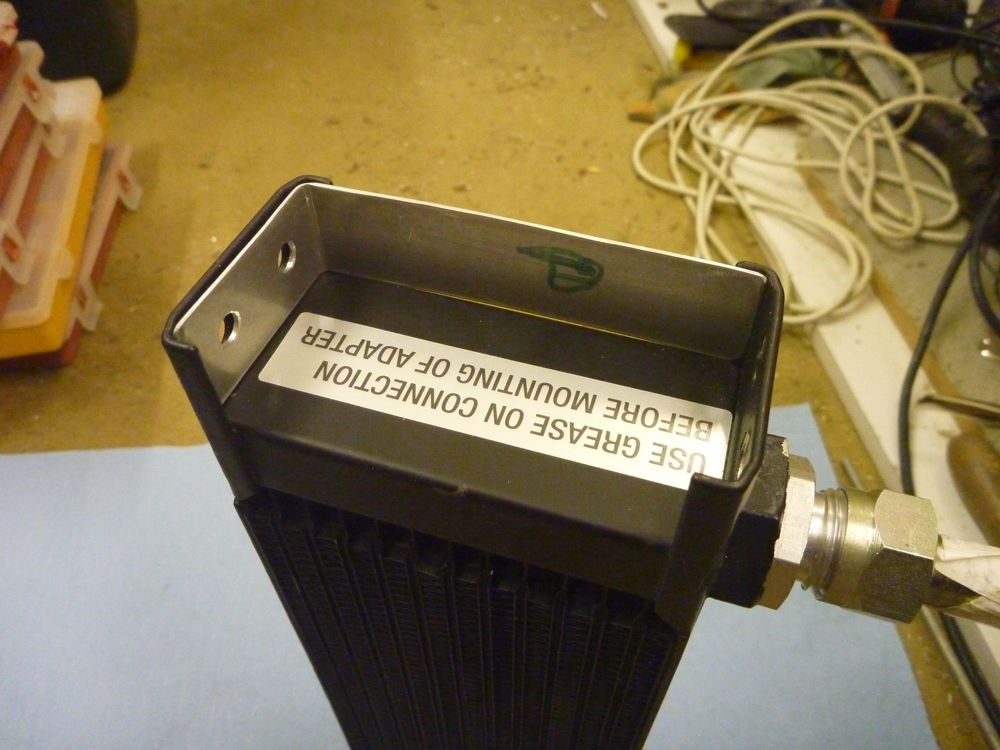

The port side baffle for the oil cooler.


oil cooler side baffle

oil cooler side baffle: 2020-01-08 Panasonic DMC-FT1

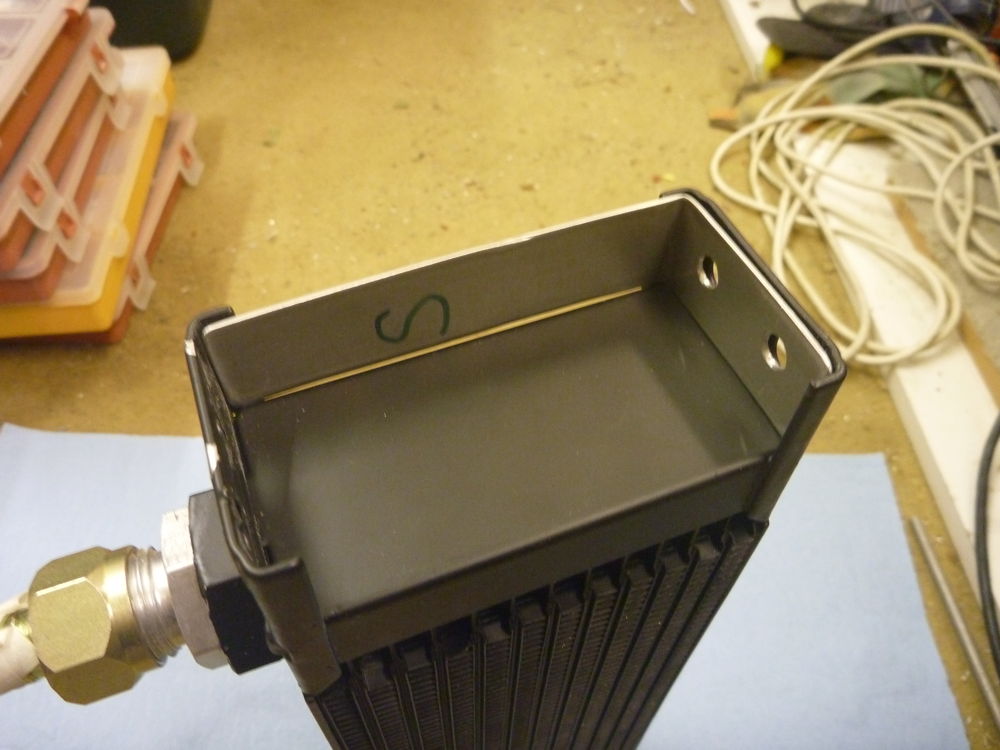

The starboard side baffle for the oil cooler.


oil cooler side baffles

oil cooler side baffles: 2020-01-08 Panasonic DMC-FT1

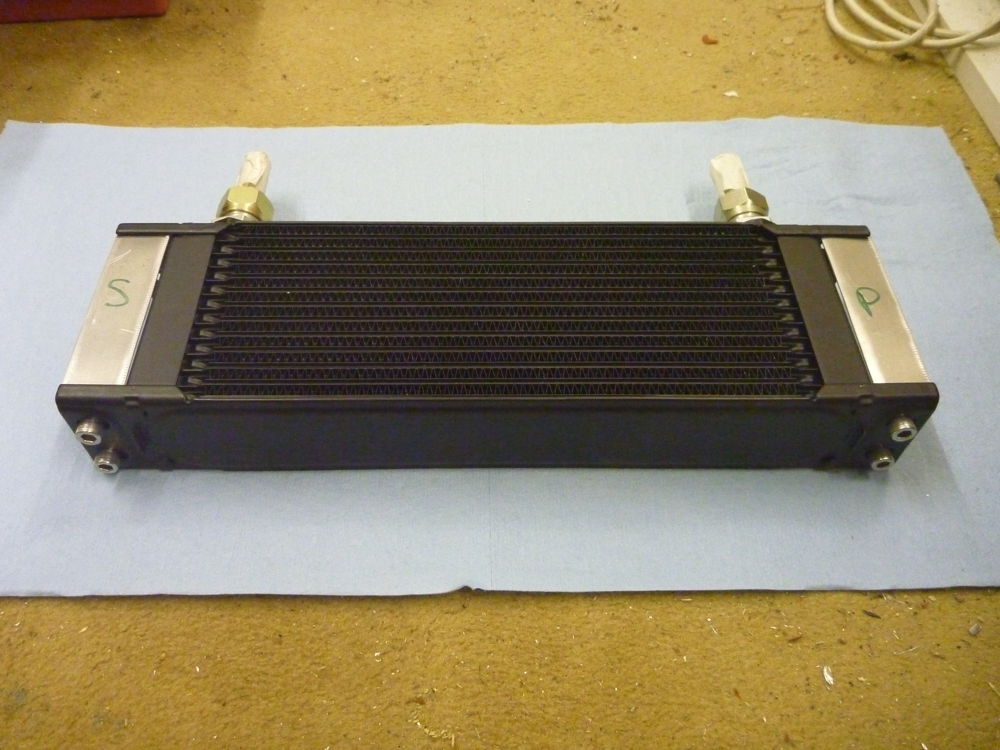

The side baffles fitted to the oil cooler.
