making oil cooler bottom baffle

2 pictures on this page - scroll down to see the rest

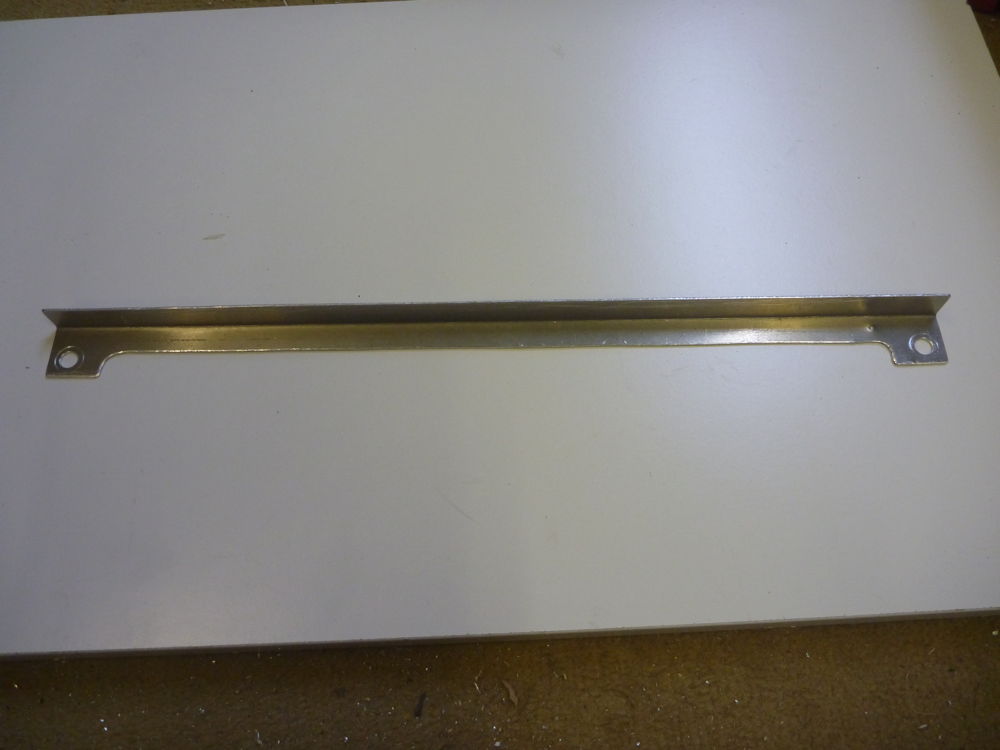

oil cooler bottom baffle angle

oil cooler bottom baffle angle: 2020-01-31 Panasonic DMC-FT1

The aluminium angle for the baffle to close the gap between the bottom of the oil cooler and the inside of the cowl.

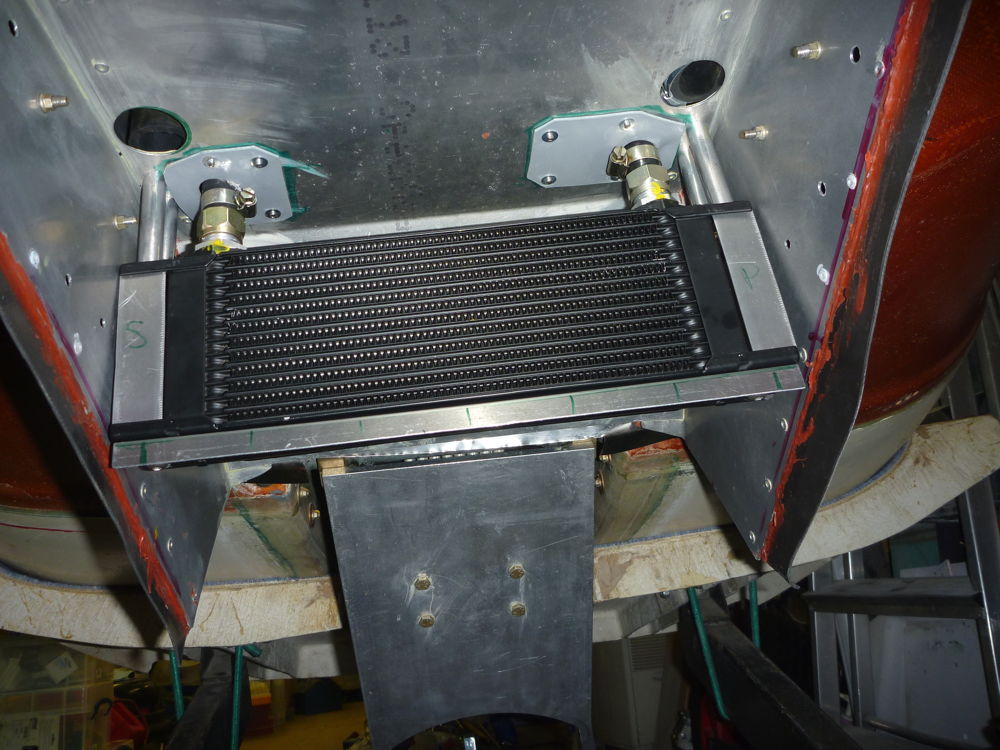

oil cooler bottom baffle angle

oil cooler bottom baffle angle: 2020-01-31 Panasonic DMC-FT1

A test fit of the aluminium angle for the baffle to close the gap between the bottom of the oil cooler and the inside of the cowl.
