pulling comm antenna coax through

4 pictures on this page - scroll down to see the rest


comm antenna coax fitting

comm antenna coax fitting: 2020-07-30 Panasonic DMC-FT1

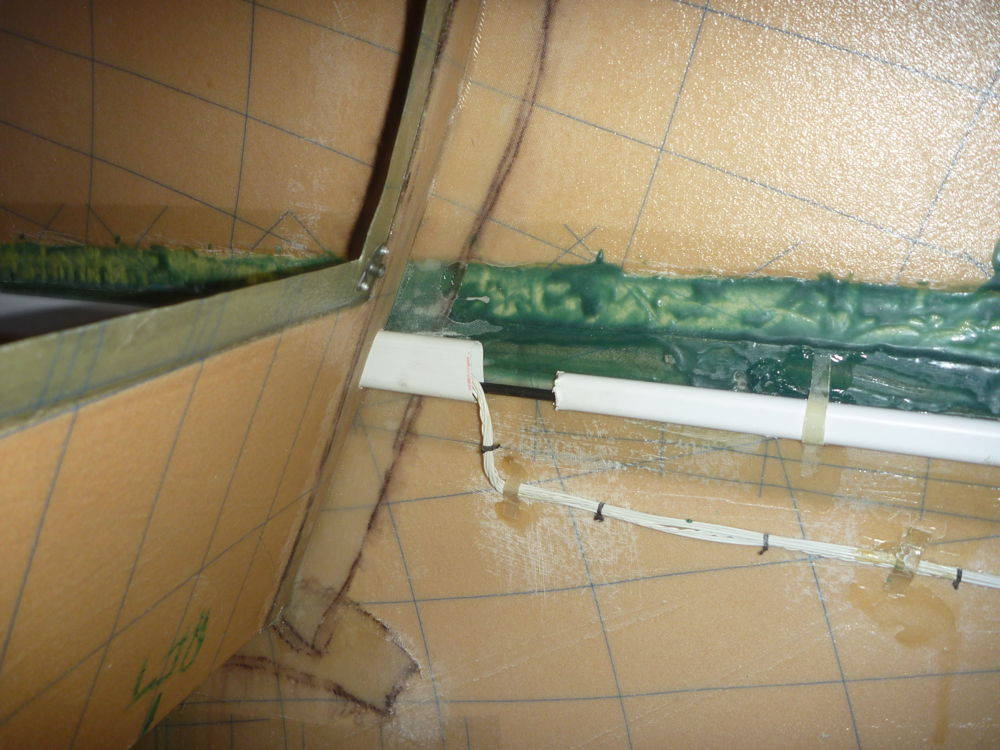

Starboard side of fuselage behind the baggage bay D-bulkhead. The aft section of (smaller) conduit has been cut back slightly to allow access to the coax cable between the 2 conduits.


comm antenna coax fitting

comm antenna coax fitting: 2020-07-30 Panasonic DMC-FT1

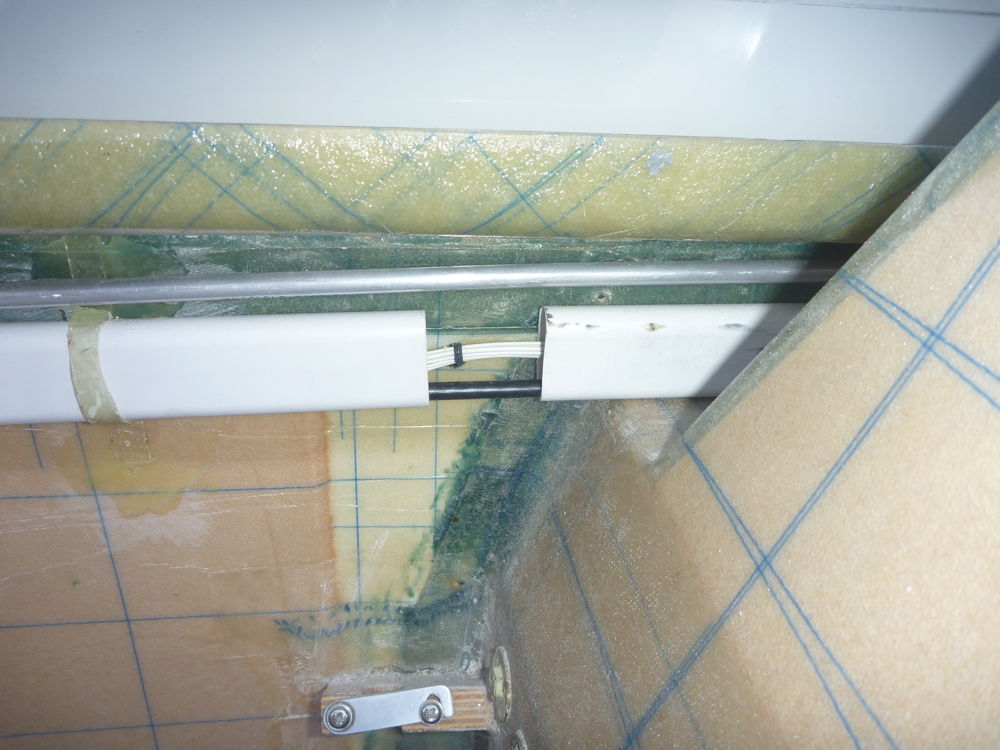

Starboard side of fuselage adjacent to the headrest. The comm antenna coax cable and the transponder loom can be seen passing between the 2 conduits.


comm antenna coax fitting

comm antenna coax fitting: 2020-07-30 Panasonic DMC-FT1

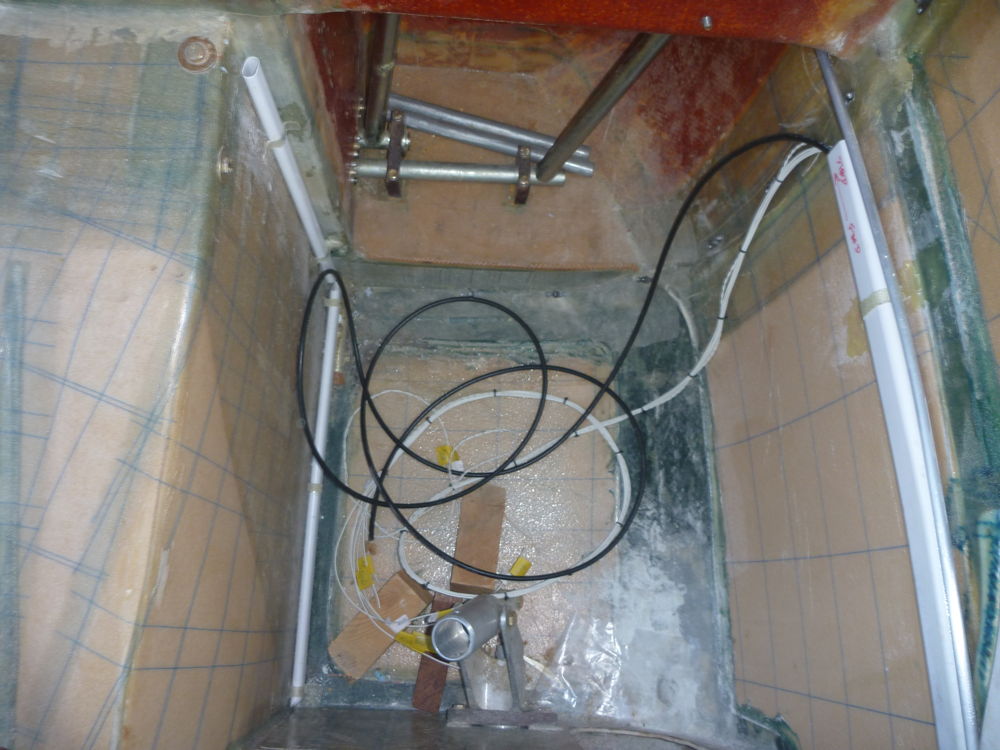

The coax cable for the comm antenna has been drawn into the starboard-side conduit, leaving plenty of spare length in the cockpit for termination.


comm antenna coax fitting

comm antenna coax fitting: 2020-07-30 Panasonic DMC-FT1

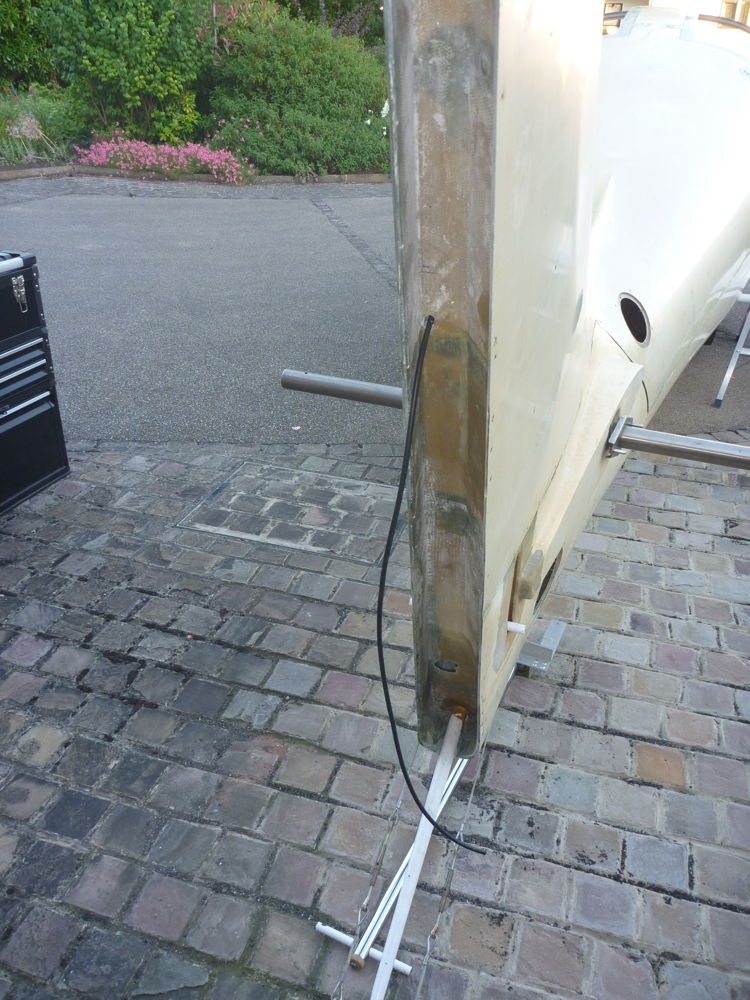

The coax cable for the comm antenna has been drawn through the starboard-side conduit and the fin, leaving plenty of spare length at the sternpost for termination.
