cockpit camera mount
|
|
cockpit camera mount |
|
|
 |
Navigation & Acknowledgements |
6 pictures on this page - scroll down to see the rest
camera mount parts: 2021-05-04 Panasonic DMC-FT1

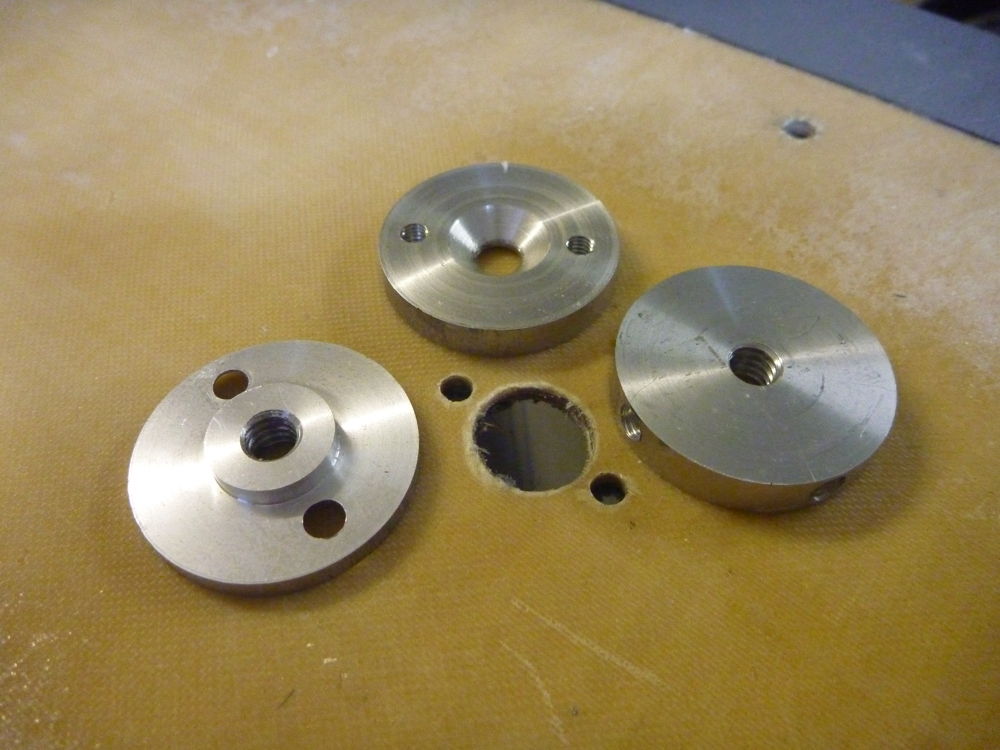

The machined aluminium parts of the camera mount, with the fitting holes in the overhead panel.
camera mount fitting: 2021-05-04 Panasonic DMC-FT1

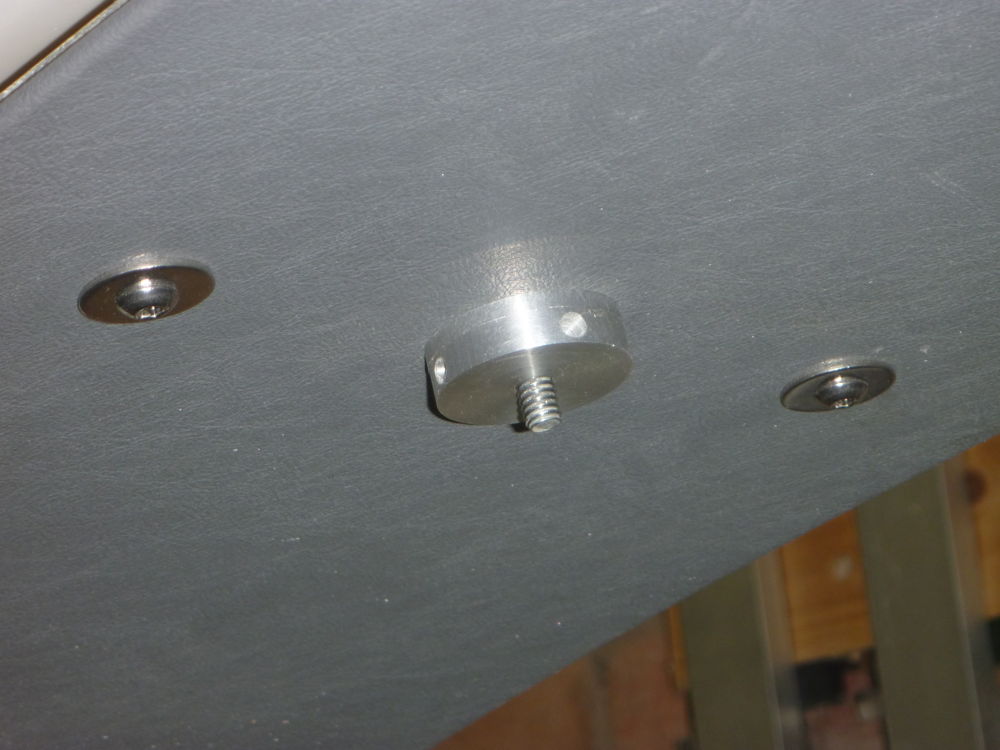

The upper part of the camera mount fitted to the overhead panel. The central 1/4 inch BSW screw is epoxied in place. The M4 screws prevent rotation of the mount relative to the panel.
camera mount on overhead panel: 2021-05-04 Panasonic DMC-FT1

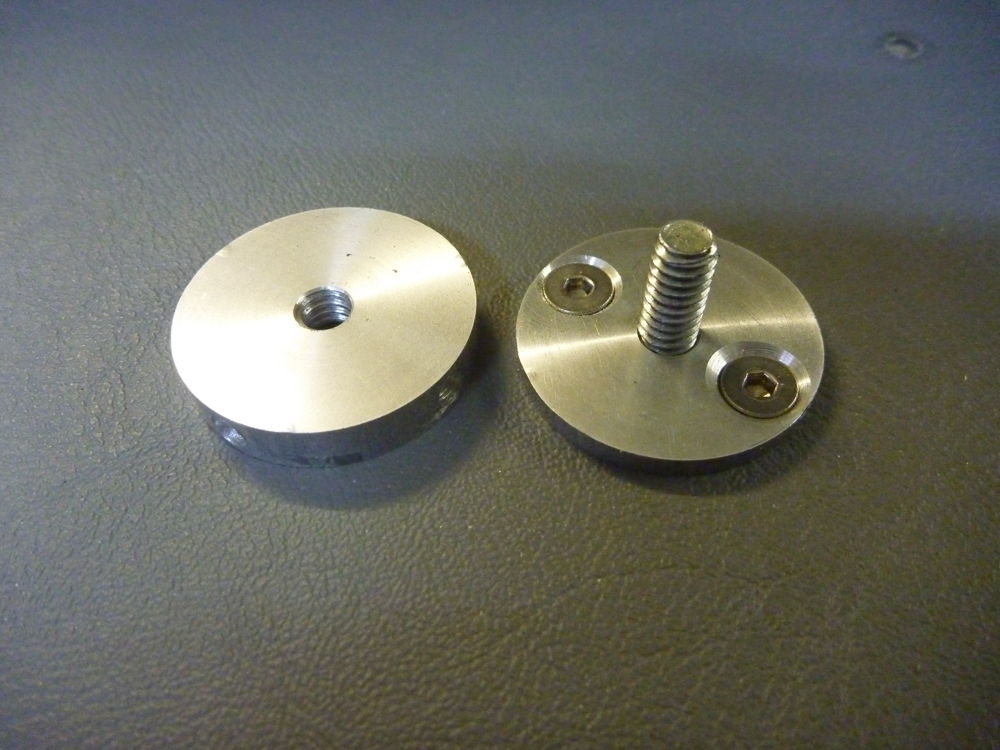

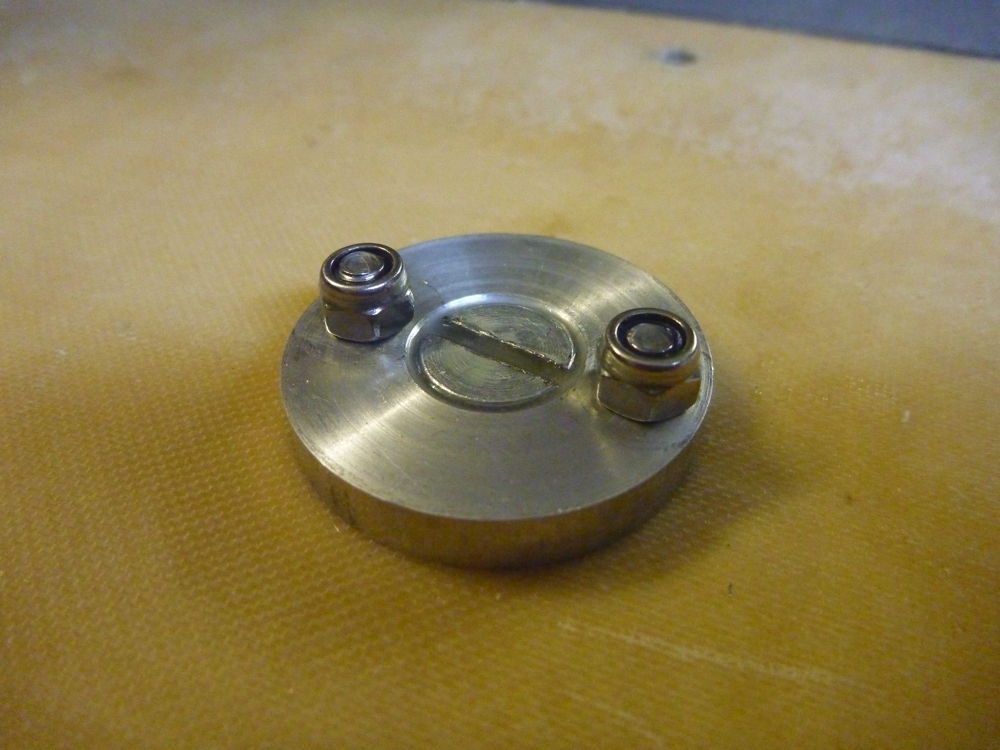

The lower parts of the camera mount. The disc on the left is the locking ring. It has 4 holes 4mm diameter x 8mm deep around the circumference for tightening with a lever.
camera mount on overhead panel: 2021-05-04 Panasonic DMC-FT1
The camera mount in position on the overhead panel, with the locking ring loosely in place.
camera mount on overhead panel: 2021-05-05 Panasonic DMC-FT1

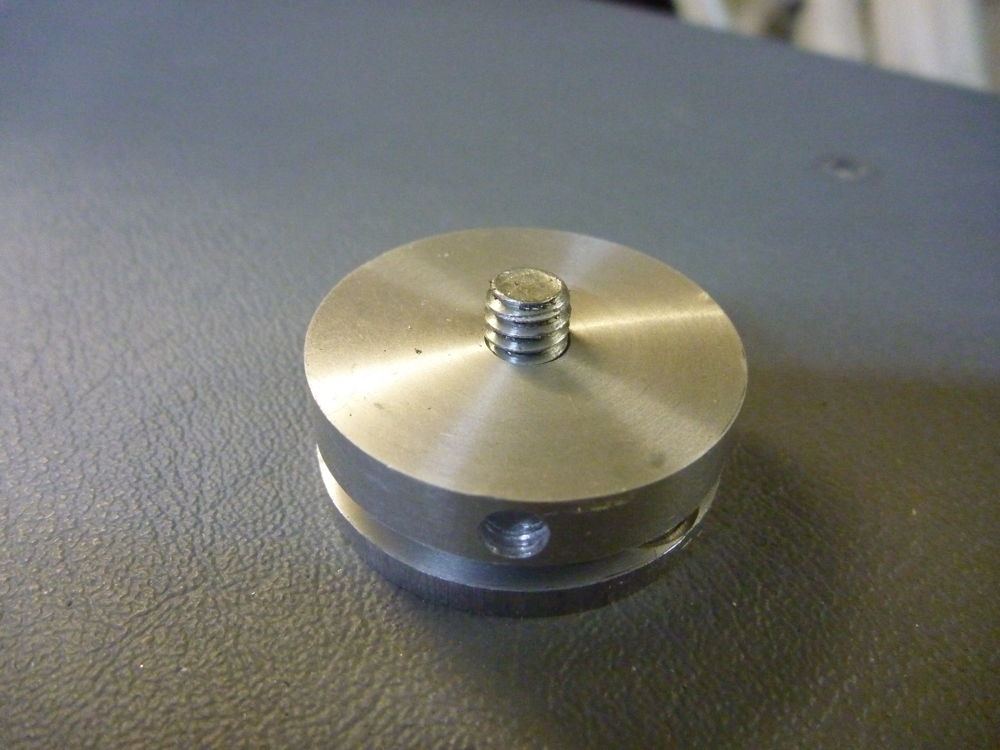

The camera mount in position on the overhead panel, with the locking ring screwed up against the main part.
camera mounted on overhead panel: 2021-05-04 Apple iPhone 8

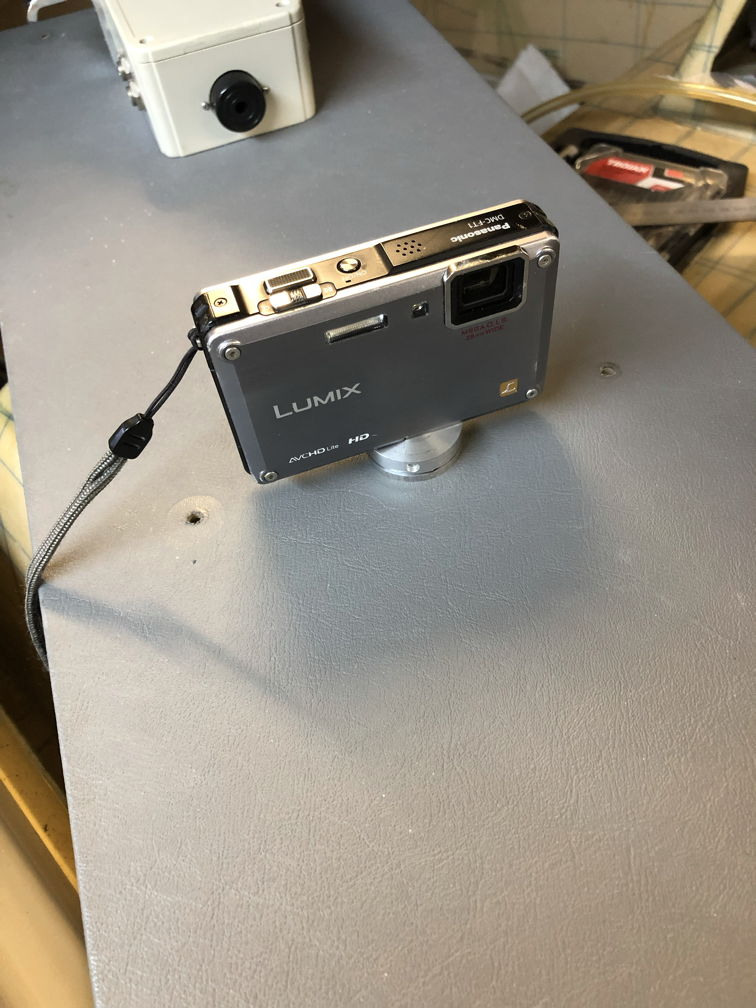

Trial fit of my Lumix camera on the camera mount, before re-fitting the overhead panel to the cockpit roof.
