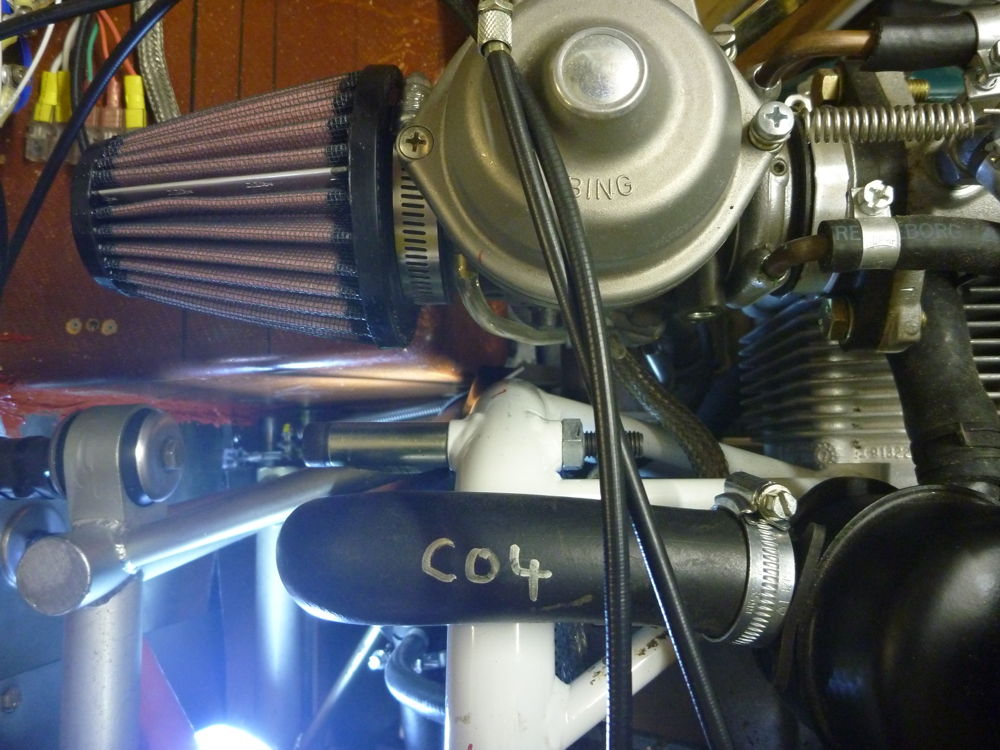

C04 re-routed: 2020-01-25 Panasonic DMC-FT1
The water hose C04 between the expansion tank and the port side of the radiator. It has been re-routed inside the engine mount in order to clear the carburettor air filter.

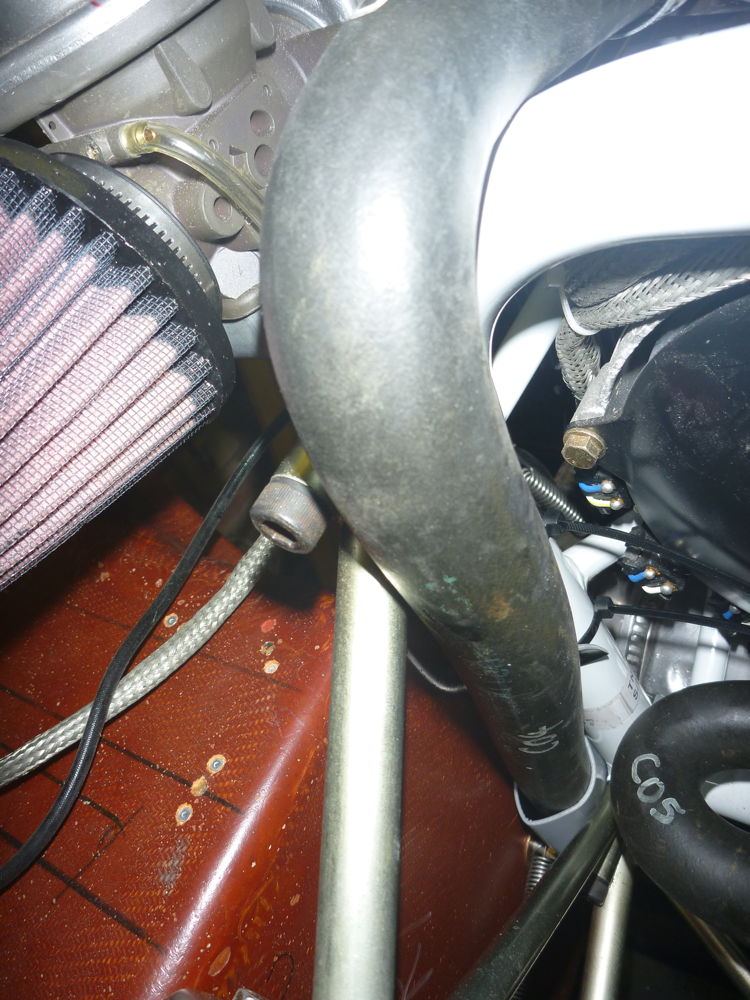

C04 re-routed: 2020-01-25 Panasonic DMC-FT1
The water hose C04 between the expansion tank and the port side of the radiator. It has been re-routed inside the engine mount in order to clear the carburettor air filter. Near the bottom right-hand corner of the picture you can see the piece of cowl-saver sheet surrounding the hose to protect it from abrasion with the rudder return spring anchor.
