slot in aft baffle for C04 water hose

4 pictures on this page - scroll down to see the rest


seal for aft baffle slot for C04

seal for aft baffle slot for C04: 2020-01-27 Panasonic DMC-FT1

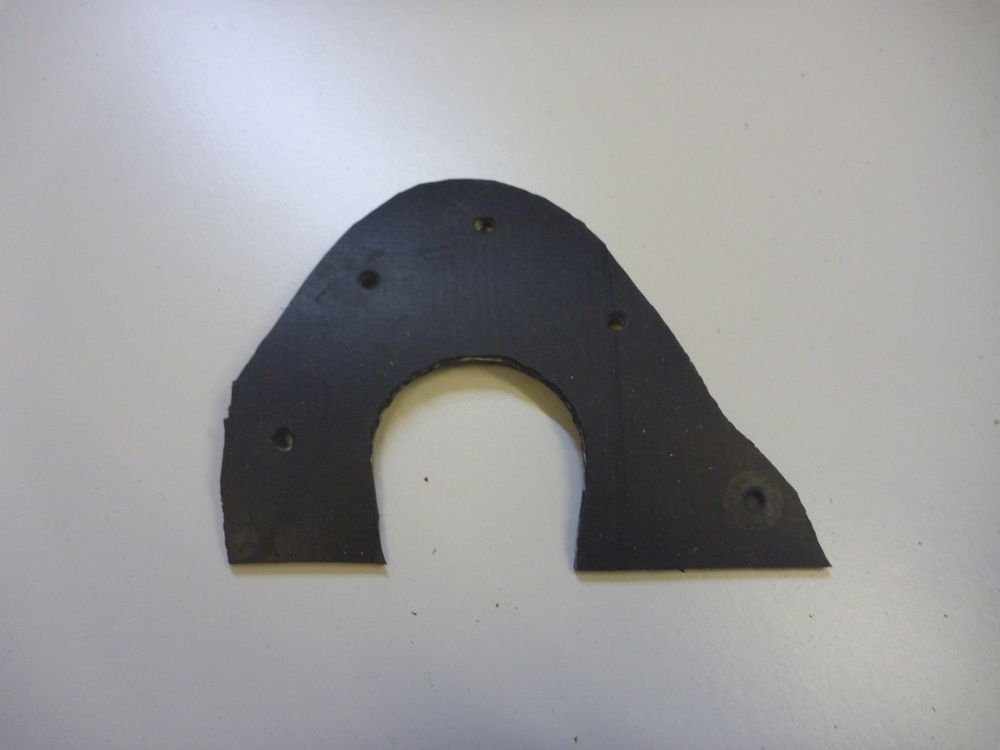

Firewall fabric piece for the notch in the aft baffle to accommodate the re-positioned C04 water hose.


aft baffle slot for C04

aft baffle slot for C04: 2020-01-27 Panasonic DMC-FT1

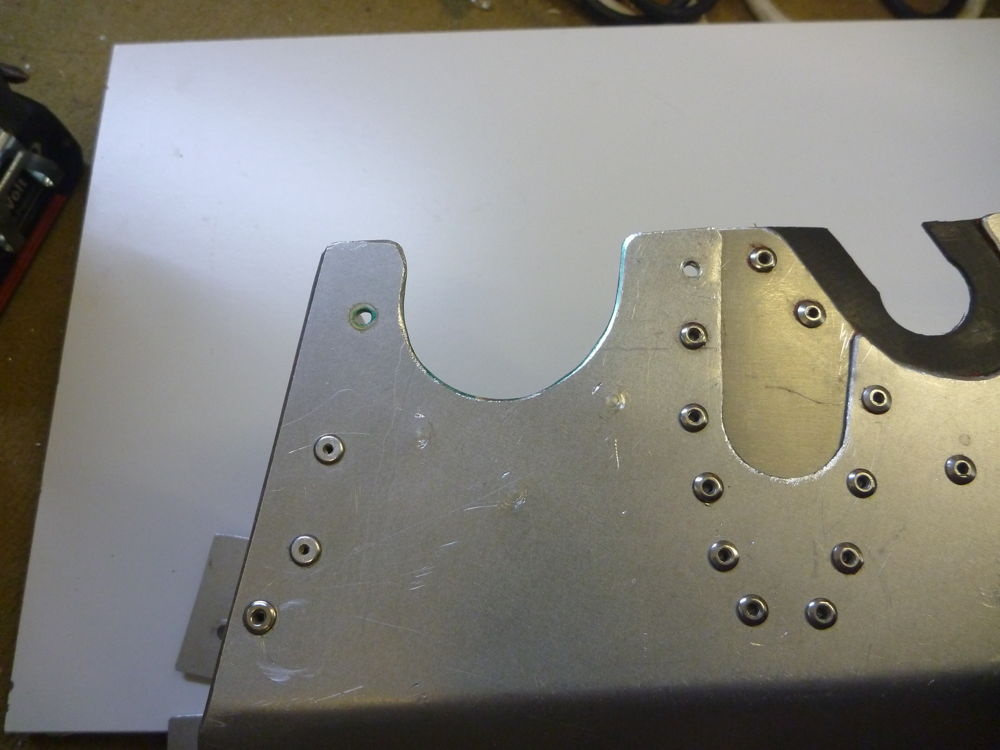

The notch cut in the aft baffle to accommodate the re-positioned C04 water hose.


aft baffle slot for C04

aft baffle slot for C04: 2020-01-27 Panasonic DMC-FT1

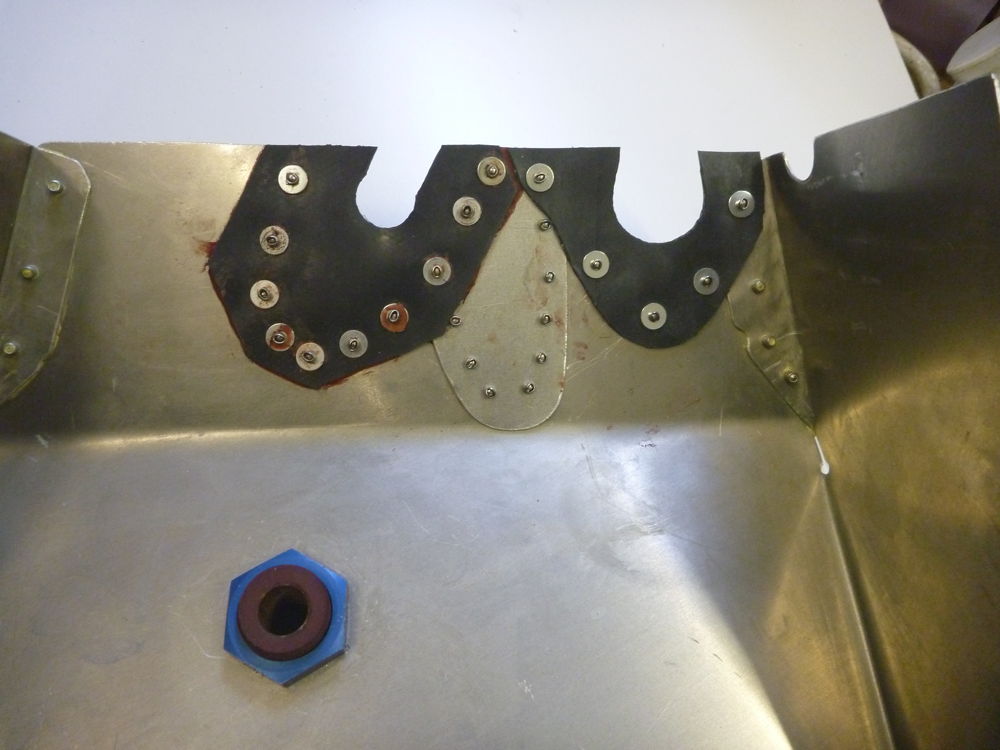

The notch cut in the aft baffle to accommodate the re-positioned C04 water hose, with firewall fabric fitted.


aft baffle slot for C04

aft baffle slot for C04: 2020-01-27 Panasonic DMC-FT1

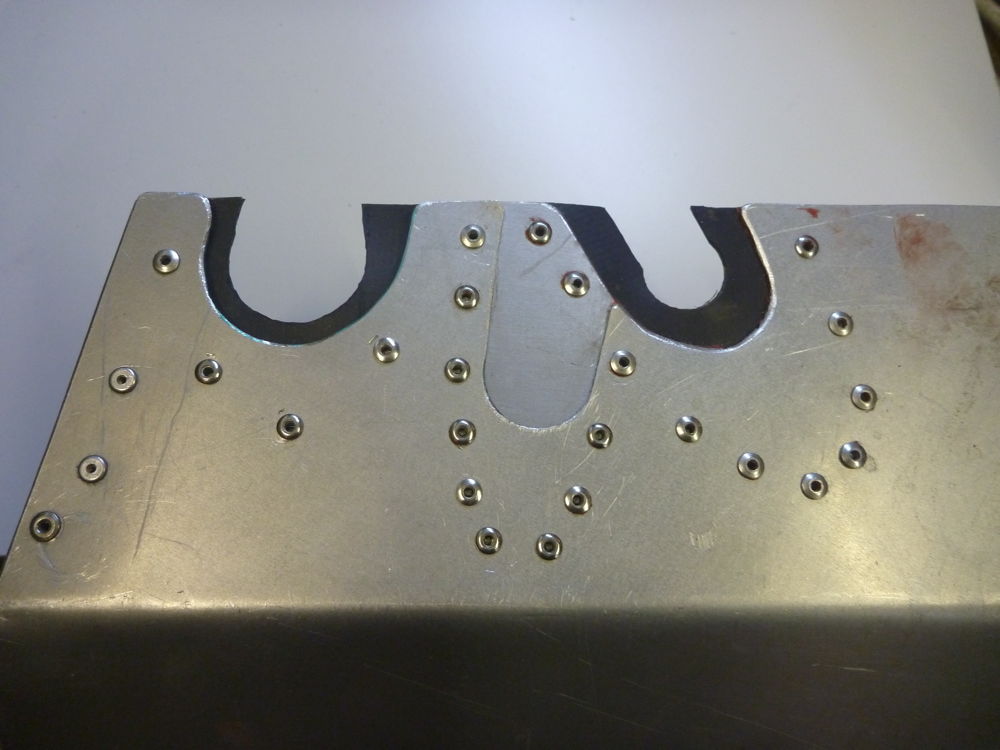

The notch cut in the aft baffle to accommodate the re-positioned C04 water hose, with firewall fabric fitted.
